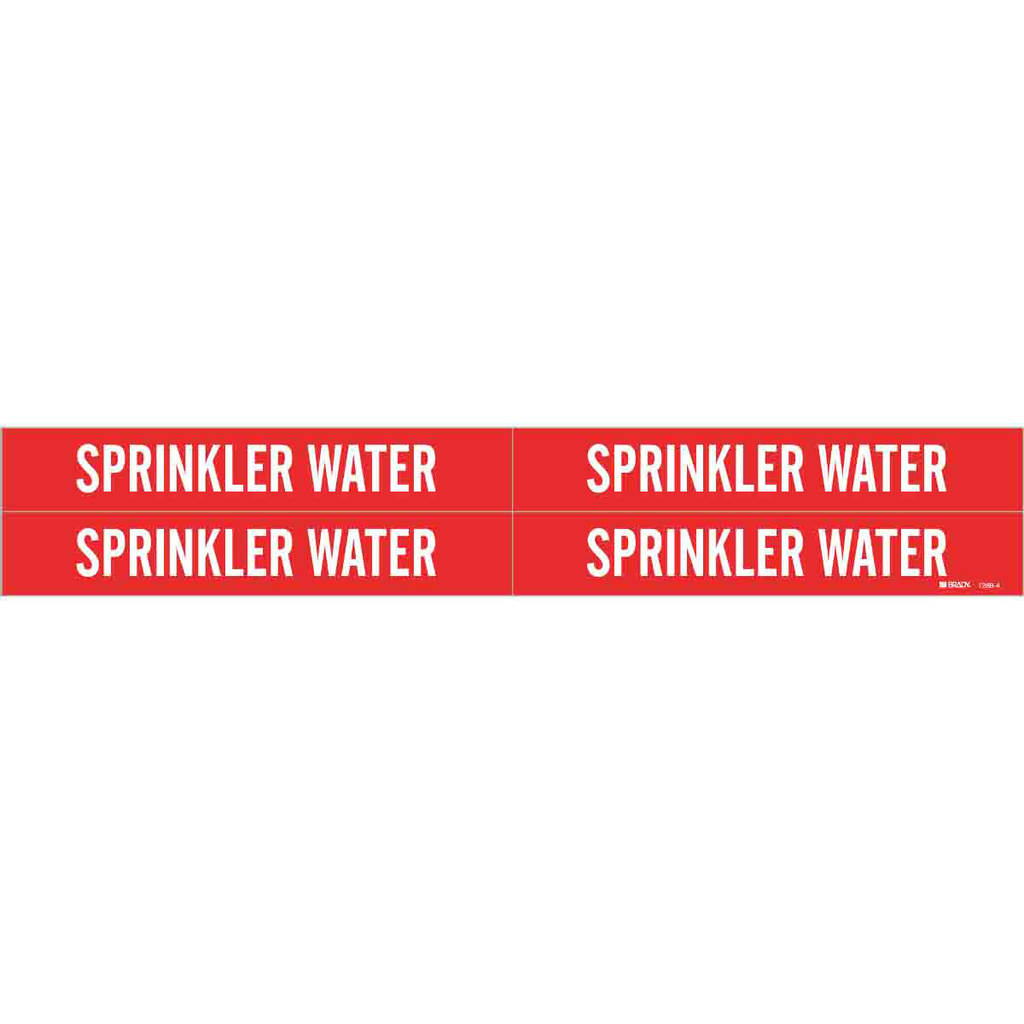

BRADY 7269-4 Pipe Mkr,B946,S-4,Red,

Features

• Banding each end of a pipe marker with directional flow arrow tape is recommended
• Style 4 pipe markers measure 1-1/8 in. x 7 in., comes with four markers per card and fit pipe diameter 3/4 in. to 2-3/8 in.
• High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
• Good chemical, oil and water resistance

Specifications

• Applications: Pipe and Valve Marking
• Brand Name: Brady®
• Color: White on Red
• Compatible Surface Types: General
• Enables Industry Compliance: ANSI A13.1-2007
• Finish: Gloss
• Language: English
• Pipe Marker Mounting Style: Self-Adhesive
• Pipe Marker Style: 4
• Pre-Printed Areas on Label: Pipe Contents
• Primary Noun, Basic Function: Pipe Marker
• Printer and Label Applications: General Identification; Pipe Marker
• Quantity per Card or Sheet: 4
• Reflective Type: Non-Reflective
• Self-Adhesive Pipe Marker Format: Die-Cut on Cards
• Text Legend: SPRINKLER WATER
• Adhesive Type: Permanent Acrylic
• Brady Material Number: B-946
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
• Material: Vinyl
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Water-Resisitant
• SAP B-Number: B-946
• Average Outdoor Durability: 8 to 10 Years
• Character Height (in/ft/yd): 0.75 in
• Dimensions: 1.125 in H x 7 in W
• Dimensions (Metric): 28.6 mm H
• Dimensions 2: 1.125 in H x 7 in W
• Height (in/ft/yd): 1.125 in
• Height (mm/cm/m): 28.6 mm
• Maximum Outside Pipe Diameter (in/ft/yd): 2.375 in
• Maximum Outside Pipe Diameter (mm/cm/m): 60.33 mm
• Maximum Service Temperature °C: 82 °C
• Maximum Service Temperature °F: 180 °F
• Minimum Application Temperature °C: -18 °C
• Minimum Application Temperature °F: 0 °F
• Minimum Outside Pipe Diameter (in/ft/yd): 0.75 in
• Minimum Outside Pipe Diameter (mm/cm/m): 19.05 mm
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Overall Size: Fits Pipes 0.75" Dia. Thru 2.375in Dia.
• Sign Size-General: 1.125 in x 7 in
• Size: 4
• Thickness (in/ft/yd): 0.004 in
• Thickness (mm/cm/m): 0.102 mm
• Width (in/ft/yd): 7 in
• Width (mm/cm/m): 177.8 mm

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
