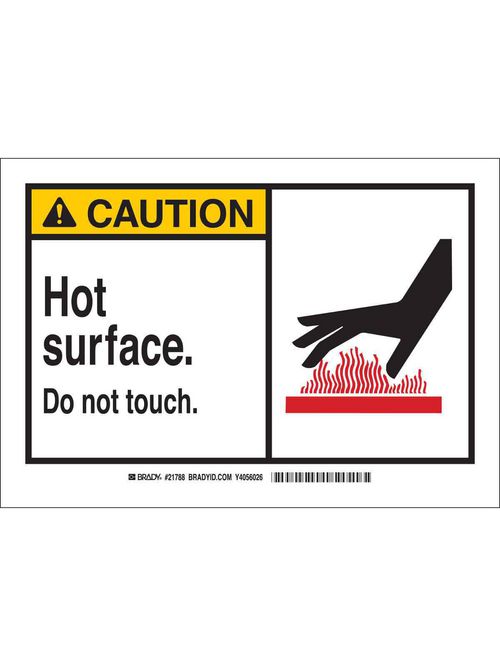

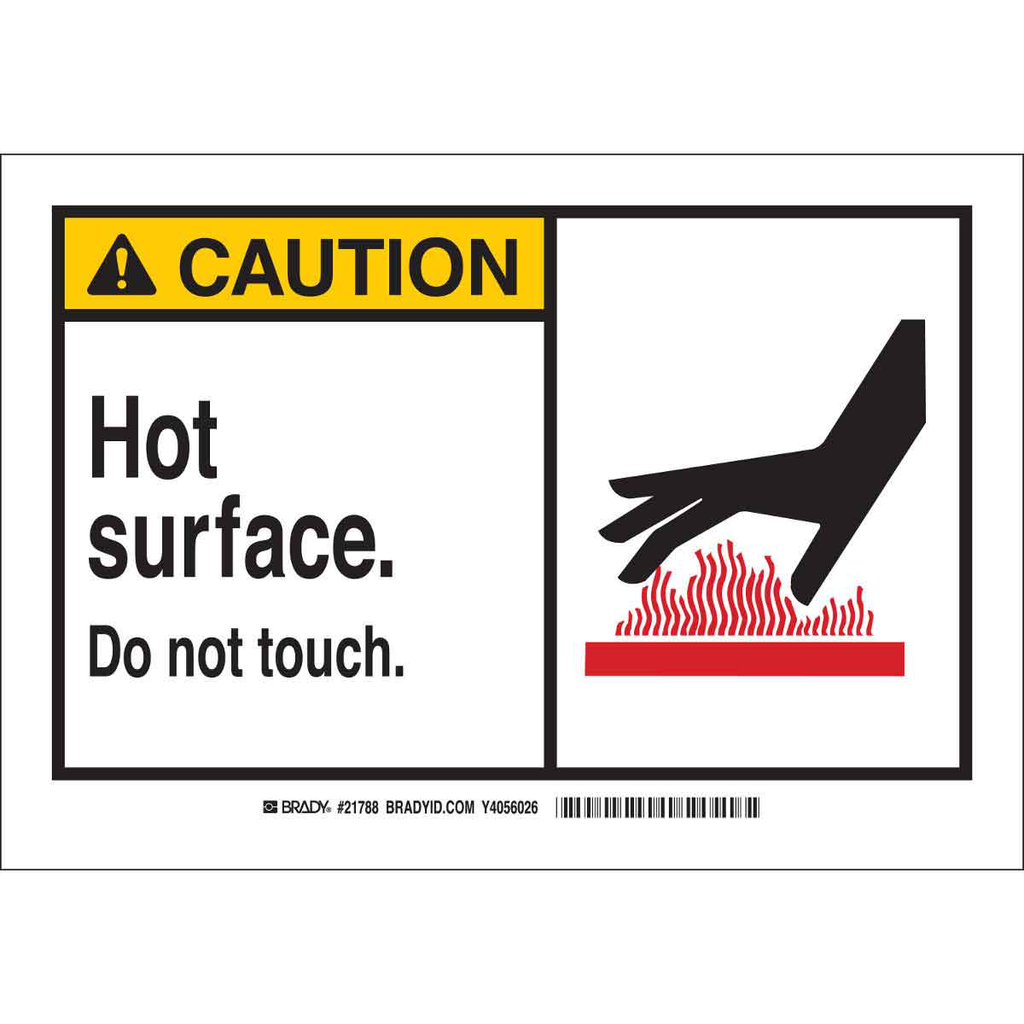

BRADY 83916 Lbl,B302,5x3.5,Bk/Rd/Yw
$2.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 83916
North Coast Part # 340114

Features

  • B-302 is particularly suited for outdoor applications, and in harsh environments where excellent abrasion and chemical resistance is required
  • Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
  • Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
  • Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes

Specifications

  • Brand Name: Brady®
  • Calculated Sign Shape: Horizontal Rectangle
  • Color: Black/Red on Yellow
  • Compatible Surface Types: Cold; High Surface Energy
  • Enables Industry Compliance: ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
  • Header: CAUTION
  • Image or Text: Image & Text
  • Language: English
  • Meets Industry Standards - Signs: ANSI Z53.1-1967
  • Mounting Type: Self-Adhesive
  • Number of Printed Sides: 1
  • Primary Noun, Basic Function: Label
  • PSPA Photoluminescence Class: Not Illuminated
  • Reflective Type: Non-Reflective
  • Shape: Rectangle
  • Text Legend: HOT SURFACE DO NOT TOUCH
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-302
  • Illumination: Not Illuminated
  • Indoor or Outdoor Use: Outdoor Use
  • Laminated: Laminated
  • Material: Polyester with Polyester Overlaminate
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant
  • SAP B-Number: B-302
  • Depth (in/ft/yd): 0.006 in
  • Depth (mm/cm/m): 0.15 mm
  • Dimensions: 3.5 in H x 5 in W x 0.006 in D
  • Dimensions (Metric): 88.9 mm H x 0.15 mm D
  • Dimensions 2: 3.5 in H x 5 in W
  • Height (in/ft/yd): 3.5 in
  • Height (mm/cm/m): 88.9 mm
  • Maximum Service Temperature °C: 110 °C
  • Maximum Service Temperature °F: 230 °F
  • Minimum Application Temperature °C: -18 °C
  • Minimum Application Temperature °F: 0 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Sign Size: 3.5 in H x 5 in W x 0.006 in D
  • Sign Size-General: 3.5 in x 5 in
  • Thickness (in/ft/yd): 0.01 in
  • Thickness (mm/cm/m): 0.254 mm
  • Width (in/ft/yd): 5 in
  • Width (mm/cm/m): 127 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • EU RoHS Compliance: Pass 2011/65/EU
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447383916
GTiN 00754473839161
Finish Gloss
Width 5 in
Adhesive Type Acrylic
Color Black,Yellow,Red
Type Label
Thickness 0.01 in
Material Polyester
Mounting Type Self-Adhesive
Height 3.5 in
Shape Rectangle
Family Brand Name Brady
Indoor Outdoor Outdoor
Max Operating Temperature 230 degrees F
Min Operating Temperature -40 degrees F
Legend CAUTION HOT SURFACE DO NOT TOUCH
CA Prop65 Warning N
Depth 0.006 in
Max Temperature 230 degrees F
Min Temperature -40 degrees F
