BRADY 86828 Lbl,B302,5x3.5,Mul/Wt,W

Features

• Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
• Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
• Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
• Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)

Specifications

• Brand Name: Brady®
• Calculated Sign Shape: Horizontal Rectangle
• Color: Black/Orange/Red on White
• Compatible Surface Types: Cold; High Surface Energy
• Enables Industry Compliance: ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
• Header: WARNING
• Image or Text: Image & Text
• Language: English
• Mounting Type: Self-Adhesive
• Number of Printed Sides: 1
• Primary Noun, Basic Function: Label
• Printer and Label Applications: General Identification; Safety
• PSPA Photoluminescence Class: Not Illuminated
• Reflective Type: Non-Reflective
• Shape: Rectangle

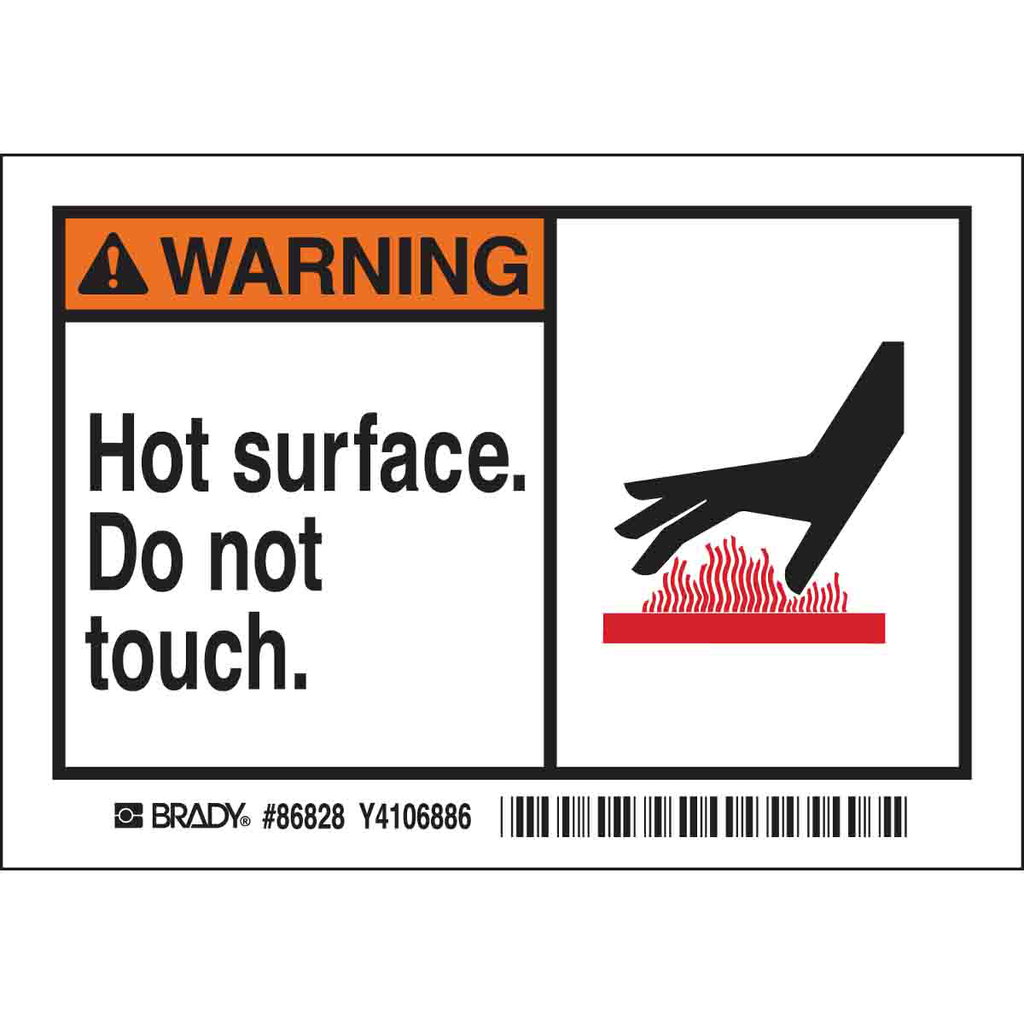

• Text Legend: HOT SURFACE DO NOT TOUCH.
• Adhesive Type: Permanent Acrylic
• Brady Material Number: B-302
• Illumination: Not Illuminated
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Permanent Adhesive Labels
• Laminated: Laminated
• Material: Polyester with Polyester Overlaminate
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant
• SAP B-Number: B-302
• Dimensions: 3.5 in H x 5 in W
• Dimensions (Metric): 88.9 mm H
• Dimensions 2: 3.5 in H x 5 in W
• Height (in/ft/yd): 3.5 in
• Height (mm/cm/m): 88.9 mm
• Maximum Service Temperature °C: 110 °C
• Maximum Service Temperature °F: 230 °F
• Minimum Application Temperature °C: -18 °C
• Minimum Application Temperature °F: 0 °F
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Sign Size: 3.5 in H x 5 in W
• Sign Size-General: 3.5 in x 5 in
• Thickness (in/ft/yd): 0.01 in
• Thickness (mm/cm/m): 0.254 mm
• Width (in/ft/yd): 5 in
• Width (mm/cm/m): 127 mm

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
