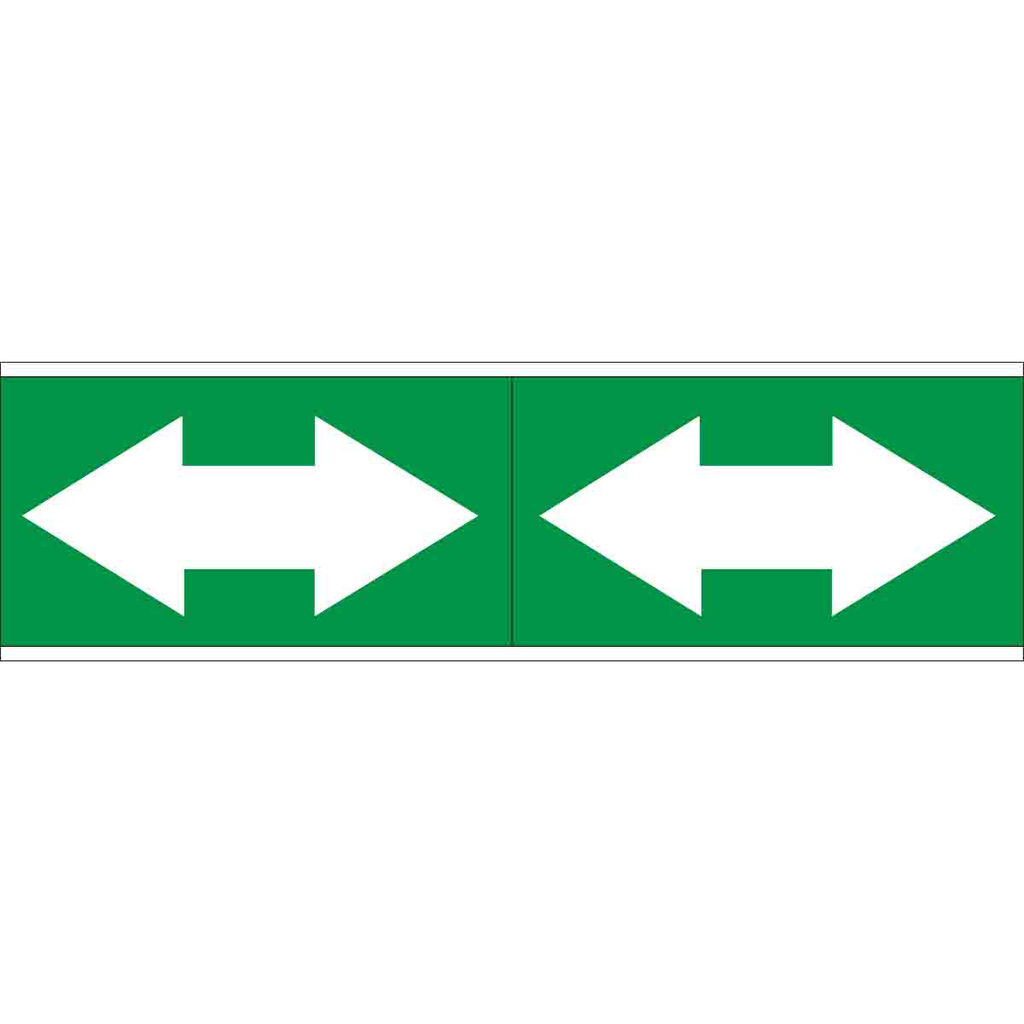

BRADY 93397 Pipe Mkr,B946,12x4,Grn,

Features

• Arrows meets ASME (ANSI) A13.1 Standards when used in conjunction with an appropriate pipemarker
• High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
• Good chemical, oil and water resistance
• Average outdoor durability 8-10 years

Specifications

• Applications: Pipe and Valve Marking
• Arrow Direction: Dual
• Brand Name: Brady®
• Color: White on Green
• Compatible Surface Types: General
• Enables Industry Compliance: ANSI A13.1-2007
• Finish: Gloss
• Pipe Marker Mounting Style: Self-Adhesive
• Pre-Printed Areas on Label: Arrows
• Primary Noun, Basic Function: Pipe Marker
• Printer and Label Applications: General Identification; Pipe Marker
• Reflective Type: Non-Reflective
• Self-Adhesive Pipe Marker Format: Die-Cut on Cards
• Adhesive Type: Permanent Acrylic
• Brady Material Number: B-946
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
• Material: Vinyl
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant
• SAP B-Number: B-946
• Average Outdoor Durability: 8 to 10 Years
• Dimensions: 4 in H x 12 in W
• Dimensions (Metric): 101.6 mm H
• Dimensions 2: 4 in H x 12 in W
• Height (in/ft/yd): 4 in
• Height (mm/cm/m): 101.6 mm
• Maximum Service Temperature °C: 82 °C
• Maximum Service Temperature °F: 180 °F
• Minimum Application Temperature °C: -18 °C
• Minimum Application Temperature °F: 0 °F
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Roll/Tape Size (in/ft/yd): 4 in H x 12 in W
• Sign Size-General: 4 in x 12 in
• Size: 2HV
• Thickness (in/ft/yd): 0.004 in
• Thickness (mm/cm/m): 0.102 mm
• Width (in/ft/yd): 12 in
• Width (mm/cm/m): 30.48 cm

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
