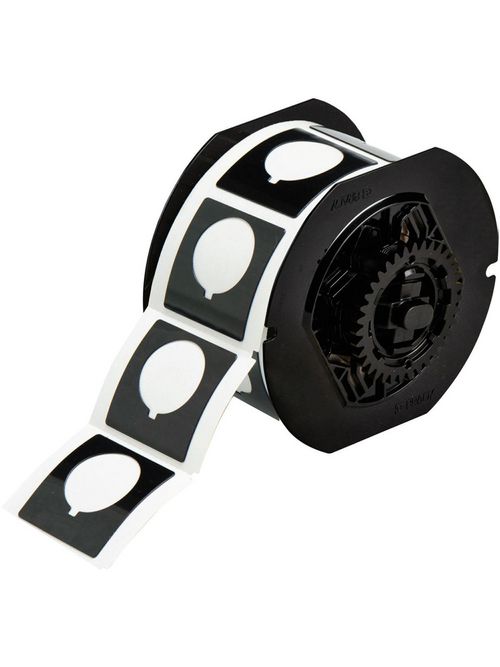

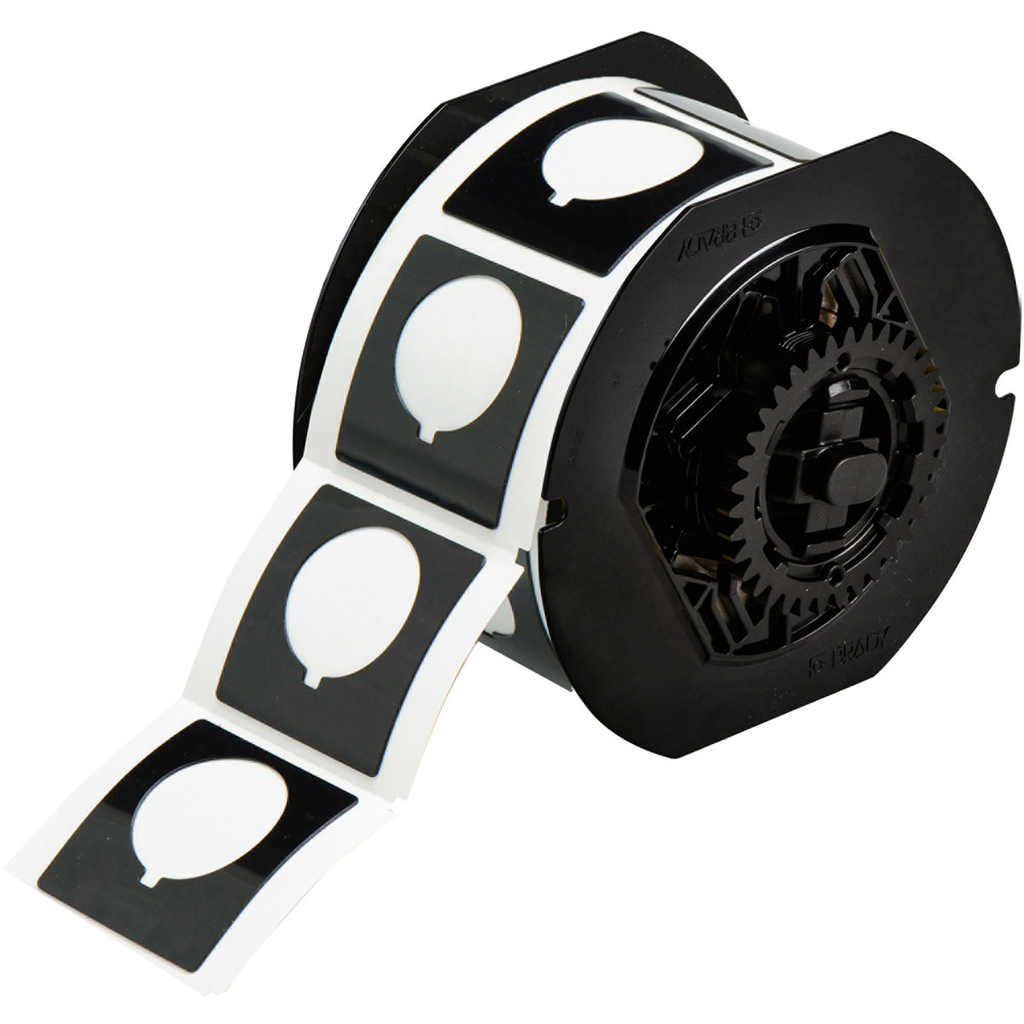

BRADY B30EP-169-593-BK Label,B30,B5
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$171.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # B30EP-169-593-BK
North Coast Part # 828087

Features

  • Can be used as rating and serial plates using alphanumerics that require nameplate quality
  • Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
  • UL approved
  • Service temperature of -4 to 212° F (-20 to 100° C)

Specifications

  • Applications: Electrical Labeling
  • Brand Name: Brady®
  • Color: Black
  • Compatible Surface Types: High Surface Energy
  • Corner Type: Rounded Corners
  • Diagram: Icon 22 (keyhole)
  • Enables Industry Compliance: RoHS Compliant; UL Recognized
  • Finish: Gloss
  • For Use with Printer: BBP®30 Label Printer; BBP®31 Sign and Label Printer; BBP®33 Label Printer; BBP®35 Multi-Color Sign and Label Printer; BBP®37 Color & Cut Sign and Label Printer; BradyPrinter i3300; BradyPrinter S3000; BradyPrinter S3100
  • Hole Shape: Circle with Key Hole
  • Label/Media Format: Roll
  • Manufacturer Part Number: B30EP-169-593-BK
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Electrical; General Identification; Inspection Repair; Rating & Name Plates
  • Printer Compatibility: S3000; i3300; S3100; BBP30; BBP31; BBP33; BBP35; BBP37
  • Printer Compatibility (Print): BBP35; BBP37; i3300; S3000; S3100
  • Quantity per Roll: 190
  • Quantity per Row: 1
  • Recommended Ribbon: B30-R4400-WT
  • Ribbon Series: B30-R4400-WT
  • Shape: Rectangle
  • Software Compatibility: Brady Workstation, LabelMark, MarkWare
  • Suggested Ribbon Series: R4400; R6000 Halogen Free
  • Total Qty per Pack: 190 Label(s) / Box
  • Total Quantity: 190
  • Trade Name: B30
  • Adhesive Type: Permanent Acrylic - Foam Backed
  • Brady Material Number: B-593
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyester
  • Material Properties: Raised
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
  • SAP B-Number: B-593
  • Average Outdoor Durability: 3 Years
  • Dimensions: 1.8 in H x 1.8 in W
  • Dimensions (Metric): 45.72 mm W x 45.72 mm H
  • Dimensions 2: 1.8 in H x 1.8 in W
  • Height (in/ft/yd): 1.8 in
  • Height (mm/cm/m): 45.72 mm
  • Hole Inside Diameter (in/ft/yd): 1.2 in
  • Hole Inside Diameter (mm/cm/m): 30.50 mm
  • Label/Tape Size (in/ft/yd): 1.8 in H x 1.8 in W
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Service Temperature °C: -20 °C
  • Minimum Service Temperature °F: -4 °F
  • Sign Size-General: 1.8 in x 1.8 in
  • Size - Width (mm): 45.72 mm
  • Thickness (in/ft/yd): 0.0256 in
  • Thickness (mm/cm/m): 0.65 mm
  • Vertical Repeat: 2 in
  • Vertical Repeat (mm): 50.80 mm
  • Web Width (mm/cm/m): 63.50 mm
  • Width (in/ft/yd): 1.8 in
  • Width (mm/cm/m): 45.72 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447321154
GTiN 00754473211547
Finish Gloss
Width 1.8 in
Adhesive Type Permanent Acrylic, Foam Adhesive
Color Black
Type Unprinted, Thick Raised Profile Rectangular, Roll
Thickness 0.0256 in
Material B-593 Polyester
Applications For Engrave Plate Substitutes for Panel ID, Outdoor use
Height 1.8 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Indoor Outdoor Outdoor
Max Operating Temperature 212 degrees F
Min Operating Temperature -4 degrees F
Sub Brand B30 Series
CA Prop65 Warning N
Length 1.8 in
Temperature Rating -4 to 212 F
Max Temperature 212 degrees F
Standard Packaging Qty 190/Roll
Min Temperature -4 degrees F
Used With Powder Coated, Smooth, BBP 30 Label Printer, BBP 31 Sign and Label Printer, BBP 33 Thermal Transfer Label Printer, BBP 35 Multicolor Sign and Label Printer, BBP 37 Color and Cut Sign and Label Printer
