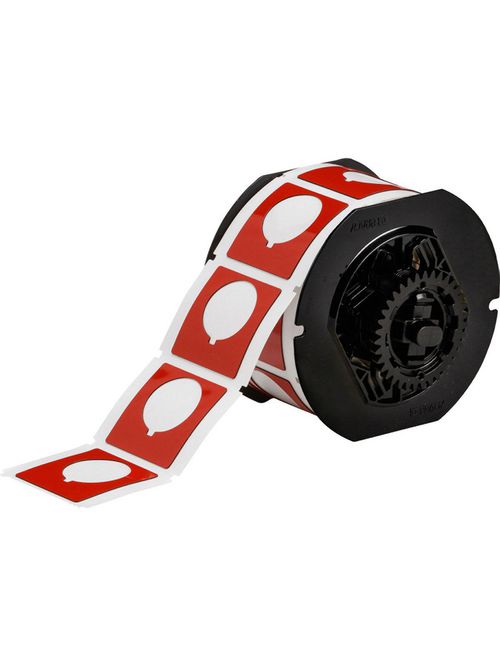

BRADY B30EP-169-593-RD Label,B30,B5

Features

• Can be used as rating and serial plates using alphanumerics that require nameplate quality
• Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
• UL approved
• Service temperature of -4 to 212° F (-20 to 100° C)

Specifications

• Applications: Electrical Labeling
• Brand Name: Brady®
• Color: Red
• Compatible Surface Types: High Surface Energy
• Corner Type: Rounded Corners
• Diagram: Icon 22 (keyhole)
• Enables Industry Compliance: RoHS Compliant; UL Recognized
• Finish: Gloss
• For Use with Printer: BBP®30 Label Printer; BBP®31 Sign and Label Printer; BBP®33 Label Printer; BBP®35 Multi-Color Sign and Label Printer; BBP®37 Color & Cut Sign and Label Printer; BradyPrinter i3300; BradyPrinter S3000; BradyPrinter S3100
• Hole Shape: Circle with Key Hole
• Label/Media Format: Roll
• Manufacturer Part Number: B30EP-169-593-RD
• Primary Noun, Basic Function: Label
• Print Technology: Thermal Transfer
• Printer and Label Applications: Electrical; General Identification; Inspection Repair; Rating & Name Plates
• Printer Compatibility: S3000; i3300; S3100; BBP30; BBP31; BBP33; BBP35; BBP37
• Printer Compatibility (Print): BBP35; BBP37; i3300; S3000; S3100
• Quantity per Roll: 190
• Quantity per Row: 1
• Recommended Ribbon: B30-R4400-WT
• Ribbon Series: B30-R4400-WT
• Shape: Rectangle
• Software Compatibility: Brady Workstation, LabelMark, MarkWare
• Suggested Ribbon Series: R4400; R6000 Halogen Free
• Total Qty per Pack: 190 Label(s) / Box
• Total Quantity: 190
• Trade Name: B30
• Adhesive Type: Permanent Acrylic - Foam Backed
• Brady Material Number: B-593
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
• Material: Polyester
• Material Properties: Raised
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
• SAP B-Number: B-593
• Average Outdoor Durability: 3 to 5 Years
• Dimensions: 1.8 in H x 1.8 in W
• Dimensions (Metric): 45.72 mm W x 45.72 mm H
• Dimensions 2: 1.8 in H x 1.8 in W
• Height (in/ft/yd): 1.8 in
• Height (mm/cm/m): 45.72 mm
• Hole Inside Diameter (in/ft/yd): 1.2 in
• Hole Inside Diameter (mm/cm/m): 30.50 mm
• Label/Tape Size (in/ft/yd): 1.8 in H x 1.8 in W
• Maximum Service Temperature °C: 100 °C
• Maximum Service Temperature °F: 212 °F
• Minimum Service Temperature °C: -20 °C
• Minimum Service Temperature °F: -4 °F
• Sign Size-General: 1.8 in x 1.8 in
• Size - Width (mm): 45.72 mm
• Thickness (in/ft/yd): 0.0256 in
• Thickness (mm/cm/m): 0.65 mm
• Vertical Repeat: 2 in
• Vertical Repeat (mm): 50.80 mm
• Web Width (mm/cm/m): 63.50 mm
• Width (in/ft/yd): 1.8 in
• Width (mm/cm/m): 45.72 mm

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): Unavailable
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
