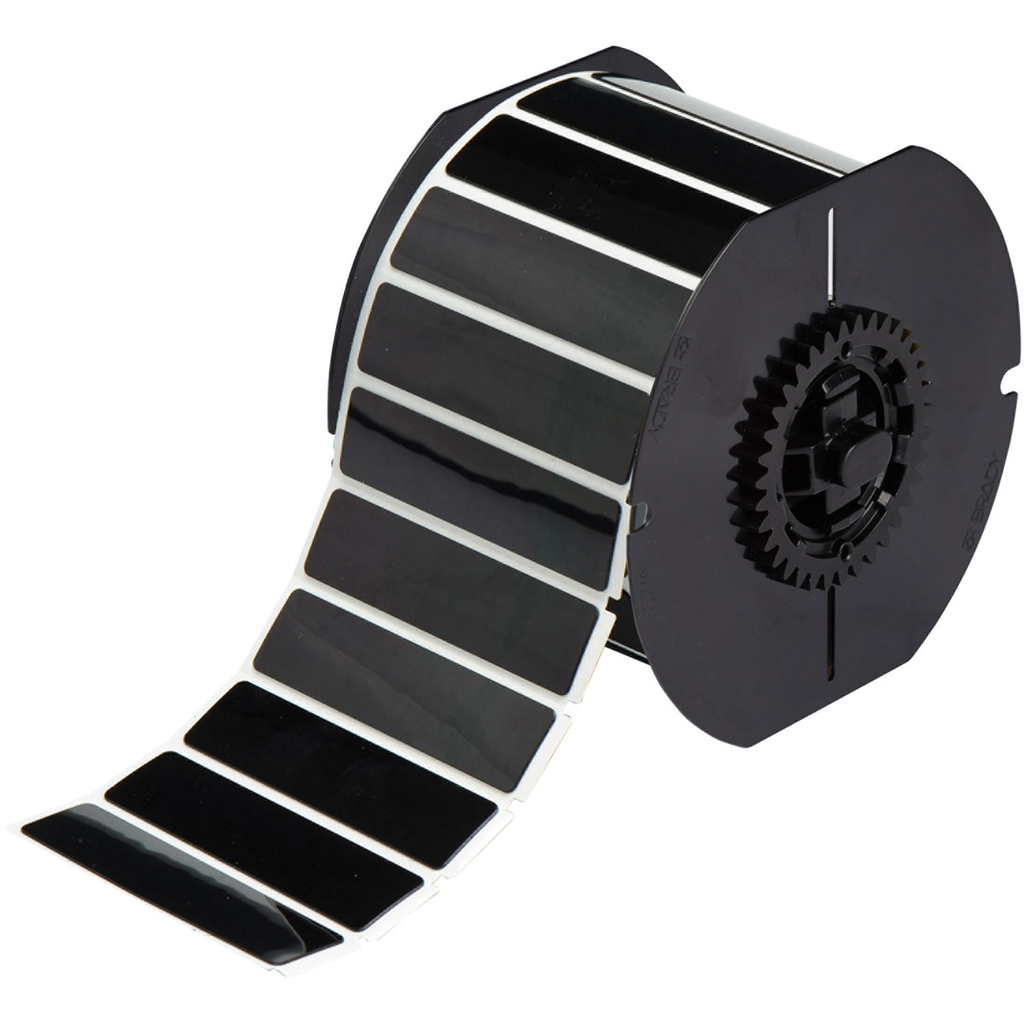

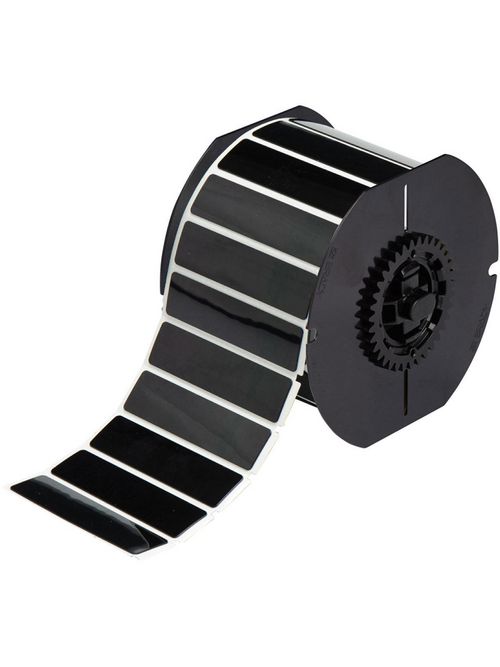

BRADY B30EP-175-593-BK Label,B30,B5
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$282.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # B30EP-175-593-BK
North Coast Part # 828100

Features

  • Can be used as rating and serial plates using alphanumerics that require nameplate quality
  • Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
  • UL approved
  • Service temperature of -4 to 212° F (-20 to 100° C)

Specifications

  • Applications: Electrical Labeling
  • Brand Name: Brady®
  • Color: Black
  • Compatible Surface Types: High Surface Energy
  • Corner Type: Rounded Corners
  • Diagram: Icon 3 (triangle)
  • Enables Industry Compliance: RoHS Compliant; UL Recognized
  • Finish: Gloss
  • For Use with Printer: BBP®30 Label Printer; BBP®31 Sign and Label Printer; BBP®33 Label Printer; BBP®35 Multi-Color Sign and Label Printer; BBP®37 Color & Cut Sign and Label Printer; BradyPrinter i3300; BradyPrinter S3000; BradyPrinter S3100
  • Label/Media Format: Roll
  • Manufacturer Part Number: B30EP-175-593-BK
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Electrical; General Identification; Inspection Repair; Rating & Name Plates
  • Printer Compatibility: S3000; i3300; S3100; BBP30; BBP31; BBP33; BBP35; BBP37
  • Printer Compatibility (Print): BBP35; BBP37; i3300; S3000; S3100
  • Quantity per Roll: 375
  • Quantity per Row: 1
  • Recommended Ribbon: B30-R4400-WT
  • Ribbon Series: B30-R4400-WT
  • Shape: Rectangle
  • Software Compatibility: Brady Workstation, LabelMark, MarkWare
  • Suggested Ribbon Series: R4400; R6000 Halogen Free
  • Total Qty per Pack: 375 Label(s) / Box
  • Total Quantity: 375
  • Trade Name: B30
  • Adhesive Type: Permanent Acrylic - Foam Backed
  • Brady Material Number: B-593
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyester
  • Material Properties: Raised
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
  • SAP B-Number: B-593
  • Average Outdoor Durability: 3 Years
  • Dimensions: 0.75 in H x 3 in W
  • Dimensions (Metric): 76.20 mm W x 19.05 mm H
  • Dimensions 2: 0.75 in H x 3 in W
  • Height (in/ft/yd): 0.75 in
  • Height (mm/cm/m): 19.05 mm
  • Label/Tape Size (in/ft/yd): 0.75 in H x 3 in W
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Service Temperature °C: -20 °C
  • Minimum Service Temperature °F: -4 °F
  • Sign Size-General: 0.75 in x 3 in
  • Size - Width (mm): 76.20 mm
  • Thickness (in/ft/yd): 0.0256 in
  • Thickness (mm/cm/m): 0.65 mm
  • Vertical Repeat: 1 in
  • Vertical Repeat (mm): 25.40 mm
  • Web Width (mm/cm/m): 82.60 mm
  • Width (in/ft/yd): 3 in
  • Width (mm/cm/m): 76.2 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447321126
GTiN 00754473211264
Finish Gloss
Width 3 in
Adhesive Type Permanent Acrylic, Foam Adhesive
Color Black
Type Abrasion, Chemical, Corrosion & Humidity Resistant, Rectangular
Thickness 0.0256 in
Material Polyester
Applications For Engrave Plate Substitutes for Panel ID, Outdoor use
Height 0.75 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Indoor Outdoor Outdoor
Max Operating Temperature 212 degrees F
Min Operating Temperature -4 degrees F
Sub Brand B30 Series
CA Prop65 Warning N
Length 3/4 in
Temperature Rating -4 to 212 F
Max Temperature 212 degrees F
Standard Packaging Qty 375/Pack
Min Temperature -4 degrees F
Used With Powder Coated and Smooth Surfaces, BBP 30 Label Printer, BBP 31 Sign and Label Printer, BBP 33 Label Printer, BBP 35 Multi-Color Sign and Label Printer, BBP 37 Color and Cut Sign and Label Printer, Thermal Transfer Printer
