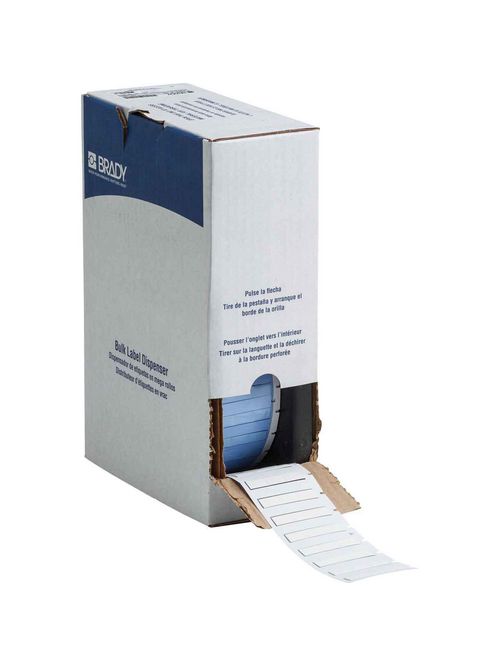

BRADY BM71-187-175-342-3 Marker,BMP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$621.09/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # BM71-187-175-342-3
North Coast Part # 761039

Features

  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Bulk Part: Bulk Part
  • Color: White
  • Diagram: Icon 14 (v)
  • Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
  • Finish: Matte
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer; BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Bulk Roll
  • Max. Lines of Text: 3
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printable Sides: Single-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
  • Printer Compatibility (Print): M611; BMP61; BMP71
  • Quantity per Roll: 3000
  • Quantity per Row: 3
  • Recommended Ribbon: M71-R6600
  • Ribbon Series: R4300
  • Shape: Rectangle
  • Shrink Ratio: 3:1
  • Suggested Ribbon Series: R4300; R4502S; R5000; R6600; R6700
  • Total Qty per Pack: 3000 Sleeve(s) / Box
  • Total Quantity: 3000
  • Trade Name: BMP®71 PermaSleeve®
  • Brady Material Number: B-342
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-342
  • Diameter as Supplied (in/ft/yd): 0.187 in
  • Diameter as Supplied (mm/cm/m): 4.8 mm
  • Dimensions: 0.335 in H
  • Dimensions (Metric): 14.94 mm W x 8.50 mm H
  • Dimensions 2: 0.335 in H
  • Height (in/ft/yd): 0.335 in
  • Height (mm/cm/m): 8.50 mm
  • Maximum Service Temperature °C: 135 °C
  • Maximum Service Temperature °F: 275 °F
  • Maximum Wire Diameter (in/ft/yd): 0.15 in
  • Maximum Wire Diameter (mm/cm/m): 3.81 mm
  • Maximum Wire Gauge: 10 AWG
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.062 in
  • Minimum Wire Diameter (mm/cm/m): 1.57 mm
  • Minimum Wire Gauge: 20 AWG
  • Recovered Diameter (in/ft/yd): 0.062 in
  • Recovered Diameter (mm/cm/m): 1.6 mm
  • Roll Width (in/ft/yd): 1.75 in
  • Roll Width (mm/cm/m): 44.5 mm
  • Size - Width (mm): 14.94 mm
  • Sleeve Size (in/ft/yd): 0.187 in Dia x 0.583 in W
  • Sleeve Size (mm/cm/m): 4.8 mm Dia x 14.8 mm W
  • Sleeve Width (in/ft/yd): 0.583 in
  • Sleeve Width (mm/cm/m): 14.8 mm
  • Vertical Repeat: 0.75 in
  • Wire Diameter Range: 0.062 in to 0.15 in
  • Wire Gauge Range: 20 AWG to 10 AWG

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282081134
GTiN 00662820811343
Finish Matte
Width 14.94 mm
Color White
Type Heat Shrink Tubing
Diameter 0.187 in
Material Polyolefin
Shrink Ratio 3:1
Applications Cable & Wire Marking; Panel Labeling
Height 0.335 in
Wire Size 20-10 AWG
Shape Rectangle
Family Brand Name Brady
Roll Width 1.75 in
Sub Brand BMP71 Series PermaSleeve
CA Prop65 Warning Yes Contains-Label required WARNING: Cancer - www.p65warnings.ca.gov
Max Temperature 275 degrees F
Min Temperature -67 degrees F
