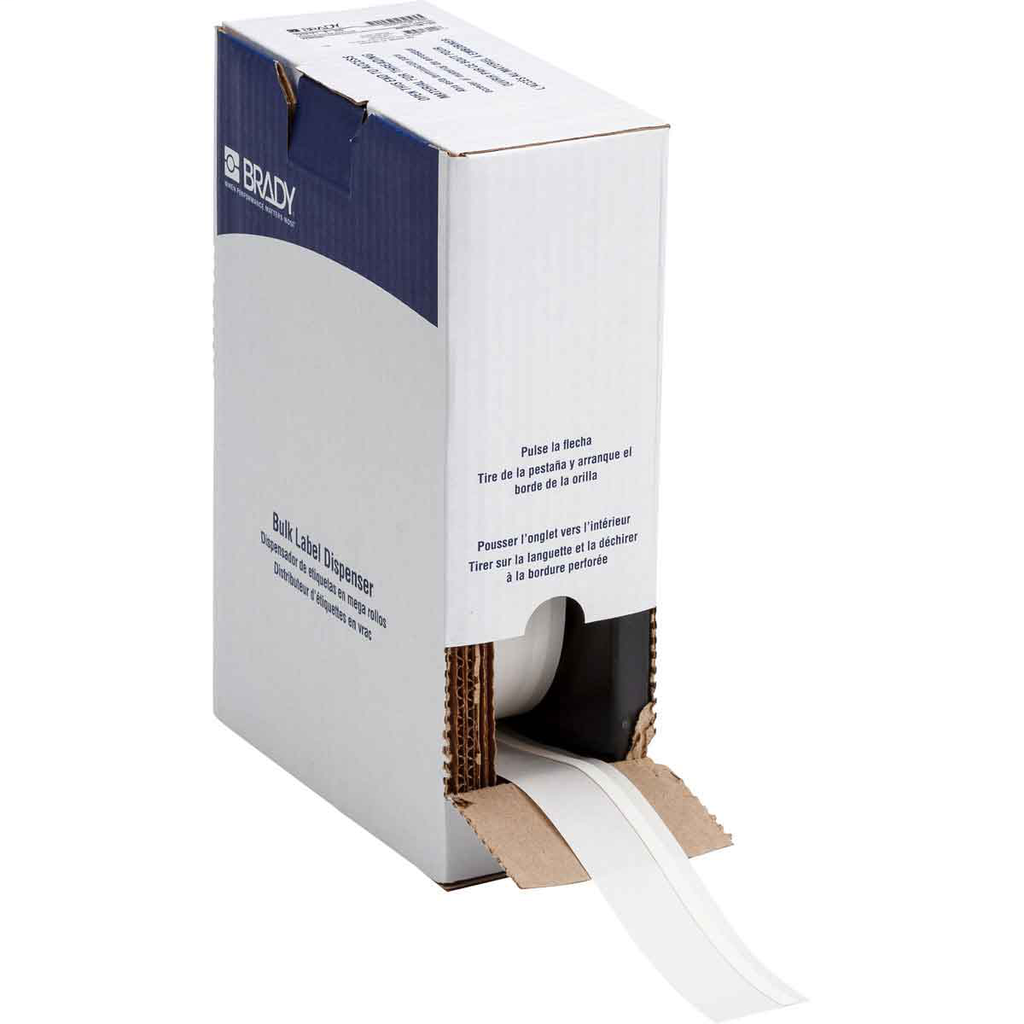

BRADY BM71C-125-342 Wire Mkr,BMP71,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$247.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # BM71C-125-342
North Coast Part # 663570

Features

  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Bulk Part: Bulk Part
  • Color: White
  • Diagram: Icon 15 (heart)
  • Enables Industry Compliance: Method 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224
  • Finish: Matte
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer; BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Bulk Roll
  • Manufacturer Part Number: BM71C-125-342
  • Primary Noun, Basic Function: Heat Shrink Tubing
  • Print Technology: Thermal Transfer
  • Printable Sides: Single-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BMP71
  • Printer Compatibility (Print): BMP71
  • Quantity per Row: 1
  • Recommended Ribbon: M71-R6600
  • Ribbon Series: M71-R4300
  • Shape: Continuous
  • Shrink Ratio: 3:1
  • Sleeve Slits: No
  • Suggested Ribbon Series: R4300; R4502S; R5000; R6600; R6700
  • Total Qty per Pack: 1 Sleeve(s) / Box
  • Trade Name: BMP®71 PermaSleeve®
  • Brady Material Number: B-342
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-342
  • Diameter as Supplied (in/ft/yd): 0.125 in
  • Diameter as Supplied (mm/cm/m): 3.2 mm
  • Dimensions (Metric): 6.00 mm W x 15.24 m L
  • Maximum Service Temperature °C: 135 °C
  • Maximum Service Temperature °F: 275 °F
  • Maximum Wire Diameter (in/ft/yd): 0.11 in
  • Maximum Wire Diameter (mm/cm/m): 2.79 mm
  • Maximum Wire Gauge: 16 AWG
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.046 in
  • Minimum Wire Diameter (mm/cm/m): 1.17 mm
  • Minimum Wire Gauge: 22 AWG
  • Recovered Diameter (in/ft/yd): 0.046 in
  • Recovered Diameter (mm/cm/m): 1.2 mm
  • Recovered Wall Thickness (in/ft/yd): 0.02 in
  • Recovered Wall Thickness (mm/cm/m): 0.51 mm
  • Roll Length (in/ft/yd): 50 ft
  • Roll Length (mm/cm/m): 15.24 m
  • Size - Length (m): 15.24 m
  • Size - Width (mm): 6.00 mm
  • Sleeve Size (in/ft/yd): 0.125 in Dia x 0.235 in W x 50 ft L
  • Sleeve Size (mm/cm/m): 3.2 mm Dia x 6 mm W x 15.24 m L
  • Sleeve Width (in/ft/yd): 0.235 in
  • Sleeve Width (mm/cm/m): 6 mm
  • Wire Diameter Range: 0.046 in to 0.11 in
  • Wire Gauge Range: 22 AWG to 16 AWG

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Categories

Overview

UPC 66282080090
GTiN 00662820800903
Length 15.24 m
Finish Matte
Width 6.00 mm
Color White
Type Heat Shrink Tubing
Diameter 0.125 in
Material Polyolefin
Shrink Ratio 3:1
Applications Cable & Wire Marking; Panel Labeling
Height 0.235 in
Wire Size 22-16 AWG
Shape Continuous
Family Brand Name Brady
Max Operating Temperature 275 F
Min Operating Temperature -67 F
Roll Length 50 ft
Sub Brand BMP71 Series PermaSleeve
CA Prop65 Warning Y
Max Temperature 275 degrees F
Min Temperature -67 degrees F
