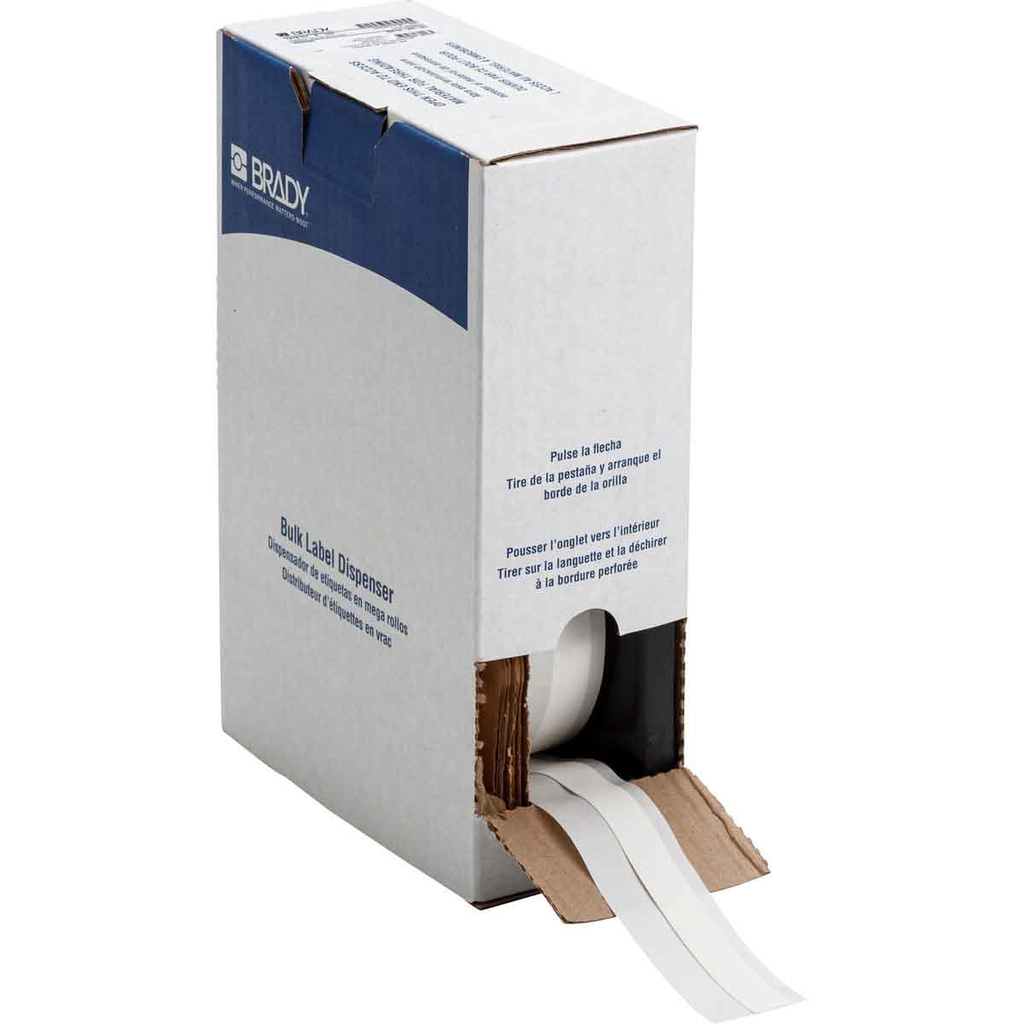

BRADY BM71C-375-342 Wire Mkr,BMP71,

Features

• 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
• Fade-resistant and smudge-proof for superior aesthetic appearance
• Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
• Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

• Applications: Electrical Labeling; Wire and Cable Labeling
• Brand Name: Brady®
• Bulk Part: Bulk Part
• Color: White
• Diagram: Icon 15 (heart)
• Enables Industry Compliance: Method 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224
• Finish: Matte
• For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer; BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
• Label/Media Format: Bulk Roll
• Manufacturer Part Number: BM71C-375-342
• Primary Noun, Basic Function: Heat Shrink Tubing
• Print Technology: Thermal Transfer
• Printable Sides: Single-Side Printable
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: BMP71
• Printer Compatibility (Print): BMP71
• Quantity per Row: 1
• Recommended Ribbon: M71-R6600
• Ribbon Series: M71-R4300
• Shape: Continuous
• Shrink Ratio: 3:1
• Suggested Ribbon Series: R4300; R4502S; R5000; R6600; R6700
• Total Qty per Pack: 1 Sleeve(s) / Box
• Trade Name: BMP®71 PermaSleeve®
• Brady Material Number: B-342
• Label Properties: Heat Shrink Sleeves
• Material: Heat-shrink Polyolefin
• Material Properties: Flame-retardant; Heat-shrinkable
• Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-342
• Diameter as Supplied (in/ft/yd): 0.375 in
• Diameter as Supplied (mm/cm/m): 9.5 mm
• Dimensions (Metric): 16.40 mm W x 15.24 m L
• Maximum Service Temperature °C: 135 °C
• Maximum Service Temperature °F: 275 °F
• Maximum Wire Diameter (in/ft/yd): 0.32 in
• Maximum Wire Diameter (mm/cm/m): 8.13 mm
• Maximum Wire Gauge: 4 AWG
• Minimum Service Temperature °C: -55 °C
• Minimum Service Temperature °F: -67 °F
• Minimum Wire Diameter (in/ft/yd): 0.125 in
• Minimum Wire Diameter (mm/cm/m): 3.18 mm
• Minimum Wire Gauge: 12 AWG
• Recovered Diameter (in/ft/yd): 0.125 in
• Recovered Diameter (mm/cm/m): 3.2 mm
• Recovered Wall Thickness (in/ft/yd): 0.025 in
• Recovered Wall Thickness (mm/cm/m): 0.64 mm
• Roll Length (in/ft/yd): 50 ft
• Roll Length (mm/cm/m): 15.24 m
• Size - Length (m): 15.24 m
• Size - Width (mm): 16.40 mm
• Sleeve Size (in/ft/yd): 0.375 in Dia x 0.645 in W x 50 ft L
• Sleeve Size (mm/cm/m): 9.5 mm Dia x 16.4 mm W x 15.24 m L
• Sleeve Width (in/ft/yd): 0.645 in
• Sleeve Width (mm/cm/m): 16.4 mm
• Wire Diameter Range: 0.125 in to 0.32 in
• Wire Gauge Range: 12 AWG to 4 AWG

Regulatory Information

• CA Prop 65 Labeled: Yes
• CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
• Contains CA PROP 65 Substance: Yes Contains-Label required
• Contains CA PROP 65 Substance: Yes
• Contains CA PROP 65 Warning Type: Cancer
• Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
