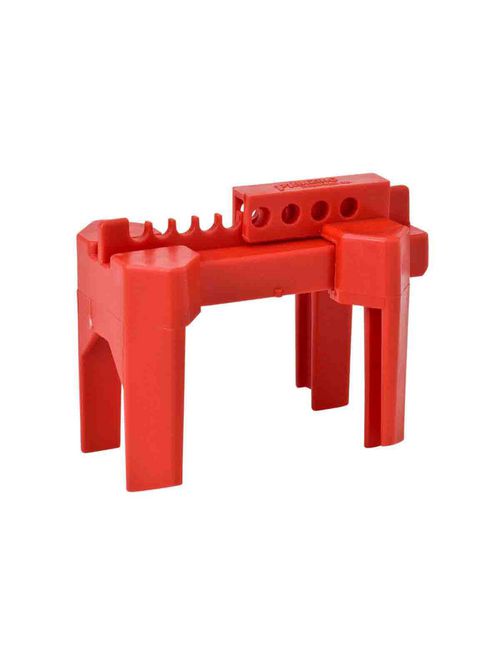

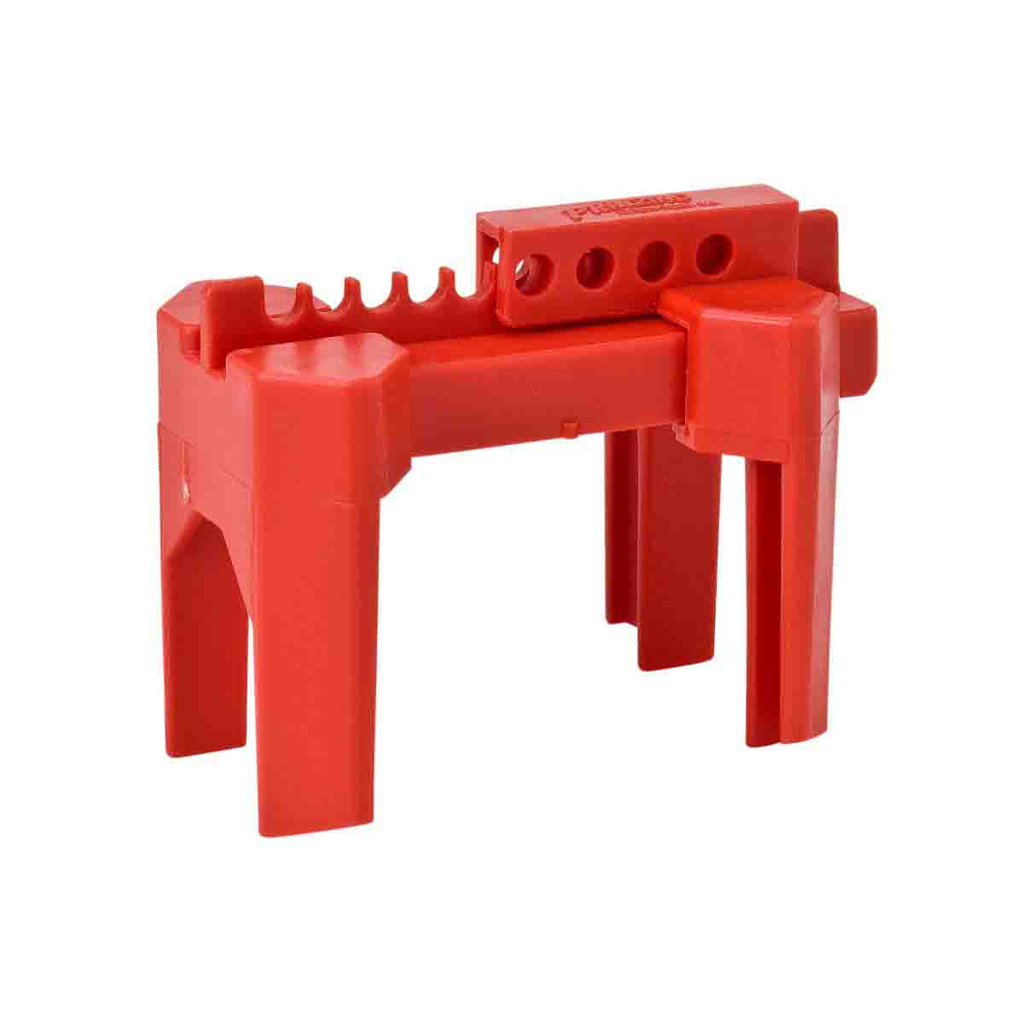

BRADY BS07A-RD PRINZING BALL VALVE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$29.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # BS07A-RD
North Coast Part # 336874

Features

  • 4-Legged Ball Valve Lockout devices lock out pipes 1/2" to 2-1/2" in diameter and can lock values OPEN on pipes from 1/2" to 1-1/4" in diameter
  • Ultra-tough polypropylene resists temperatures from 0° to 175°F (-18° to 79°C)
  • Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
  • Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices

Specifications

  • Ball Valve Lockout Type: Fits over Valve
  • Brand Name: Brady®
  • Color: Red
  • Conductivity: Conductive
  • Enables Industry Compliance: OSHA 1910.147
  • Maximum Number of Padlocks: 2
  • Open or Closed Valve: Both
  • Primary Noun, Basic Function: Lockout Device
  • Risk Type: Mechanical Risk
  • Trade Name: Brady®
  • Brady Material Number: LOTO-22
  • Lockout Material: Polypropylene
  • SAP B-Number: LOTO-22
  • Depth (in/ft/yd): 5.31 in
  • Depth (mm/cm/m): 134.87 mm
  • Dimensions: 4.07 in H x 3.05 in W x 5.31 in D
  • Dimensions (Metric): 103.4 mm H x 134.87 mm D
  • Height (in/ft/yd): 4.07 in
  • Height (mm/cm/m): 103.4 mm
  • Maximum Handle Thickness (in/ft/yd): 0.5 in
  • Maximum Handle Thickness (mm/cm/m): 12.7 mm
  • Maximum Handle Width (in/ft/yd): 1 in
  • Maximum Handle Width (mm/cm/m): 25.4 mm
  • Maximum Pipe Diameter (in/ft/yd): 2.5 in
  • Maximum Pipe Diameter (mm/cm/m): 63.5 mm
  • Maximum Service Temperature °C: 150 °C
  • Maximum Service Temperature °F: 302 °F
  • Maximum Shackle Diameter (in/ft/yd): 0.313 in
  • Maximum Shackle Diameter (mm/cm/m): 7.95 mm
  • Maximum Valve Size: 2.5 in
  • Minimum Pipe Diameter (in/ft/yd): 0.5 in
  • Minimum Pipe Diameter (mm/cm/m): 12.7 mm
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Minimum Shackle Clearance (in/ft/yd): 0.75 in
  • Minimum Shackle Clearance - (mm/cm/m): 19.05 mm
  • Minimum Valve Size (in/ft/yd): .5 in
  • Pipe Diameter Range (in/ft/yd): 1/2 to 2-1/2 in
  • Pipe Diameter Range (mm/cm/m): 12.7 mm to 63.5 mm
  • Service Temperature Range °C: -40 °C to 150 °C
  • Service Temperature Range °F: -40 °F to 302 °F
  • Sign Size-General: 4.07 in x 3.05 in
  • Valve Size Range: 0.5 to 2.5 in
  • Width (in/ft/yd): 3.05 in
  • Width (mm/cm/m): 77.47 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • Contains 3TG Mineral: Not Applicable
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447345341
GTiN 00754473453411
Length 5.31 in
Width 3.05 in
Color Red
Type Small, Non-Conductive
Material Polypropylene
Applications Mechanical Risk Lockout
Depth 5.31 in
Height 4.07 in
Temperature Rating -40 to 302 F
Family Brand Name Brady
Max Operating Temperature 302 degrees F
Shackle Diameter 0.313 IN
Min Operating Temperature -40 degrees F
Used With 1/2 - 2-1/2 in Valve Pipe
Sub Brand Prinzing
CA Prop65 Warning N
Max Temperature 302 degrees F
Min Temperature -40 degrees F
