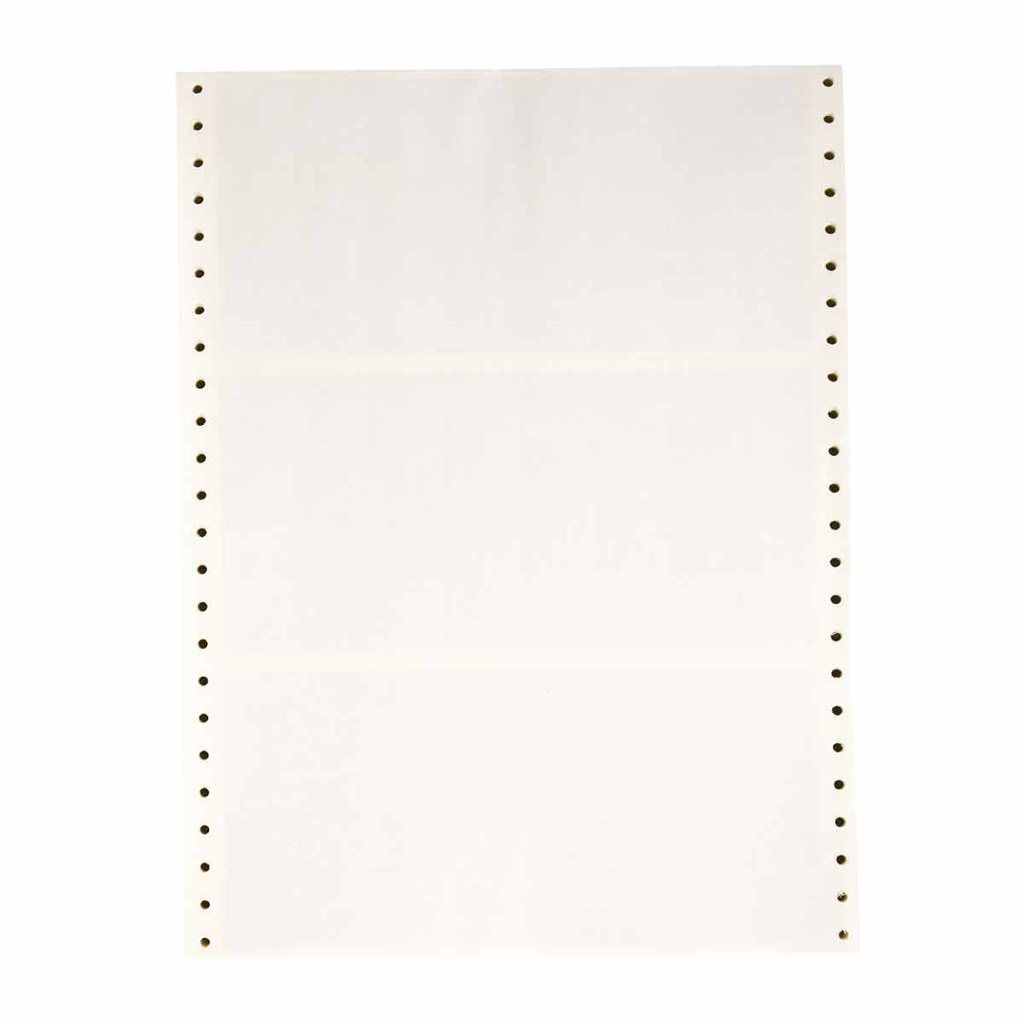

BRADY DAT-39-292-1 Lbl,Dot Mtx,B427

Features

• Vinyl labels feature clear "trailer" that wraps to protect printed text
• Flexible, self-extinguishing material conforms to most surfaces
• Operating temperature of -40°F to 150°F (-40°C to 65.5°C)
• RoHS Compliant;and UL Recognized when printed with Brady Series R2000, R5000, and R7300 ribbons

Specifications

• Applications: Data and Telecommunications Labeling; Wire and Cable Labeling
• Brand Name: Brady®
• Color: Clear/White
• Compatible Surface Types: General
• Enables Industry Compliance: ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
• Finish: Matte
• For Use with Printer: Dot Matrix Printers
• Label/Media Format: Roll
• National Stock Number (NSN): 7690013741955
• Primary Noun, Basic Function: Label
• Print Technology: Dot Matrix
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: Dot Matrix
• Quantity per Roll: 1000
• Quantity per Row: 8
• Ribbon Series: R2000; R5000
• Shape: Rectangle
• Suggested Ribbon Series: R5000
• Total Qty per Pack: 1000 Label(s) / Pack
• Total Quantity: 1000
• Trade Name: DATAB®
• Adhesive Type: Permanent Acrylic
• Brady Material Number: B-292
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Self Laminating Labels & Wraps
• Material: Self-laminating Vinyl
• Material Properties: Flame-retardant; Self-laminating
• Overlaminate Included: Overlaminate Included
• Resistance Properties: Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
• SAP B-Number: B-292
• Dimensions: 3.75 in H x 1 in W
• Dimensions (Metric): 25.40 mm W x 95.25 mm H
• Dimensions 2: 3.75 in H x 1 in W
• Height (in/ft/yd): 3.75 in
• Height (mm/cm/m): 95.25 mm
• Horizontal Repeat: 1 in
• Horizontal Repeat (mm): 25.40 mm
• Label/Tape Size (in/ft/yd): 3.75 in H x 1 in W
• Maximum Service Temperature °C: 70 °C
• Maximum Service Temperature °F: 158 °F
• Maximum Wire Diameter (in/ft/yd): 0.88 in
• Maximum Wire Diameter (mm/cm/m): 22.35 mm
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Minimum Wire Diameter (in/ft/yd): 0.44 in
• Minimum Wire Diameter (mm/cm/m): 11.18 mm
• Printable Area Dimensions: 1 in H x 1 in W
• Printable Area Dimensions (Metric): 25.40 mm H x 25.40 mm W
• Printable Area Height (in/ft/yd): 1 in
• Printable Area Height (mm/cm/m): 25.40 mm
• Printable Area Width (in/ft/yd): 1 in
• Printable Area Width (mm/cm/m): 25.40 mm
• Sign Size-General: 3.75 in x 1 in
• Size - Width (mm): 25.40 mm
• Thickness (in/ft/yd): 0.004 in
• Thickness (mm/cm/m): 0.102 mm
• Vertical Repeat: 4 in
• Vertical Repeat (mm): 101.60 mm
• Web Width (in/ft/yd): 9 in
• Web Width (mm/cm/m): 228.60 mm
• Width (in/ft/yd): 1 in
• Width (mm/cm/m): 25.4 mm
• Wire Diameter Range: 0.44 in to 0.88 in

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
