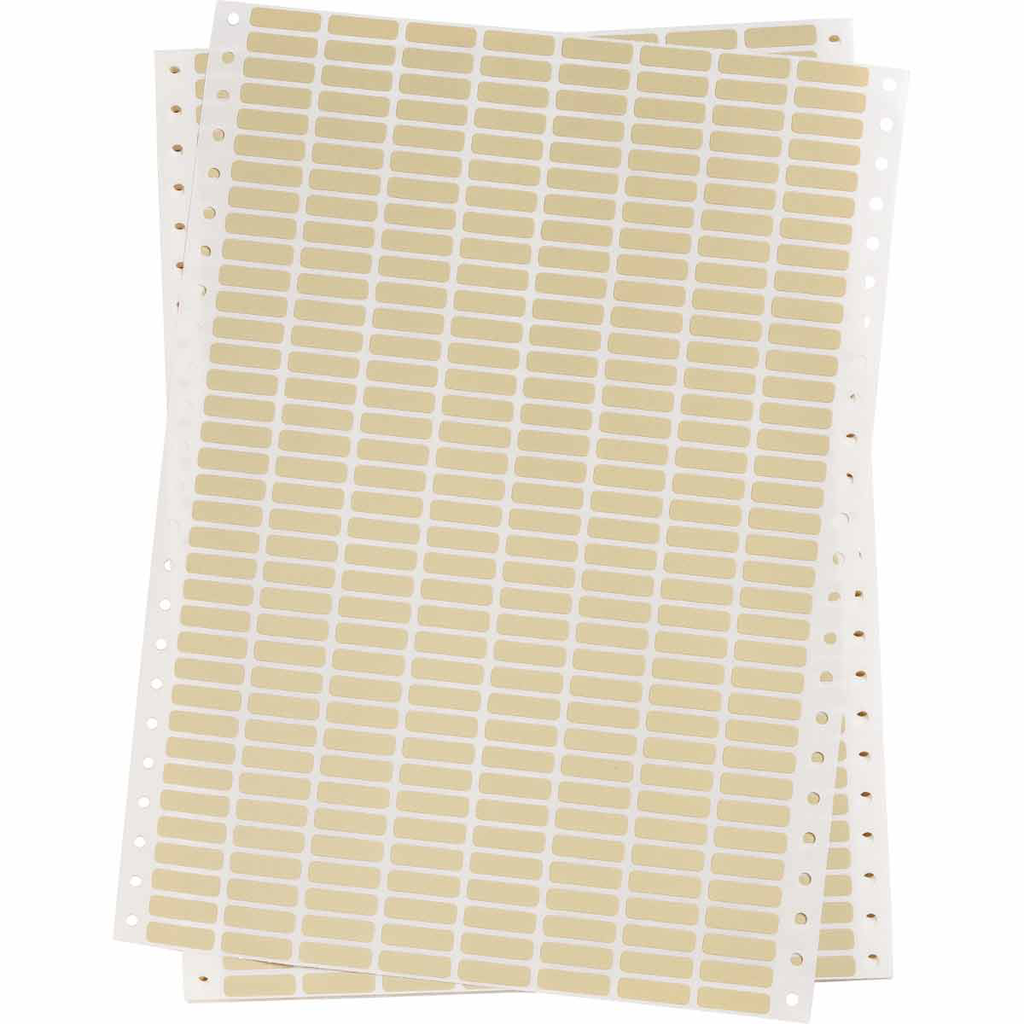

BRADY DAT-50-652-10 Label,Dot Mtx,B
Product image thumbnail 0
Product image thumbnail 1
$1,359.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # DAT-50-652-10
North Coast Part # 264681

Features

  • Pre-heat can be employed to further enhance print permanence in the case of extreme solvent or abrasion exposure

Specifications

  • Applications: Circuit Board Labeling
  • Board Application: SMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: Amber
  • Compatible Surface Types: High Surface Energy
  • Corner Type: Rounded Corners
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-M-81531; MIL-P-55110D; MIL-STD-202F
  • Finish: Matte
  • For Use with Printer: Dot Matrix Printers
  • Industry: Aerospace; Automotive; Electronics; Manufacturing
  • Label/Media Format: Pack
  • Primary Noun, Basic Function: Label
  • Print Technology: Dot Matrix
  • Printer and Label Applications: Circuit Board
  • Printer Compatibility: Dot Matrix
  • Quantity per Roll: 10000
  • Quantity per Row: 8
  • Ribbon Series: R2000; R5000
  • Shape: Rectangle
  • Suggested Ribbon Series: R5000
  • Total Qty per Pack: 10000 Label(s) / Pack
  • Total Quantity: 10000
  • Trade Name: DATAB®
  • Adhesive Type: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-652
  • Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyimide
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-652
  • Dimensions: 0.25 in H x 0.9 in W
  • Dimensions (Metric): 22.86 mm W x 6.35 mm H
  • Dimensions 2: 0.25 in H x 0.9 in W
  • Height (in/ft/yd): 0.25 in
  • Height (mm/cm/m): 6.35 mm
  • Horizontal Repeat (mm): 25.40 mm
  • Label/Tape Size (in/ft/yd): 0.25 in H x 0.9 in W
  • Maximum Service Temperature °C: 280 °C
  • Maximum Service Temperature °F: 536 °F
  • Minimum Service Temperature °C: -70 °C
  • Minimum Service Temperature °F: -94 °F
  • Printable Area Dimensions (Metric): 6.35 mm H x 22.86 mm W
  • Printable Area Height (mm/cm/m): 6.35 mm
  • Printable Area Width (mm/cm/m): 22.86 mm
  • Sign Size-General: 0.25 in x 0.9 in
  • Size - Width (mm): 22.86 mm
  • Thickness (in/ft/yd): 0.0044 in
  • Thickness (mm/cm/m): 0.112 mm
  • Vertical Repeat: 0.33 in
  • Vertical Repeat (mm): 8.46 mm
  • Web Width (mm/cm/m): 276.86 mm
  • Width (in/ft/yd): 0.9 in
  • Width (mm/cm/m): 22.86 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Categories

Overview

UPC 66282028914
GTiN 00662820289142
Finish Matte
Width 0.9 in
Adhesive Type Permanent Acrylic
Color Amber
Type Label
Thickness 0.004 in
Material Polyimide
Applications Circuit Board ID - After Process; Circuit Board ID - Surface Mount; Circuit Board ID - Through Hole Bottom; Circuit Board ID - Through Hole Top; Component & Equipment ID
Height 0.25 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 8
Max Operating Temperature 536 degrees F
Min Operating Temperature -94 degrees F
Sub Brand DATAB
CA Prop65 Warning No - Does Not Contain
Max Temperature 536 degrees F
Min Temperature -94 degrees F
