Brady HSCPS-0.9-2508-WT 0.25 x 0.9 Inch (6.35 mm x 22.86 mm) Heat Shrink Sleeve

Features

• Sleeves are made from high density polyolefin film and are supplied in various configurations including pin-feed rolls
• Compatible with both dot matrix and thermal transfer print technology
• Extreme cold and heat-resistance with service temperatures of -40°F to 392°F (-40°C to 200°C)
• RoHS Compliant

Specifications

• Applications: Wire and Cable Labeling
• Brand Name: Brady®
• Color: White
• Enables Industry Compliance: ASTM D 1000; ASTM D 882; ASTM G 155; MIL-M-81531; MIL-STD-202
• Finish: Matte
• For Use with Printer: Dot Matrix Printers
• Label/Media Format: Roll
• National Stock Number (NSN): 5940013431445
• Primary Noun, Basic Function: Sleeve
• Print Technology: Dot Matrix
• Printable Sides: Single-Side Printable
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: Dot Matrix; SLV-DAT-PTR
• Quantity per Roll: 500
• Quantity per Row: 4
• Ribbon Series: R5000
• Shrink Ratio: 2:1
• Sleeve Slits: Yes
• Suggested Ribbon Series: R5000
• Total Qty per Pack: 500 Sleeve(s) / Roll
• Total Quantity: 500
• Trade Name: BradySleeve™
• Brady Material Number: B-321
• Label Properties: Heat Shrink Sleeves
• Material: Heat-shrink Polyolefin
• Material Properties: Heat-shrinkable
• Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-321
• Diameter as Supplied (in/ft/yd): 0.075 in
• Diameter as Supplied (mm/cm/m): 1.91 mm

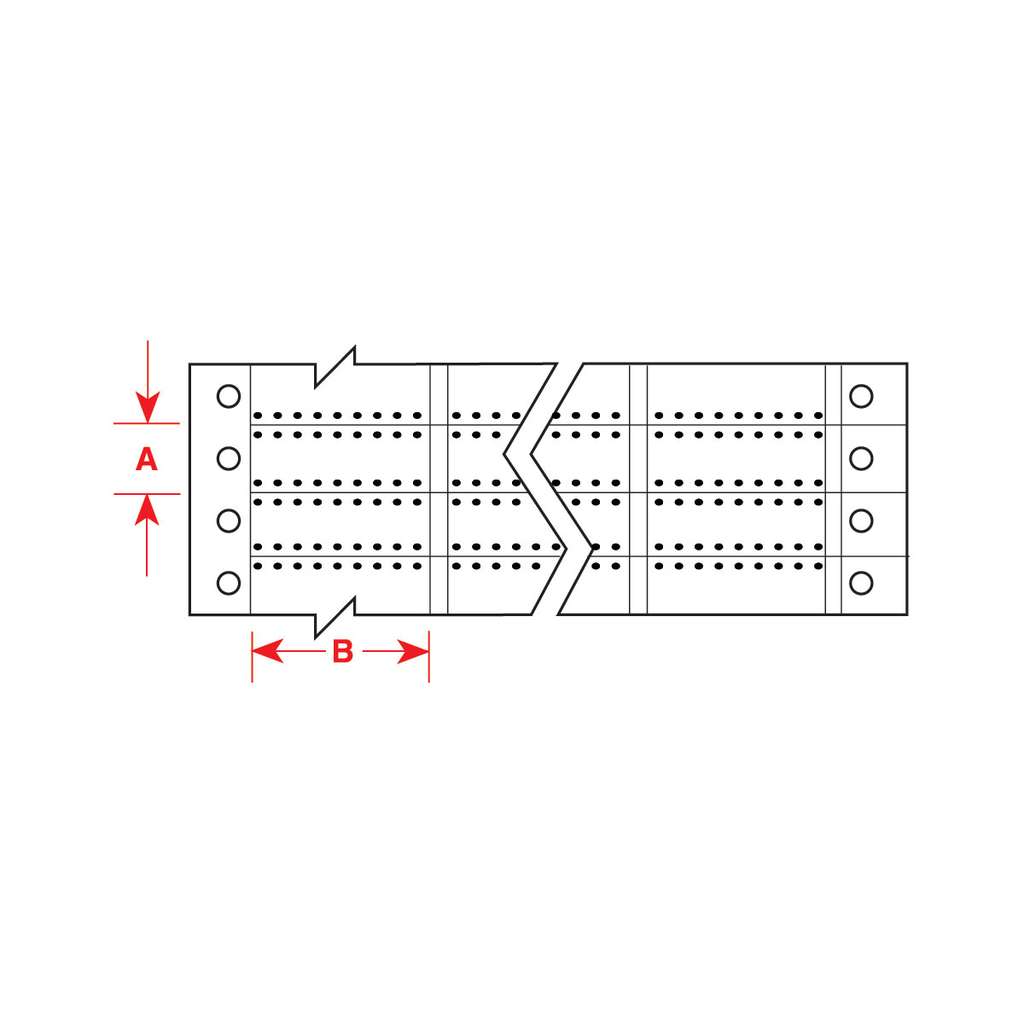

• Dimensions: 0.25 in H
• Dimensions (Metric): 22.86 mm W x 6.35 mm H
• Dimensions 2: 0.25 in H
• Height (in/ft/yd): 0.25 in
• Height (mm/cm/m): 6.35 mm
• Maximum Service Temperature °C: 120 °C
• Maximum Service Temperature °F: 248 °F
• Maximum Wire Diameter (in/ft/yd): 0.075 in
• Maximum Wire Diameter (mm/cm/m): 1.91 mm
• Maximum Wire Gauge: 16 AWG
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Minimum Wire Diameter (in/ft/yd): 0.035 in
• Minimum Wire Diameter (mm/cm/m): 0.89 mm
• Minimum Wire Gauge: 22 AWG
• Recovered Diameter (in/ft/yd): 0.035 in
• Recovered Diameter (mm/cm/m): 0.89 mm
• Recovered Wall Thickness (in/ft/yd): 0.0065 in
• Recovered Wall Thickness (mm/cm/m): 0.17 mm
• Roll Width (in/ft/yd): 0.9 in
• Roll Width (mm/cm/m): 22.86 mm
• Size - Width (mm): 22.86 mm
• Sleeve Size (in/ft/yd): 0.075 in Dia x 0.23 in W
• Sleeve Size (mm/cm/m): 1.91 mm Dia x 5.84 mm W
• Sleeve Width (in/ft/yd): 0.23 in
• Sleeve Width (mm/cm/m): 5.84 mm
• Thickness (in/ft/yd): 0.0065 in
• Thickness (mm/cm/m): 0.16 mm
• Vertical Repeat: 0.25 in
• Wire Diameter Range: 0.035 in to 0.075 in
• Wire Gauge Range: 22 AWG to 16 AWG

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): Unavailable
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
