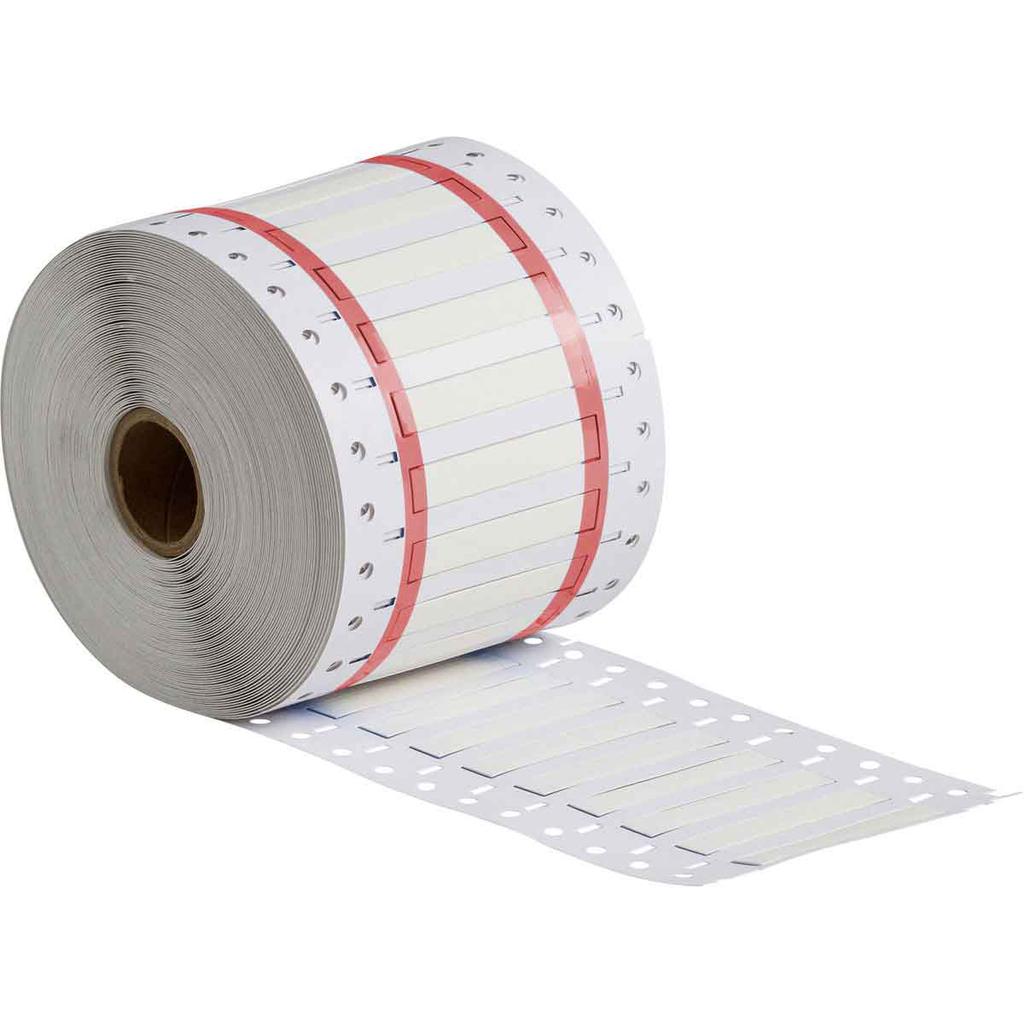

BRADY HX-187-2-WT-SC Wire Mkr,THT S
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$359.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # HX-187-2-WT-SC
North Coast Part # 671923

Features

  • Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
  • Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Color: White
  • Enables Industry Compliance: ASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 Part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AMS-STD-104 Class 1; SAE-AS-81531; UL Recognized; VW-1
  • Finish: Matte
  • For Use with Printer: BBP®11 Label Printer; BBP®12 Label Printer; THT 1" Core Printer
  • Label/Media Format: Roll
  • Markers per Roll: 500
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printable Sides: Single-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus
  • Printer Compatibility (Print): BBP12; BBP72
  • Quantity per Roll: 500
  • Quantity per Row: 1
  • Recommended Ribbon: R6413
  • Ribbon Series: R6600
  • Shrink Ratio: 2:1
  • Suggested Ribbon Series: R4300; R6000 Halogen Free; R6400; R6600
  • Total Qty per Pack: 500 Label(s) / Roll
  • Total Quantity: 500
  • Trade Name: PermaSleeve®
  • Adhesive (Y/N): No
  • Brady Material Number: B-7642
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-7642
  • Core Diameter (mm/cm/m): 25.40 mm
  • Diameter as Supplied (in/ft/yd): 0.187 in
  • Diameter as Supplied (mm/cm/m): 4.8 mm
  • Dimensions: 0.335 in H
  • Dimensions (Metric): 50.80 mm W x 8.50 mm H
  • Dimensions 2: 0.335 in H
  • Height (in/ft/yd): 0.335 in
  • Height (mm/cm/m): 8.50 mm
  • Maximum Service Temperature °C: 120 °C
  • Maximum Service Temperature °F: 248 °F
  • Maximum Wire Diameter (in/ft/yd): 0.15 in
  • Maximum Wire Diameter (mm/cm/m): 3.81 mm
  • Maximum Wire Gauge: 10 AWG
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Minimum Wire Diameter (in/ft/yd): 0.094 in
  • Minimum Wire Diameter (mm/cm/m): 2.39 mm
  • Minimum Wire Gauge: 16 AWG
  • Recovered Diameter (in/ft/yd): 0.094 in
  • Recovered Diameter (mm/cm/m): 2.4 mm
  • Roll Width (in/ft/yd): 2 in
  • Roll Width (mm/cm/m): 50.8 mm
  • Size - Width (mm): 50.80 mm
  • Sleeve Size (in/ft/yd): 0.187 in Dia x 2 in W
  • Sleeve Size (mm/cm/m): 4.8 mm Dia x 50.8 mm W
  • Sleeve Width (in/ft/yd): 2 in
  • Sleeve Width (mm/cm/m): 50.8 mm
  • Vertical Repeat: 0.625 in
  • Vertical Repeat (mm): 15.88 mm
  • Web Width (mm/cm/m): 89.00 mm
  • Wire Diameter Range: 0.094 in to 0.15 in
  • Wire Gauge: 14-10
  • Wire Gauge Range: 16 AWG to 10 AWG

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282082071
GTiN 00662820820710
Finish Matte
Width 50.80 mm
Color White
Type Heat Shrink Tubing
Diameter 0.187 in
Material Polyolefin
Shrink Ratio 2:1
Applications Cable & Wire Marking
Height 0.335 in
Wire Size 0.094-0.15 in
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 248 degrees F
Min Operating Temperature -40 degrees F
Roll Width 2 in
Sub Brand PermaSleeve
CA Prop65 Warning Y
Max Temperature 248 degrees F
Min Temperature -40 degrees F
