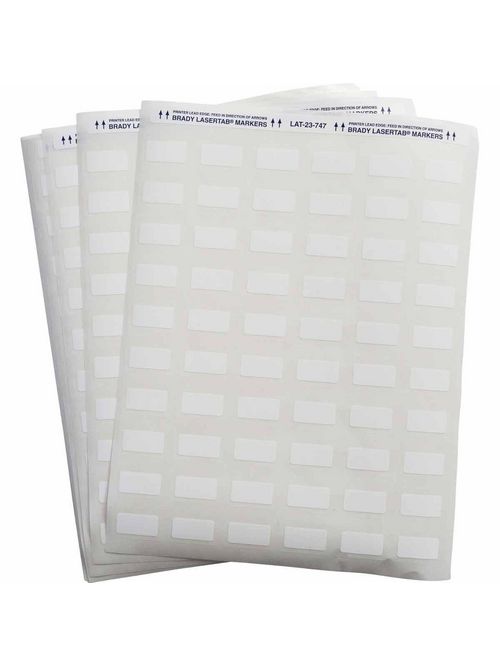

BRADY LAT-23-747-2.5 Label,Lsr,B747
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$483.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # LAT-23-747-2.5
North Coast Part # 424757

Features

  • Polyester film with an acrylic pressure sensitive adhesive and a printable coating formulated specially for laser printers and toners
  • High resolution, good solvent and smudge resistance, moderate to high temperature performance
  • White is a UL recognized component and CSA accepted material when printed with designated laser printers

Specifications

  • Applications: Circuit Board Labeling; General Identification
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Color: White
  • Diagram: Icon 70 (LT8)
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
  • Finish: Matte
  • For Use with Printer: Laser Printers
  • Primary Noun, Basic Function: Label
  • Print Technology: Laser Printing
  • Printer and Label Applications: Circuit Board; General Identification; Rating & Name Plates
  • Printer Compatibility: Laser
  • Quantity per Card or Sheet: 60
  • Quantity per Row: 6
  • Shape: Rectangle
  • Total Qty per Pack: 2520 Label(s) / Pack
  • Total Quantity: 2520
  • Trade Name: LaserTab® PermaShield™
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-747/B-966B
  • Label Properties: Permanent Adhesive Labels
  • Material: Polyester with Polyester Overlaminate
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-747/B-966B
  • Dimensions: 0.5 in H x 1 in W
  • Dimensions (Metric): 25.40 mm W x 12.70 mm H
  • Dimensions 2: 0.5 in H x 1 in W
  • Height (in/ft/yd): 0.5 in
  • Height (mm/cm/m): 12.70 mm
  • Horizontal Repeat (mm): 34.29 mm
  • Label/Tape Size (in/ft/yd): 0.5 in H x 1 in W
  • Left Margin (mm): 6.99 mm
  • Maximum Service Temperature °C: 130 °C
  • Maximum Service Temperature °F: 266 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Overlaminate Dimensions - Height (mm): 15.90 mm
  • Overlaminate Dimensions - Width (mm): 28.6 mm
  • Printable Area Dimensions (Metric): 12.70 mm H x 25.40 mm W
  • Printable Area Height (mm/cm/m): 12.70 mm
  • Printable Area Width (mm/cm/m): 25.40 mm
  • Sheet Height (in/ft/yd): 11 in
  • Sheet Height (mm/cm/m): 279.4 mm
  • Sheet Size: 215.90 mm x 279.40 mm
  • Sheet Width (in/ft/yd): 8.5 in
  • Sheet Width (mm/cm/m): 215.9 mm
  • Sign Size-General: 0.5 in x 1 in
  • Size - Width (mm): 25.40 mm
  • Thickness (in/ft/yd): 0.0066 in
  • Thickness (mm/cm/m): 0.168 mm
  • Top Margin (mm): 25.40 mm
  • Vertical Repeat (mm): 25.40 mm
  • Width (in/ft/yd): 1 in
  • Width (mm/cm/m): 25.4 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282029755
GTiN 00662820297550
Finish Matte
Width 1 in
Adhesive Type Permanent Acrylic
Color White
Type Label
Thickness 0.006 in
Material Polyester
Applications Circuit Board ID - Through Hole Top; General & Industrial ID
Height 0.5 in
Shape Rectangle
Family Brand Name Brady
Sub Brand LaserTab
CA Prop65 Warning N
Max Temperature 266 degrees F
Min Temperature -40 degrees F
