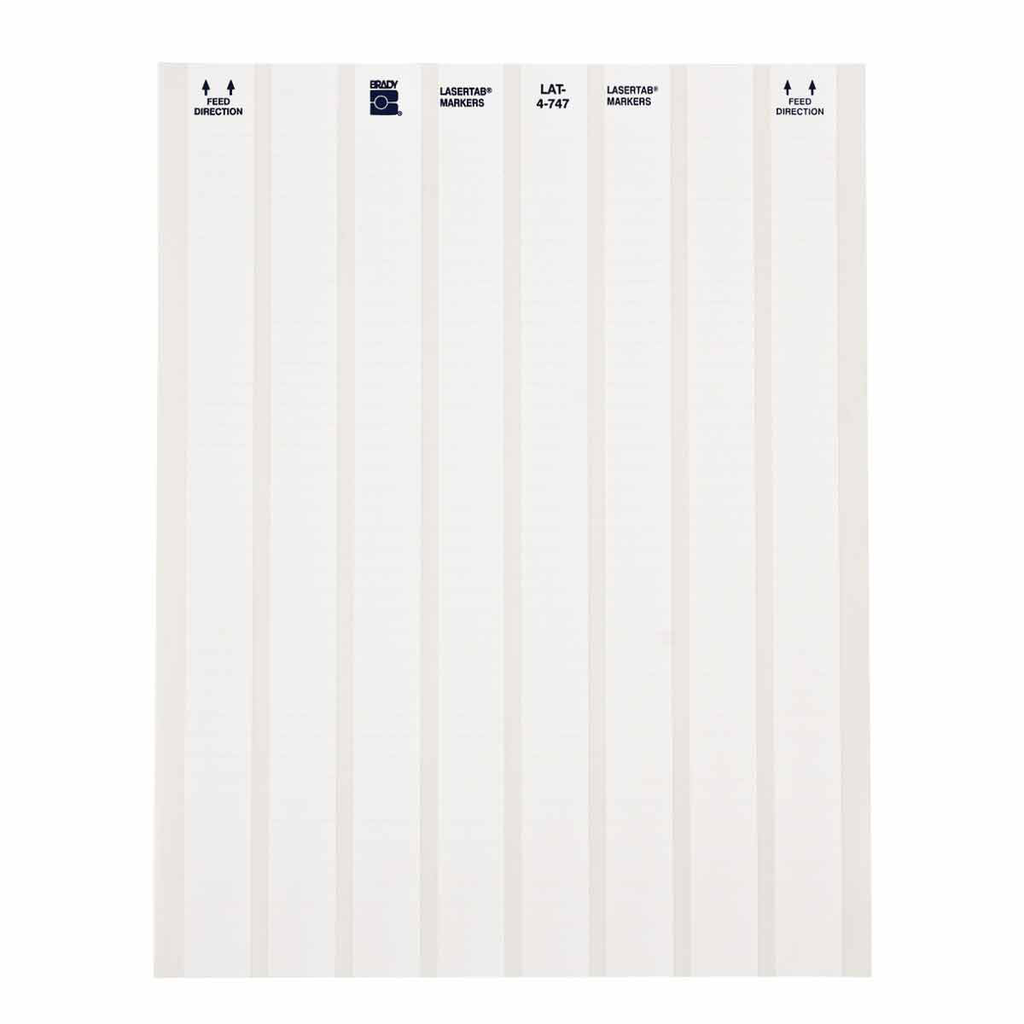

BRADY LAT-5-747-10 Label,Lsr,B747,W
Product image thumbnail 0
Product image thumbnail 1
$438.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # LAT-5-747-10
North Coast Part # 669254

Features

  • Polyester film with an acrylic pressure sensitive adhesive and a printable coating formulated specially for laser printers and toners
  • High resolution, good solvent and smudge resistance, moderate to high temperature performance
  • Service temperature of -40°F to 267°F (-40°C to 130°C)

Specifications

  • Applications: Circuit Board Labeling; General Identification
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Color: White
  • Compatible Surface Types: High Surface Energy
  • Diagram: Icon 64 (LT2)
  • Enables Industry Compliance: ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
  • Finish: Matte
  • For Use with Printer: Laser Printers
  • Industry: Aerospace; Automotive; Electronics; Manufacturing
  • Primary Noun, Basic Function: Label
  • Print Technology: Laser Printing
  • Printer and Label Applications: Circuit Board; General Identification; Rating & Name Plates
  • Printer Compatibility: Laser
  • Quantity per Card or Sheet: 152
  • Quantity per Row: 8
  • Shape: Rectangle
  • Total Qty per Pack: 10032 Label(s) / Pack
  • Trade Name: LaserTab®
  • Adhesive Type: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-747
  • Label Properties: Permanent Adhesive Labels
  • Material: Polyester
  • Material Properties: Laser Toner-receptive
  • Resistance Properties: Chemical-Resistant; High Temperature-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-747
  • Dimensions: 0.5 in H x 0.8 in W
  • Dimensions (Metric): 20.32 mm W x 12.70 mm H
  • Dimensions 2: 0.5 in H x 0.8 in W
  • Height (in/ft/yd): 0.5 in
  • Height (mm/cm/m): 12.70 mm
  • Horizontal Repeat (mm): 25.40 mm
  • Label/Tape Size (in/ft/yd): 0.5 in H x 0.8 in W
  • Left Margin (mm): 8.89 mm
  • Maximum Service Temperature °C: 130 °C
  • Maximum Service Temperature °F: 266 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Printable Area Dimensions (Metric): 12.70 mm H x 20.32 mm W
  • Printable Area Height (mm/cm/m): 12.70 mm
  • Printable Area Width (mm/cm/m): 20.32 mm
  • Sheet Height (in/ft/yd): 11 in
  • Sheet Height (mm/cm/m): 279.4 mm
  • Sheet Size: 215.90 mm x 279.40 mm
  • Sheet Width (in/ft/yd): 8.5 in
  • Sheet Width (mm/cm/m): 215.9 mm
  • Sign Size-General: 0.5 in x 0.8 in
  • Size - Width (mm): 20.32 mm
  • Thickness (in/ft/yd): 0.0037 in
  • Thickness (mm/cm/m): 0.094 mm
  • Top Margin (mm): 22.23 mm
  • Width (in/ft/yd): 0.8 in
  • Width (mm/cm/m): 20.32 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282029712
GTiN 00662820297123
Finish Matte
Width 0.8 in
Adhesive Type Permanent Acrylic
Color White
Type Label
Thickness 0.003 in
Material Polyester
Applications Circuit Board ID - Through Hole Top; General & Industrial ID
Height 0.5 in
Shape Rectangle
Family Brand Name Brady
Max Operating Temperature 266 degrees F
Min Operating Temperature -40 degrees F
Sub Brand LaserTab
CA Prop65 Warning N
Max Temperature 266 degrees F
Min Temperature -40 degrees F
