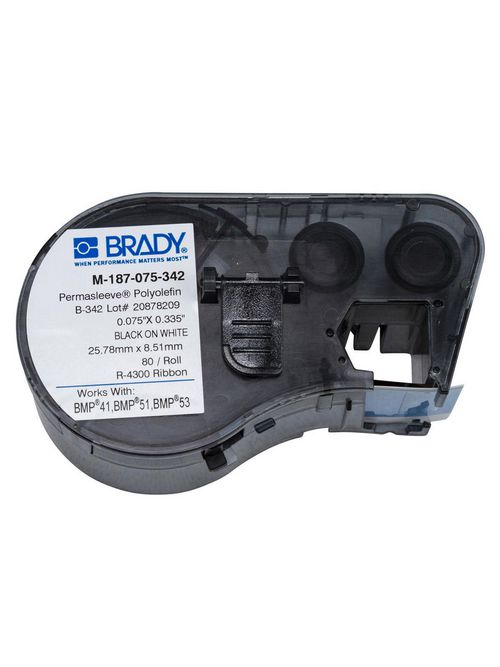

Brady M-187-075-342 80-Pack White 0.75 x 0.335 Inch Label Cartridge
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$56.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # M-187-075-342
North Coast Part # 940499

Features

  • 3:1 heat-shrinking wire sleeve is ideal for labeling in harsh environments and is resistant to chemicals, grease, oil and cleaning agents
  • Polyolefin wire marking sleeves have a smudge-proof finish and print in black text on a white background
  • PermaSleeve labels provide wire identification that combines speed, ease of use and permanence for long-lasting, high quality identification
  • Cold resistant and flame-retardant with an operating temperature of -67° F to 275° F (-55° C to 135° C)
  • PermaSleeve wire labels are ideal for electrical contractors, maintenance crews and industrial professionals

Specifications

  • Applications: Wire and Cable Labeling
  • Brand Name: Brady®
  • Color: Black on White
  • Diagram: Icon 14 (v)
  • Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
  • Finish: Matte
  • For Use with Printer: BMP®41 Label Printer; BMP®51 Label Printer; BMP®53 Label Printer
  • Label/Media Format: Label/Media in Cartridge with Ribbon
  • Manufacturer Part Number: M-187-075-342
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BMP41; BMP51; BMP53
  • Printer Compatibility (Print): BMP41; BMP51
  • Quantity per Roll: 80
  • Quantity per Row: 1
  • Ribbon Color: Black
  • Ribbon Series: R4300
  • Shape: Rectangle
  • Shrink Ratio: 3:1
  • Smart Cell: Yes
  • Software: LabelMark
  • Tape Color: White
  • Total Qty per Pack: 80 Label(s) / Box
  • Total Quantity: 80
  • Trade Name: M Series PermaSleeve®
  • Adhesive (Y/N): Yes
  • Brady Material Number: B-342
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-342
  • Diameter as Supplied (in/ft/yd): 0.187 in
  • Diameter as Supplied (mm/cm/m): 4.8 mm
  • Dimensions: 0.335 in H x 0.075 in W
  • Dimensions (Metric): 19.05 mm W x 8.50 mm H
  • Dimensions 2: 0.335 in H x 0.075 in W
  • Height (in/ft/yd): 0.335 in
  • Height (mm/cm/m): 8.50 mm
  • Maximum Service Temperature °C: 135 °C
  • Maximum Service Temperature °F: 275 °F
  • Maximum Wire Diameter (in/ft/yd): 0.15 in
  • Maximum Wire Diameter (mm/cm/m): 3.81 mm
  • Maximum Wire Gauge: 10 AWG
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.062 in
  • Minimum Wire Diameter (mm/cm/m): 1.57 mm
  • Minimum Wire Gauge: 20 AWG
  • Roll Width (in/ft/yd): 0.75 in
  • Roll Width (mm/cm/m): 19.1 mm
  • Sign Size-General: 0.335 in x 0.075 in
  • Size - Width (mm): 19.05 mm
  • Sleeve Size (in/ft/yd): 0.187 in Dia x 0.75 in W
  • Sleeve Size (mm/cm/m): 4.8 mm Dia x 19.1 mm W
  • Sleeve Width (in/ft/yd): 0.75 in
  • Sleeve Width (mm/cm/m): 19.1 mm
  • Web Width (in/ft/yd): 2 in
  • Width (in/ft/yd): 0.075 in
  • Wire Diameter Range: 0.062 in to 0.15 in
  • Wire Gauge Range: 20 AWG to 10 AWG

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Categories

Overview

UPC 66282099994
GTiN 00662820999942
Finish Matte
Width 0.075 in
Color Black,White
Type Heat Shrink Tubing
Diameter 0.187 in
Material Polyolefin
Shrink Ratio 3:1
Applications Cable & Wire Marking
Height 0.335 in
Wire Size 20-10 AWG
Cable Size 20-10 AWG
Temperature Rating -94 to 267 F
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 275 degrees F
Standard Packaging Qty 80/Pack
Min Operating Temperature -67 degrees F
Roll Width 0.75 in
Used With BMP 41 Label Printer, BMP 51 and BMP 53 Thermal Transfer Label Maker
Sub Brand PermaSleeve
CA Prop65 Warning Y
Max Temperature 275 degrees F
Min Temperature -67 degrees F
