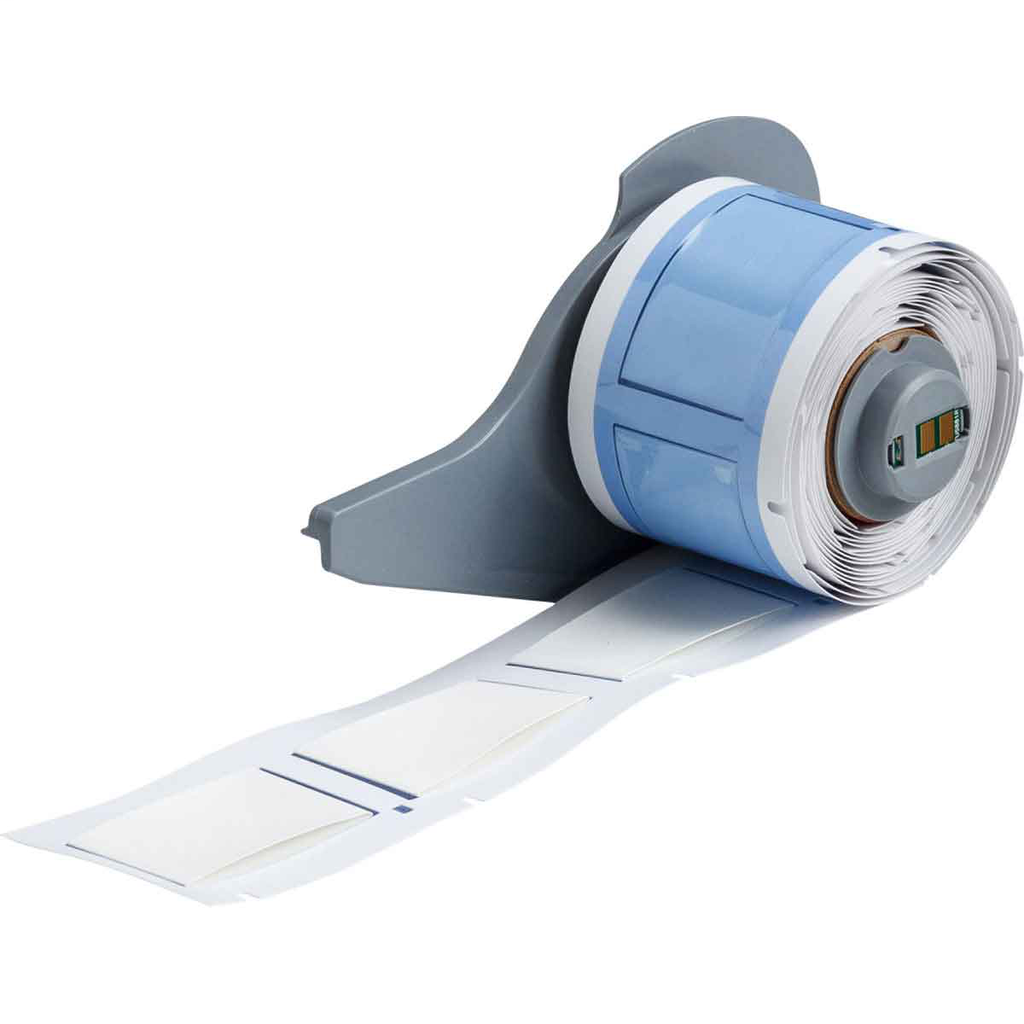

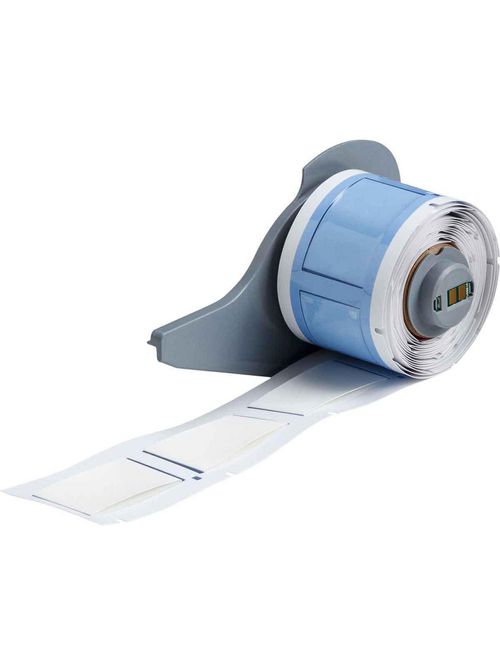

BRADY M71-1000-1-342 Wire Mkr,BMP71

Features

• 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
• Fade-resistant and smudge-proof for superior aesthetic appearance
• Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
• Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

• Applications: Electrical Labeling; Wire and Cable Labeling
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: White
• Diagram: Icon 14 (v)
• Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
• Finish: Matte
• For Use with Printer: BMP®71 Label Printer
• Label/Media Format: Roll
• Manufacturer Part Number: M71-1000-1-342
• Max. Lines of Text: 16
• Primary Noun, Basic Function: Sleeve
• Print Technology: Thermal Transfer
• Printable Sides: Single-Side Printable
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: BMP71
• Printer Compatibility (Print): BMP71
• Quantity per Roll: 50
• Quantity per Row: 1
• Recommended Ribbon: M71-R6600
• Ribbon Series: M71-R4300
• Shape: Rectangle
• Shrink Ratio: 3:1
• Suggested Ribbon Series: R4300; R6600
• Total Qty per Pack: 50 Label(s) / Box
• Total Quantity: 50
• Trade Name: BMP®71 PermaSleeve®
• Brady Material Number: B-342
• Label Properties: Heat Shrink Sleeves
• Material: Heat-shrink Polyolefin
• Material Properties: Flame-retardant; Heat-shrinkable
• Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-342
• Diameter as Supplied (in/ft/yd): 1 in
• Diameter as Supplied (mm/cm/m): 25.4 mm
• Dimensions: 1.66 in H x 1.1677 in W
• Dimensions (Metric): 25.78 mm W x 42.16 mm H
• Dimensions 2: 1.66 in H x 1.1677 in W
• Height (in/ft/yd): 1.66 in
• Height (mm/cm/m): 42.16 mm
• Maximum Service Temperature °C: 135 °C
• Maximum Service Temperature °F: 275 °F
• Maximum Wire Diameter (in/ft/yd): 0.95 in
• Maximum Wire Diameter (mm/cm/m): 24.13 mm
• Maximum Wire Gauge: 0.95 in
• Minimum Service Temperature °C: -55 °C
• Minimum Service Temperature °F: -67 °F
• Minimum Wire Diameter (in/ft/yd): 0.375 in
• Minimum Wire Diameter (mm/cm/m): 9.53 mm
• Minimum Wire Gauge: 2 AWG
• Recovered Diameter (in/ft/yd): 0.375 in
• Recovered Diameter (mm/cm/m): 9.5 mm
• Roll Width (in/ft/yd): 1 in
• Roll Width (mm/cm/m): 25.4 mm
• Sign Size-General: 1.66 in x 1.1677 in
• Size - Width (mm): 25.78 mm
• Sleeve Size (in/ft/yd): 1 in Dia x 1 in W
• Sleeve Size (mm/cm/m): 25.4 mm Dia x 25.4 mm W
• Sleeve Width (in/ft/yd): 1 in
• Sleeve Width (mm/cm/m): 25.4 mm
• Vertical Repeat: 2 in
• Width (in/ft/yd): 1.1677 in
• Wire Diameter Range: 0.375 in to 0.95 in
• Wire Gauge Range: 2 AWG to 0.95 in

Regulatory Information

• CA Prop 65 Labeled: Yes
• CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
• Contains CA PROP 65 Substance: Yes Contains-Label required
• Contains CA PROP 65 Substance: Yes
• Contains CA PROP 65 Warning Type: Cancer
• Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
