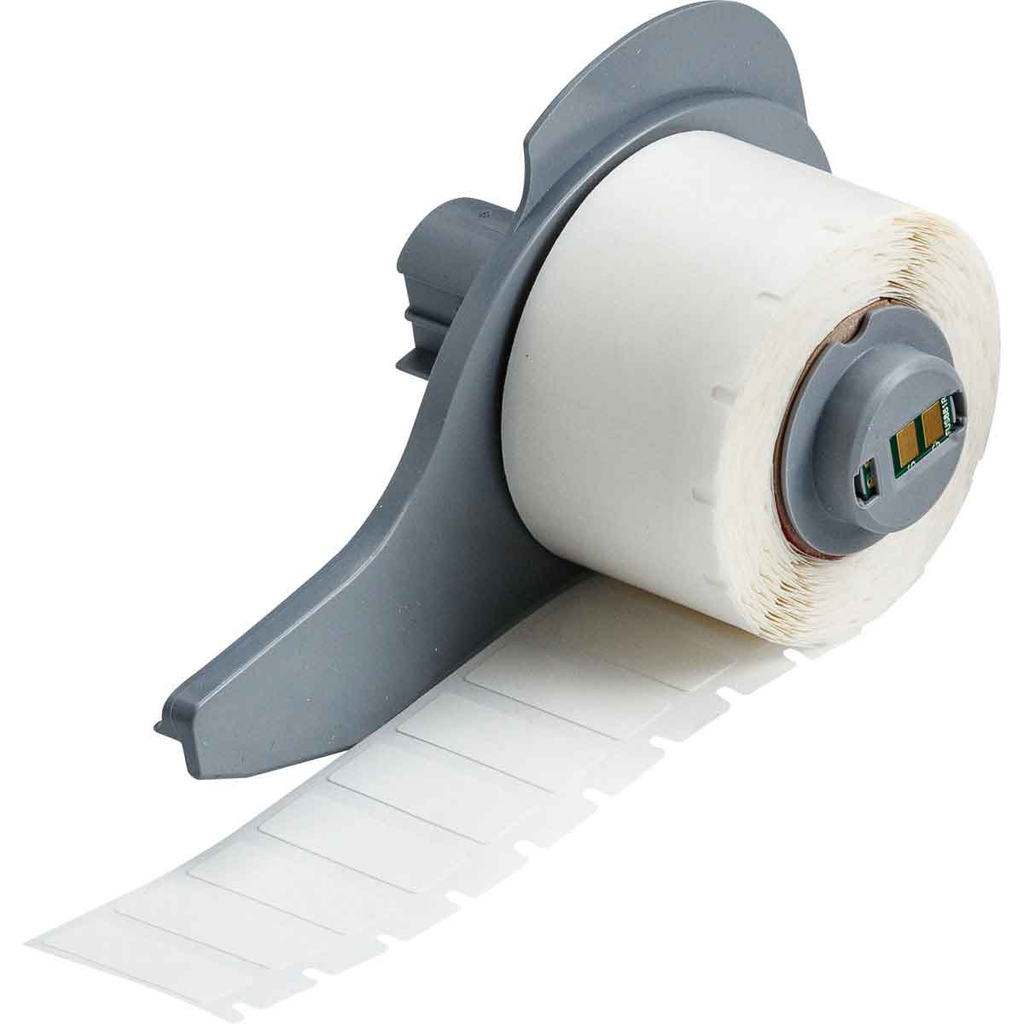

BRADY M71-16-498 Label,BMP71,B498,0

Features

• The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
• Sticks to any clean, dry surface
• Specially formulated topcoat for excellent print quality
• Semi-gloss finish for crisp, clean look

Specifications

• Applications: Circuit Board Labeling; Laboratory Labeling; Wire and Cable Labeling
• Board Application: Through Hole - Top
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: White
• Compatible Surface Types: Low Surface Energy
• Diagram: Icon 3 (triangle)
• Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
• Finish: Semi-gloss
• For Use with Printer: BMP®71 Label Printer
• Label/Media Format: Roll
• Manufacturer Part Number: M71-16-498
• Max. Lines of Text: 10
• Primary Noun, Basic Function: Label
• Print Technology: Thermal Transfer
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: BMP71
• Printer Compatibility (Print): BMP71
• Quantity per Roll: 500
• Quantity per Row: 1
• Recommended Ribbon: M61-R6210; M71-R6200
• Ribbon Series: M71-R6200
• Shape: Rectangle
• Suggested Ribbon Series: R6200
• Total Qty per Pack: 500 Label(s) / Box
• Total Quantity: 500
• Trade Name: CleanLift
• Adhesive (Y/N): Yes
• Adhesive Type: Repositionable Rubber
• After Process: Yes, this material will work with this application
• Brady Material Number: B-498
• Label Properties: Repositionable Labels
• Material: Vinyl Cloth
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-498
• Dimensions: 1 in H x 0.375 in W
• Dimensions (Metric): 9.53 mm W x 25.40 mm H
• Dimensions 2: 1 in H x 0.375 in W
• Height (in/ft/yd): 1 in
• Height (mm/cm/m): 25.40 mm
• Label/Tape Size (in/ft/yd): 1 in H x 0.375 in W
• Maximum Service Temperature °C: 80 °C
• Maximum Service Temperature °F: 176 °F
• Maximum Wire Diameter (mm/cm/m): 6.06 mm
• Maximum Wire Gauge: 10 gauge
• Minimum Application Temperature °C: 10 °C
• Minimum Application Temperature °F: 50 °F
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Minimum Wire Gauge: 12 gauge
• Printable Area Dimensions (Metric): 25.4 mm H x 9.53 mm W
• Printable Area Height (mm/cm/m): 25.4 mm
• Printable Area Width (mm/cm/m): 9.53 mm
• Sign Size-General: 1 in x 0.375 in
• Size - Width (mm): 9.53 mm
• Thickness (in/ft/yd): 0.0073 in
• Thickness (mm/cm/m): 0.185 mm
• Vertical Repeat: 0.5 in
• Vertical Repeat (mm): 12.70 mm
• Vial/Tube Size: 0.5 - 0.7 ml
• Width (in/ft/yd): 0.375 in
• Width (mm/cm/m): 9.53 mm
• Wire Gauge Range: 12 gauge to 10 gauge

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): Unavailable
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
