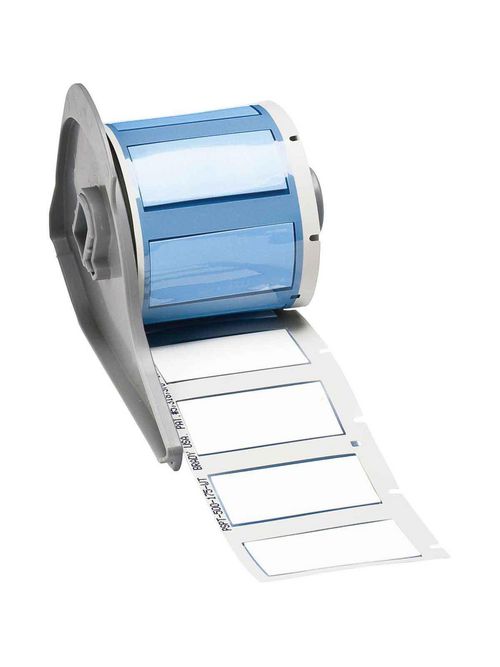

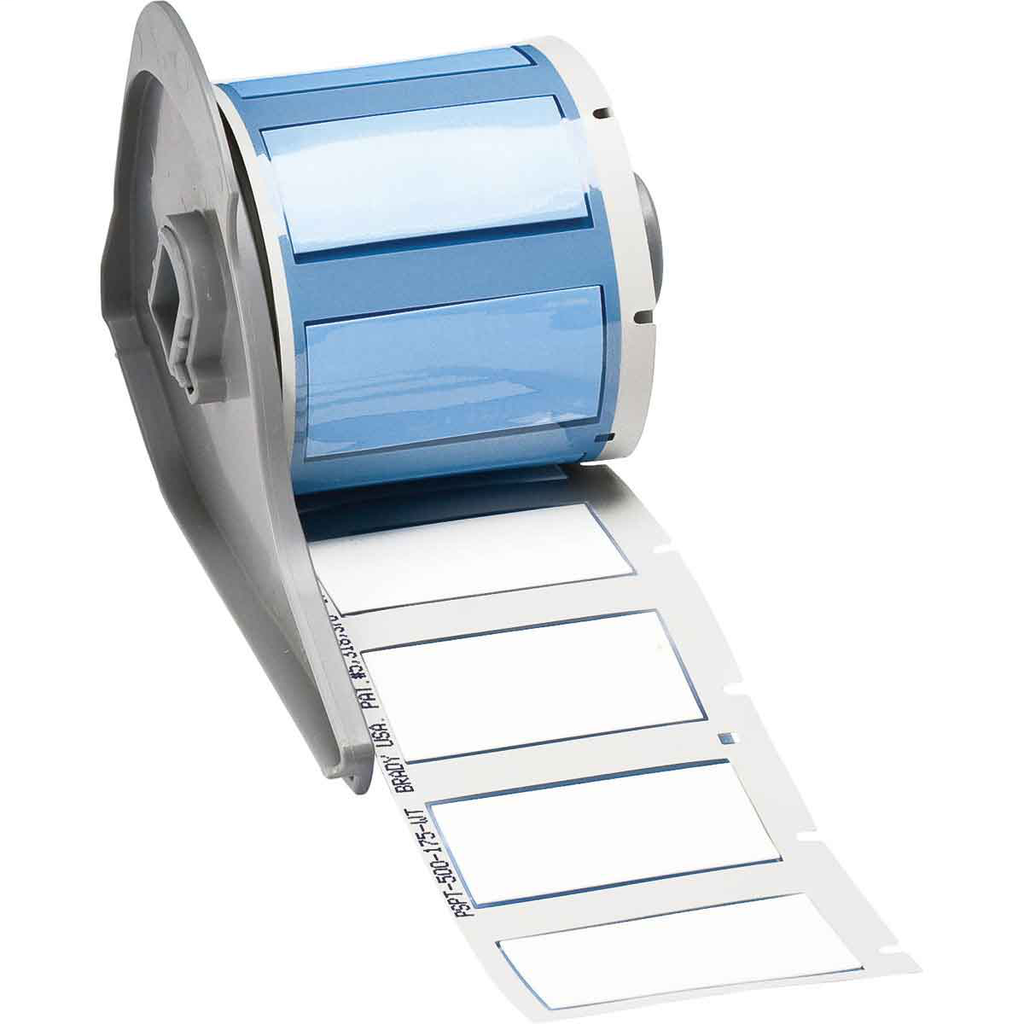

BRADY M71-500-175-344 Wire Mkr,BMP7
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$197.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # M71-500-175-344
North Coast Part # 1346791

Features

  • Ideal for use in the aerospace industry, specifically in planes powered by hydrogen fuel cells

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: White
  • Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
  • For Use with Printer: BMP®71 Label Printer
  • Label/Media Format: Roll
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printable Sides: Single-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BMP71; TLS-PC LINK; TLSPC LINK
  • Printer Compatibility (Print): BMP71
  • Quantity per Roll: 100
  • Quantity per Row: 1
  • Recommended Ribbon: M71-R6600
  • Ribbon Series: R6600
  • Shrink Ratio: 3:1
  • Suggested Ribbon Series: R6000 Halogen Free; R6600
  • Total Qty per Pack: 100 Sleeve(s) / Roll
  • Total Quantity: 100
  • Trade Name: BMP®71 PermaSleeve®
  • Adhesive (Y/N): No
  • Brady Material Number: B-344
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-344
  • Diameter as Supplied (in/ft/yd): 0.5 in
  • Diameter as Supplied (mm/cm/m): 12.7 mm
  • Dimensions: 0.851 in H x 1.765 in W
  • Dimensions (Metric): 44.45 mm W x 21.60 mm H
  • Dimensions 2: 0.851 in H x 1.765 in W
  • Height (in/ft/yd): 0.851 in
  • Height (mm/cm/m): 21.60 mm
  • Maximum Service Temperature °C: 130.6 °C
  • Maximum Service Temperature °F: 267 °F
  • Maximum Wire Diameter (in/ft/yd): 0.45 in
  • Maximum Wire Diameter (mm/cm/m): 11.43 mm
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.166 in
  • Minimum Wire Diameter (mm/cm/m): 4.21 mm
  • Recovered Diameter (in/ft/yd): 0.166 in
  • Recovered Diameter (mm/cm/m): 4.2 mm
  • Roll Width (in/ft/yd): 1.75 in
  • Roll Width (mm/cm/m): 44.5 mm
  • Sign Size-General: 0.851 in x 1.765 in
  • Size - Width (mm): 44.45 mm
  • Sleeve Size (in/ft/yd): 0.5 in Dia x 1.75 in W
  • Sleeve Size (mm/cm/m): 12.7 mm Dia x 44.5 mm W
  • Sleeve Width (in/ft/yd): 1.75 in
  • Sleeve Width (mm/cm/m): 44.5 mm
  • Vertical Repeat: 1.25 in
  • Width (in/ft/yd): 1.765 in
  • Wire Diameter Range: 0.166 in to 0.45 in

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • DOT Regulated Product: No = not regulated by DOT
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

GTiN 00662820919674
Width 1.765 in
Color White
Type Heat Shrink Tubing
Diameter 0.5 in
Material Polyolefin
Shrink Ratio 3:1
Applications Cable & Wire Marking; Panel Labeling
Height 0.851 in
Wire Size 0.166-0.45 in
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 267 degrees F
Min Operating Temperature -67 degrees F
Roll Width 1.75 in
Sub Brand BMP71 Series
CA Prop65 Warning Y
Product UPC 66282091967
Max Temperature 267 degrees F
Min Temperature -67 degrees F
