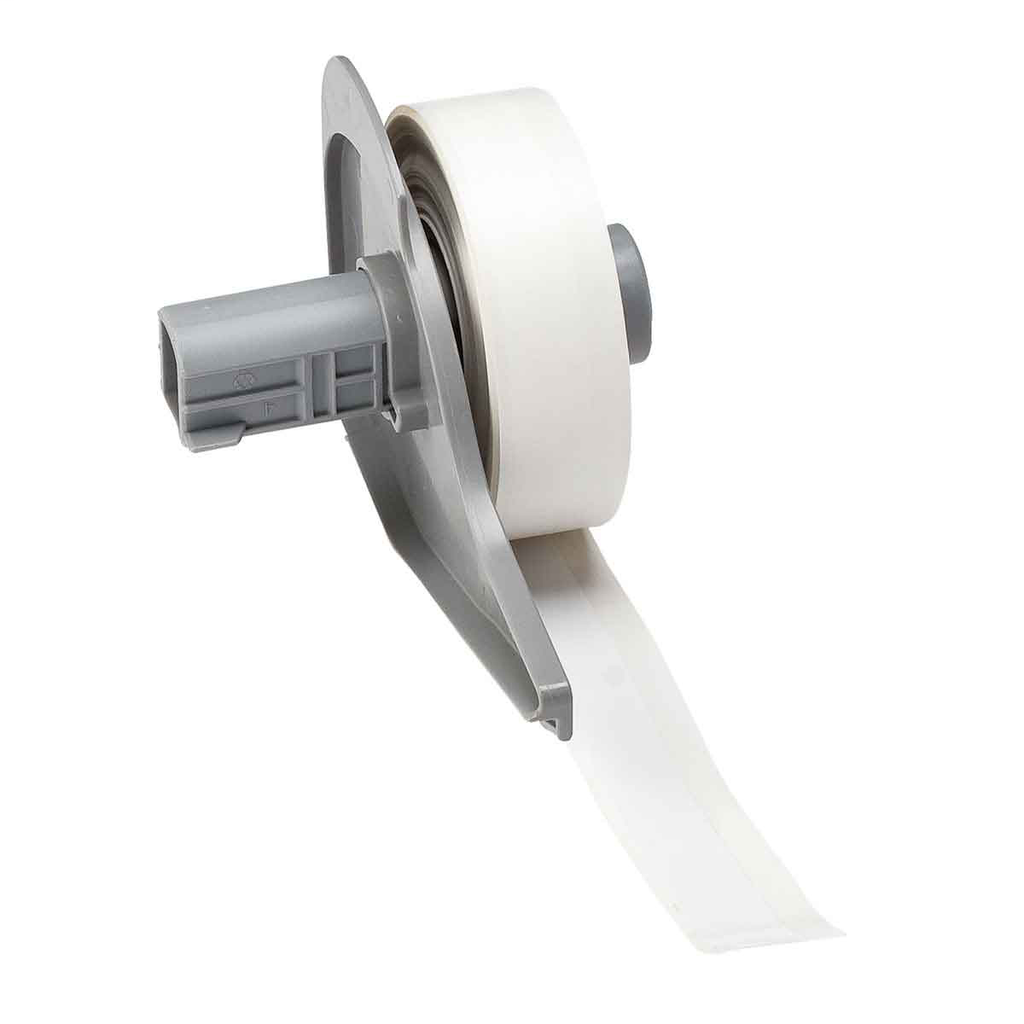

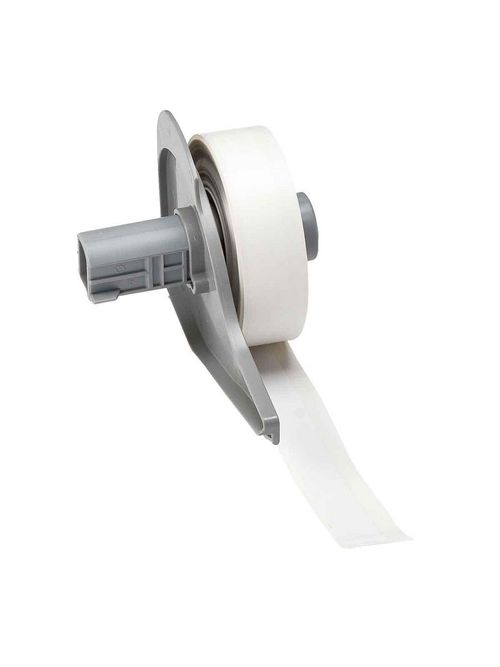

BRADY M71C-500-498 Label,BMP71,B498
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$39.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # M71C-500-498
North Coast Part # 759957

Features

  • The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
  • Sticks to any clean, dry surface
  • Specially formulated topcoat for excellent print quality
  • Semi-gloss finish for crisp, clean look

Specifications

  • Applications: Barcode Labeling; Component and Equipment Labeling; General Identification; Wire and Cable Labeling
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: White
  • Compatible Surface Types: Low Surface Energy
  • Diagram: Icon 5 (circle with centre dot)
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
  • Finish: Semi-gloss
  • For Use with Printer: BMP®71 Label Printer
  • Label/Media Format: Roll
  • Manufacturer Part Number: M71C-500-498
  • Max. Lines of Text: 5
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BMP71
  • Printer Compatibility (Print): BMP71
  • Quantity per Row: 1
  • Recommended Ribbon: M71-R6200
  • Ribbon Series: M71-R6200
  • Shape: Continuous
  • Suggested Ribbon Series: R4300; R6000 Halogen Free; R6200
  • Total Qty per Pack: 1 Roll(s) / Box
  • Trade Name: CleanLift
  • Adhesive Type: Repositionable Rubber
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-498
  • Label Properties: Repositionable Labels
  • Material: Vinyl Cloth
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-498
  • Dimensions (Metric): 12.70 mm W x 9.10 m L
  • Label/Tape Size (in/ft/yd): 0.5 in W x 30 ft L
  • Maximum Service Temperature °C: 80 °C
  • Maximum Service Temperature °F: 176 °F
  • Minimum Application Temperature °C: 10 °C
  • Minimum Application Temperature °F: 50 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Ribbon Size (in/ft/yd): 30 ft L
  • Roll Length (in/ft/yd): 30 ft
  • Roll Length (mm/cm/m): 9.14 m
  • Roll Width (in/ft/yd): 0.5 in
  • Roll Width (mm/cm/m): 12.7 mm
  • Roll/Tape Size (mm/cm/m): 12.7 mm W x 9.14 m L
  • Size - Length (m): 9.10 m
  • Size - Width (mm): 12.70 mm
  • Thickness (in/ft/yd): 0.0073 in
  • Thickness (mm/cm/m): 0.185 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282080146
GTiN 00662820801467
Length 9.10 m
Finish Semi-Gloss
Width 12.70 mm
Adhesive Type Removable Acrylic
Color White
Type Label
Thickness 0.007 in
Material Vinyl
Applications Barcode Labeling; Cable & Wire Marking; Component & Equipment ID; General & Industrial ID
Shape Continuous
Family Brand Name Brady
Roll Width 0.5 in
Roll Length 30 ft
Sub Brand BMP71 Series CleanLift
CA Prop65 Warning N
Max Temperature 176 degrees F
Min Temperature -40 degrees F
