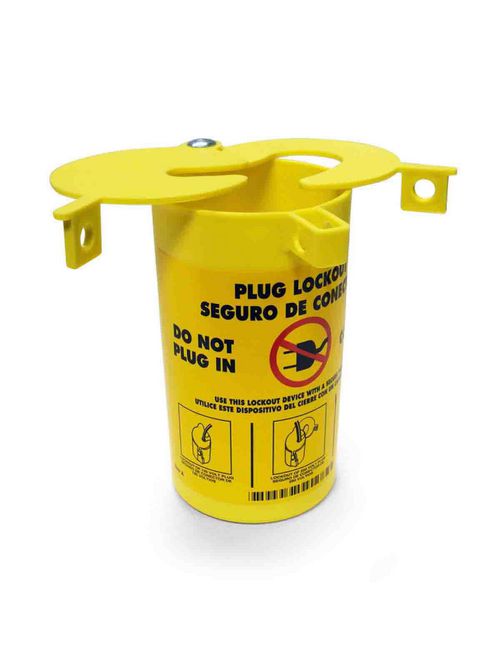

Brady PLO23 3-In-1 Prinzing Lockout Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$18.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PLO23
North Coast Part # 420963

Features

  • The 3-In-1 Plug Lockout has 2 rotating top lids that can be used individually or together to fit small, medium & large-diameter cords up to 1-1/4 in.
  • Plug lockout is made of bright yellow thermoplastic material
  • Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
  • Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices

Specifications

  • Barcode (Printed on Liner): No
  • Brand Name: Brady®
  • Color: Yellow
  • Enables Industry Compliance: OSHA 1910.147
  • Labels Supplied: Yes
  • Language: English; Spanish
  • Maximum Number of Padlocks: 1
  • Plug Lockout Type: Plug-Encasing
  • Primary Noun, Basic Function: Lockout Device
  • Risk Type: Electrical Risk
  • Text Legend: PLUG LOCKOUT DO NOT PLUG IN
  • Total Qty per Pack: 1 Piece(s) / Pack
  • Adhesive (Y/N): No
  • Brady Material Number: LOTO-28
  • Lockout Material: Thermoplastic Elastomer
  • Material: Polypropylene
  • SAP B-Number: LOTO-28
  • Depth (in/ft/yd): 3.5 in
  • Depth (mm/cm/m): 88.14 mm
  • Diameter (mm/cm/m): 88.14 mm
  • Dimensions: 6.25 in H x 5.2 in W x 3.5 in D
  • Dimensions (Metric): 158.75 mm H x 88.14 mm Dia x 88.14 mm D
  • Height (in/ft/yd): 6.25 in
  • Height (mm/cm/m): 158.75 mm
  • Length (mm/cm/m): 158.8 mm
  • Maximum Cord Diameter (in/ft/yd): 1.25 in
  • Maximum Cord Diameter (mm/cm/m): 31.75 mm
  • Maximum Plug Diameter (in/ft/yd): 3 in
  • Maximum Plug Diameter (mm/cm/m): 76.2 mm
  • Maximum Plug Length (in/ft/yd): 5.5 in
  • Maximum Plug Length (mm/cm/m): 139.7 mm
  • Maximum Plug Size (in/ft/yd): 5.5 in L x 3 in Dia
  • Maximum Service Temperature °C: 80 °C
  • Maximum Shackle Diameter (in/ft/yd): 0.37 in
  • Maximum Shackle Diameter (mm/cm/m): 9.4 mm
  • Maximum Wire Diameter (mm/cm/m): 31.00 mm
  • Minimum Service Temperature °C: -20 °C
  • Minimum Wire Diameter (mm/cm/m): 31.00 mm
  • Plug Voltage: 125/250/600 V
  • Sign Size-General: 6.25 in x 5.2 in
  • Width (in/ft/yd): 5.2 in
  • Width (mm/cm/m): 132.08 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447345842
GTiN 00754473458423
Length 158.8 mm
Width 5.2 in
Color Yellow
Type 3-In-1, Bilingual
Diameter 3.47 IN
Material Thermoplastic Elastomer
Applications For Electrical Risk Lockouts
Depth 3.47 in
Height 6-1/4 in
Family Brand Name Brady
Shackle Diameter 0.37 IN
Used With 5-1/2 x 3 in Plugs
Legend Plug Lockout Do Not Plug In
Sub Brand 3-IN-1
CA Prop65 Warning N
Max Temperature 80 C
Min Temperature -20 C
