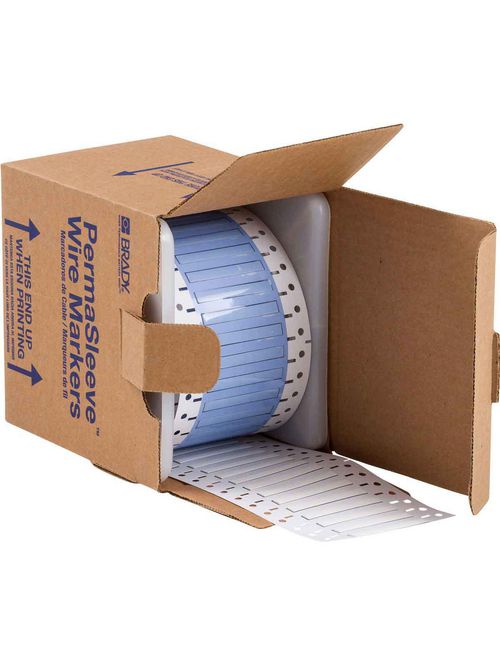

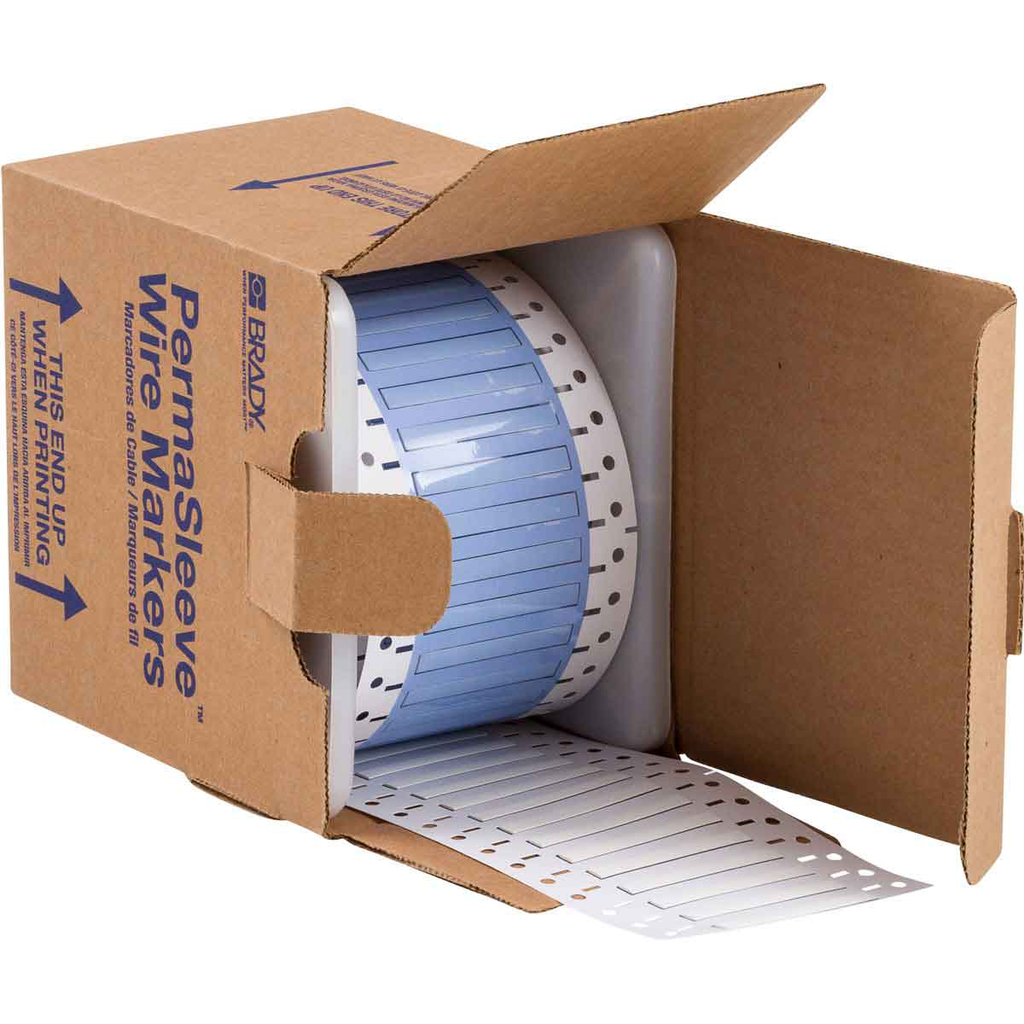

Brady PS-125-2-WT-S 0.11 x 2 x 0.235 Inch White Polyolefin Wire Marking Sleeve
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$287.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PS-125-2-WT-S
North Coast Part # 213449

Features

  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

  • Applications: Wire and Cable Labeling
  • Brand Name: Brady®
  • Color: White
  • Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
  • Finish: Matte
  • For Use with Printer: BBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
  • Label/Media Format: Roll
  • Markers per Roll: 500
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printable Sides: Single-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BBP12; BBP11; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
  • Printer Compatibility (Print): BBP12; BBP72; i7100; i5100
  • Quantity per Roll: 500
  • Quantity per Row: 1
  • Recommended Ribbon: IP-R6600; R6600
  • Ribbon Series: R6600
  • Shape: Rectangle
  • Shrink Ratio: 3:1
  • Suggested Ribbon Series: R4300; R4502S; R5000; R6600; R6700
  • Total Qty per Pack: 500 Sleeve(s) / Roll
  • Total Quantity: 500
  • Trade Name: PermaSleeve®
  • Brady Material Number: B-342
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-342
  • Core Diameter (mm/cm/m): 76.20 mm
  • Diameter as Supplied (in/ft/yd): 0.125 in
  • Diameter as Supplied (mm/cm/m): 3.2 mm
  • Dimensions: 0.235 in H
  • Dimensions (Metric): 50.80 mm W x 6.00 mm H
  • Dimensions 2: 0.235 in H
  • Height (in/ft/yd): 0.235 in
  • Height (mm/cm/m): 6.00 mm
  • Maximum Service Temperature °C: 135 °C
  • Maximum Service Temperature °F: 275 °F
  • Maximum Wire Diameter (in/ft/yd): 0.11 in
  • Maximum Wire Diameter (mm/cm/m): 2.79 mm
  • Maximum Wire Gauge: 16 AWG
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.046 in
  • Minimum Wire Diameter (mm/cm/m): 1.17 mm
  • Minimum Wire Gauge: 22 AWG
  • Recovered Diameter (in/ft/yd): 0.046 in
  • Recovered Diameter (mm/cm/m): 1.2 mm
  • Roll Width (in/ft/yd): 2 in
  • Roll Width (mm/cm/m): 50.8 mm
  • Size - Width (mm): 50.80 mm
  • Sleeve Size (in/ft/yd): 0.125 in Dia x 2 in W
  • Sleeve Size (mm/cm/m): 3.2 mm Dia x 50.8 mm W
  • Sleeve Width (in/ft/yd): 2 in
  • Sleeve Width (mm/cm/m): 50.8 mm
  • Vertical Repeat: 0.5 in
  • Vertical Repeat (mm): 12.70 mm
  • Web Width (mm/cm/m): 89.00 mm
  • Wire Diameter Range: 0.046 in to 0.11 in
  • Wire Gauge Range: 22 AWG to 16 AWG

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282032143
GTiN 00662820321439
Finish Matte
Width 50.80 mm
Color White
Type Heat Shrink Tubing
Diameter 0.125 in Diameter as Supplied
Material Polyolefin
Shrink Ratio 3:1
Applications Cable & Wire Marking
Height 0.235 in
Wire Size 22-16 AWG
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 275 F
Min Operating Temperature -67 F
Roll Width 2 in
Sub Brand PermaSleeve
CA Prop65 Warning Y
Max Temperature 275 degrees F
Min Temperature -67 degrees F
