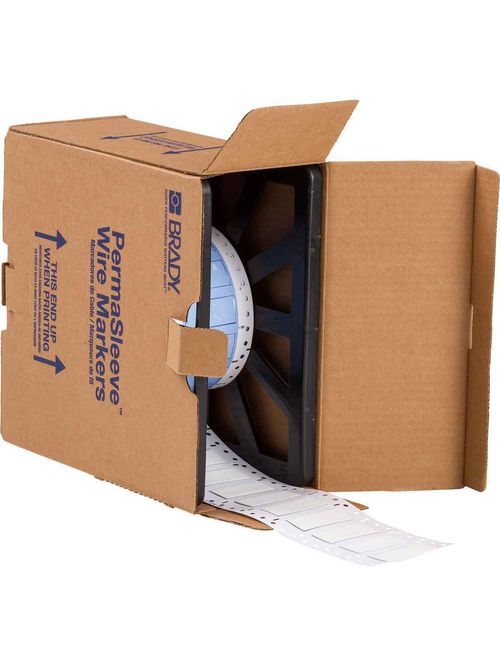

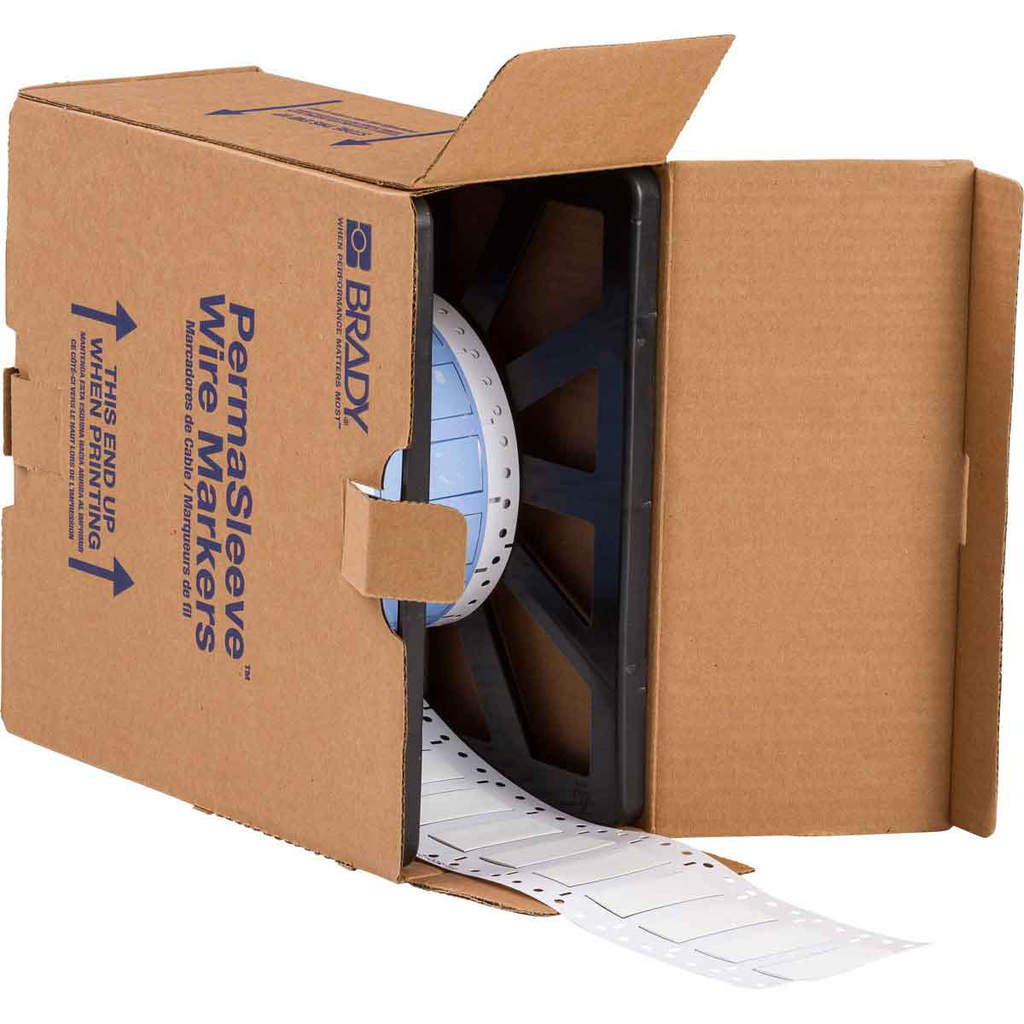

Brady PS-500-2-WT 0.500 Inch Diameter Polyolefin White Shrink Wire Marker Sleeve Roll

Features

• 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
• Fade-resistant and smudge-proof for superior aesthetic appearance
• Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
• Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

• Applications: Wire and Cable Labeling
• Brand Name: Brady®
• Color: White
• Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
• Finish: Matte
• For Use with Printer: BBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
• Label/Media Format: Roll
• Markers per Roll: 500
• Primary Noun, Basic Function: Sleeve
• Print Technology: Thermal Transfer
• Printable Sides: Single-Side Printable
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: BBP12; BBP11; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
• Printer Compatibility (Print): BBP12; BBP72; i7100; i5100
• Quantity per Roll: 500
• Quantity per Row: 1
• Recommended Ribbon: IP-R6600; R6600
• Ribbon Series: R6600
• Shape: Rectangle
• Shrink Ratio: 3:1
• Suggested Ribbon Series: R4300; R4502S; R5000; R6600; R6700
• Total Qty per Pack: 500 Sleeve(s) / Roll
• Total Quantity: 500
• Trade Name: PermaSleeve®
• Brady Material Number: B-342
• Label Properties: Heat Shrink Sleeves
• Material: Heat-shrink Polyolefin
• Material Properties: Flame-retardant; Heat-shrinkable
• Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-342
• Core Diameter (mm/cm/m): 76.20 mm
• Diameter as Supplied (in/ft/yd): 0.5 in
• Diameter as Supplied (mm/cm/m): 12.7 mm
• Dimensions: 0.851 in H
• Dimensions (Metric): 50.80 mm W x 21.60 mm H
• Dimensions 2: 0.851 in H
• Height (in/ft/yd): 0.851 in
• Height (mm/cm/m): 21.60 mm
• Maximum Service Temperature °C: 135 °C
• Maximum Service Temperature °F: 275 °F
• Maximum Wire Diameter (in/ft/yd): 0.45 in
• Maximum Wire Diameter (mm/cm/m): 11.43 mm
• Maximum Wire Gauge: 1 AWG
• Minimum Service Temperature °C: -55 °C
• Minimum Service Temperature °F: -67 °F
• Minimum Wire Diameter (in/ft/yd): 0.187 in
• Minimum Wire Diameter (mm/cm/m): 4.75 mm
• Minimum Wire Gauge: 8 AWG
• Recovered Diameter (in/ft/yd): 0.187 in
• Recovered Diameter (mm/cm/m): 4.8 mm
• Roll Width (in/ft/yd): 2 in
• Roll Width (mm/cm/m): 50.8 mm
• Size - Width (mm): 50.80 mm
• Sleeve Size (in/ft/yd): 0.5 in Dia x 2 in W
• Sleeve Size (mm/cm/m): 12.7 mm Dia x 50.8 mm W
• Sleeve Width (in/ft/yd): 2 in
• Sleeve Width (mm/cm/m): 50.8 mm
• Vertical Repeat: 1.25 in
• Vertical Repeat (mm): 31.75 mm
• Web Width (mm/cm/m): 89.00 mm
• Wire Diameter Range: 0.187 in to 0.45 in
• Wire Gauge Range: 8 AWG to 1 AWG

Regulatory Information

• CA Prop 65 Labeled: Yes
• CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
• Contains CA PROP 65 Substance: Yes Contains-Label required
• Contains CA PROP 65 Substance: Yes
• Contains CA PROP 65 Warning Type: Cancer
• Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
