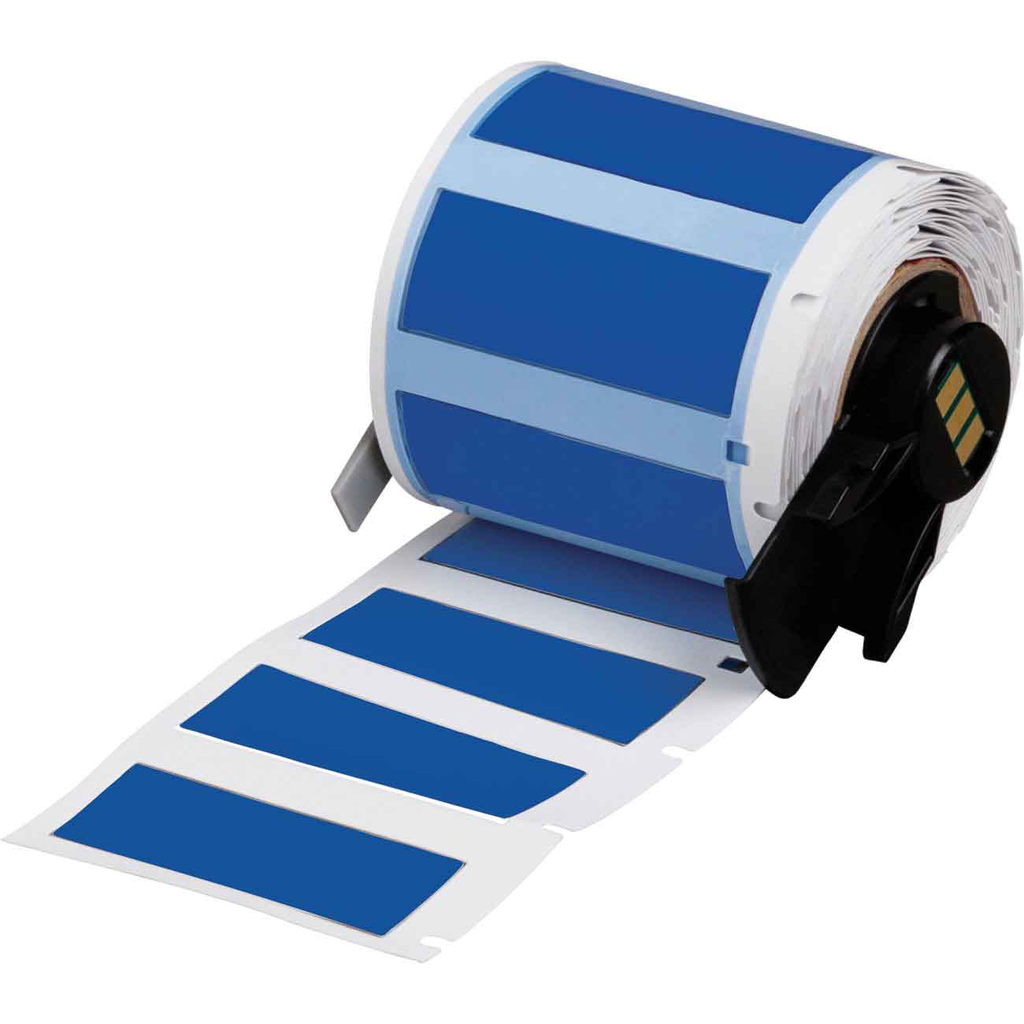

BRADY PSPT-375-175-BL Mkr,BMP71/TLS

Features

• 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
• Fade-resistant and smudge-proof for superior aesthetic appearance
• Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
• Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Specifications

• Applications: Electrical Labeling; Wire and Cable Labeling
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: Blue
• Diagram: Icon 14 (v)
• Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
• Finish: Matte
• For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
• Label/Media Format: Roll
• Max. Lines of Text: 5
• Primary Noun, Basic Function: Sleeve
• Print Technology: Thermal Transfer
• Printable Sides: Single-Side Printable
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
• Printer Compatibility (Print): M611; BMP61; BMP71
• Quantity per Roll: 100
• Quantity per Row: 1
• Recommended Ribbon: M61-R6610; M71-R6600; R6610
• Ribbon Series: R4310
• Shape: Rectangle
• Shrink Ratio: 3:1
• Suggested Ribbon Series: R4300; R4502S; R5000; R6600; R6700
• Total Qty per Pack: 100 Sleeve(s) / Roll
• Total Quantity: 100
• Trade Name: BMP®61 BMP®71 TLS 2200® TLS-PC Link™ PermaSleeve®
• Brady Material Number: B-342
• Label Properties: Heat Shrink Sleeves
• Material: Heat-shrink Polyolefin
• Material Properties: Flame-retardant; Heat-shrinkable
• Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-342
• Diameter as Supplied (in/ft/yd): 0.375 in
• Diameter as Supplied (mm/cm/m): 9.5 mm
• Dimensions: 0.645 in H x 1.765 in W
• Dimensions (Metric): 44.83 mm W x 16.38 mm H
• Dimensions 2: 0.645 in H x 1.765 in W
• Height (in/ft/yd): 0.645 in
• Height (mm/cm/m): 16.38 mm
• Maximum Service Temperature °C: 135 °C
• Maximum Service Temperature °F: 275 °F
• Maximum Wire Diameter (in/ft/yd): 0.32 in
• Maximum Wire Diameter (mm/cm/m): 8.13 mm
• Maximum Wire Gauge: 6 AWG
• Minimum Service Temperature °C: -55 °C
• Minimum Service Temperature °F: -67 °F
• Minimum Wire Diameter (in/ft/yd): 0.125 in
• Minimum Wire Diameter (mm/cm/m): 3.18 mm
• Minimum Wire Gauge: 12 AWG
• Recovered Diameter (in/ft/yd): 0.125 in
• Recovered Diameter (mm/cm/m): 3.2 mm
• Roll Width (in/ft/yd): 1.75 in
• Roll Width (mm/cm/m): 44.5 mm
• Sign Size-General: 0.645 in x 1.765 in
• Size - Width (mm): 44.83 mm
• Sleeve Size (in/ft/yd): 0.375 in Dia x 1.75 in W
• Sleeve Size (mm/cm/m): 9.5 mm Dia x 44.5 mm W
• Sleeve Width (in/ft/yd): 1.75 in
• Sleeve Width (mm/cm/m): 44.5 mm
• Vertical Repeat: 1 in
• Vertical Repeat (mm): 25.40 mm
• Width (in/ft/yd): 1.765 in
• Wire Diameter Range: 0.125 in to 0.32 in
• Wire Gauge Range: 12 AWG to 6 AWG

Regulatory Information

• CA Prop 65 Labeled: Yes
• CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
• Contains CA PROP 65 Substance: Yes Contains-Label required
• Contains CA PROP 65 Substance: Yes
• Contains CA PROP 65 Warning Type: Cancer
• Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
