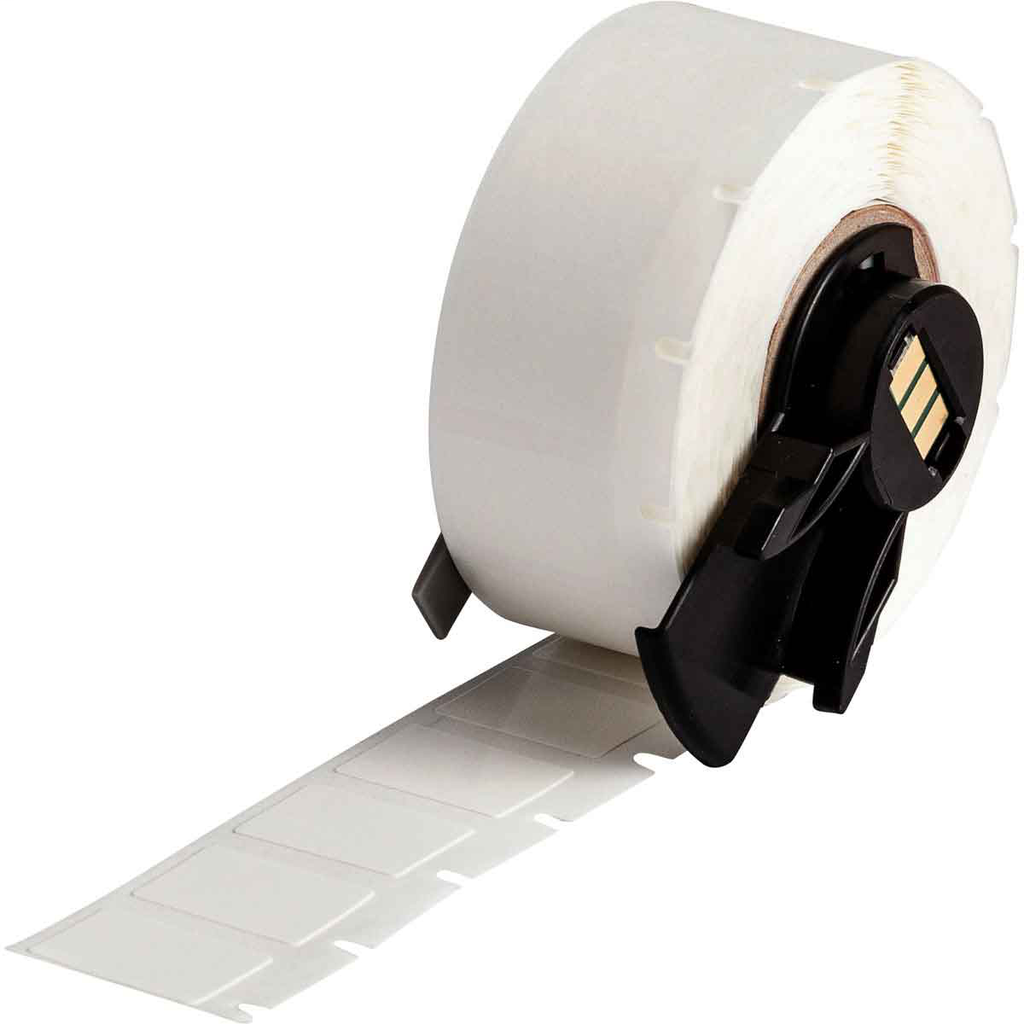

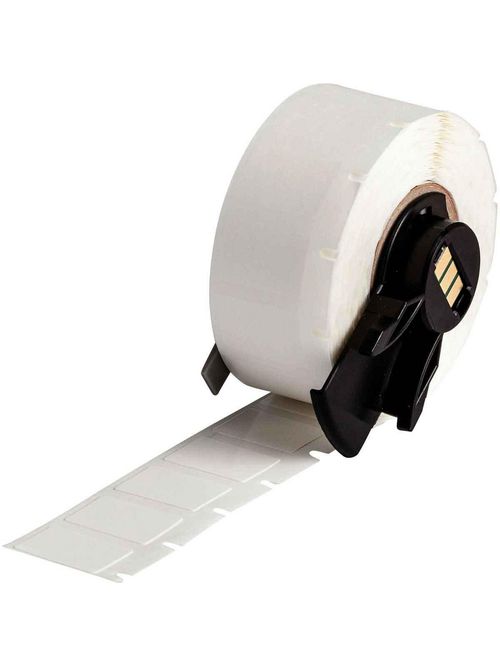

Brady PTL-11-498 500/Pack 0.5 x 0.75 Inch Vinyl Cloth White Semi-Gloss Label Roll
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$55.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PTL-11-498
North Coast Part # 11255

Features

  • The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
  • Sticks to any clean, dry surface
  • Specially formulated topcoat for excellent print quality
  • Semi-gloss finish for crisp, clean look

Specifications

  • Applications: Barcode Labeling; Circuit Board Labeling; General Identification; Laboratory Labeling; Wire and Cable Labeling
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: White
  • Compatible Surface Types: Low Surface Energy
  • Diagram: Icon 3 (triangle)
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
  • Finish: Semi-gloss
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Roll
  • Manufacturer Part Number: PTL-11-498
  • Max. Lines of Text: 8
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
  • Printer Compatibility (Print): M611; BMP61; BMP71
  • Quantity per Roll: 500
  • Quantity per Row: 1
  • Recommended Ribbon: M61-R6210; M71-R6200; R6210
  • Ribbon Series: R6210
  • Secondary Label Included: Secondary Label is Not Included
  • Shape: Rectangle
  • Suggested Ribbon Series: R4300; R6200
  • Total Qty per Pack: 500 Label(s) / Roll
  • Total Quantity: 500
  • Trade Name: CleanLift
  • Adhesive Type: Repositionable Rubber
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-498
  • Label Properties: Repositionable Labels
  • Material: Vinyl Cloth
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-498
  • Dimensions: 0.75 in H x 0.5 in W
  • Dimensions (Metric): 12.70 mm W x 19.05 mm H
  • Dimensions 2: 0.75 in H x 0.5 in W
  • Height (in/ft/yd): 0.75 in
  • Height (mm/cm/m): 19.05 mm
  • Label/Tape Size (in/ft/yd): 0.75 in H x 0.5 in W
  • Maximum Service Temperature °C: 80 °C
  • Maximum Service Temperature °F: 176 °F
  • Maximum Wire Diameter (mm/cm/m): 5.11 mm
  • Maximum Wire Gauge: 10 gauge
  • Minimum Application Temperature °C: 10 °C
  • Minimum Application Temperature °F: 50 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Minimum Wire Gauge: 16 gauge
  • Printable Area Dimensions (Metric): 19.05 mm H x 12.7 mm W
  • Printable Area Height (mm/cm/m): 19.05 mm
  • Printable Area Width (mm/cm/m): 12.7 mm
  • Sign Size-General: 0.75 in x 0.5 in
  • Size - Width (mm): 12.70 mm
  • Thickness (in/ft/yd): 0.0073 in
  • Thickness (mm/cm/m): 0.185 mm
  • Vertical Repeat: 0.625 in
  • Vertical Repeat (mm): 22.22 mm
  • Vial/Tube Size: 0.5 - 0.7 ml
  • Width (in/ft/yd): 0.5 in
  • Width (mm/cm/m): 12.7 mm
  • Wire Gauge Range: 16 gauge to 10 gauge

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282062660
GTiN 00662820626602
Finish Semi-Gloss
Width 1/2 in
Adhesive Type Repositionable Rubber Based
Color White
Type Rectangular
Thickness 0.0073 in
Material B-498 Vinyl Coated Fabric
Applications For Barcode Labeling, Cable and Wire Marking, Circuit Board ID - Through Hole Top, Component and Equipment ID, General and Industrial ID, Laboratory ID - Bottle, Tube and Vial, Laboratory ID - Centrifuge Tube, Laboratory ID - Eppendorf Tube, Indoor use
Height 0.75 in
Wire Size 16-10 AWG
Cable Size 16-10 AWG
Temperature Rating -40 to 175 F
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 176 F
Standard Packaging Qty 500/Pack
Min Operating Temperature -40 F
Used With BMP 71 Thermal Transfer Label Printer, TLS 2200 Thermal Labeling System, TLS-PC LINK Thermal Labeling System
Sub Brand BMP71, CleanLift, TLS 2200
CA Prop65 Warning N
Max Temperature 176 degrees F
Min Temperature -40 degrees F
