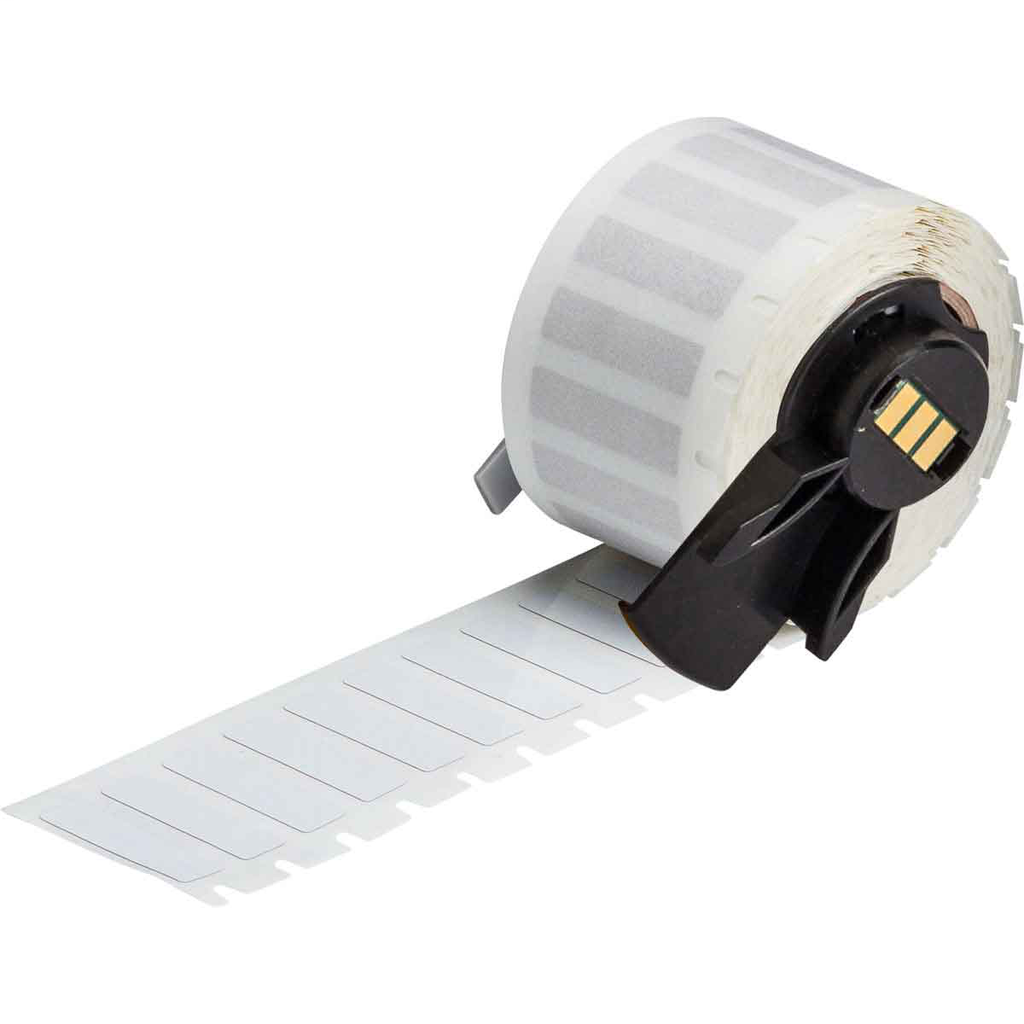

BRADY PTL-13-727 Label,BMP71/TLS,B7
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$169.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PTL-13-727
North Coast Part # 1161699

Features

  • Ultra-durable adhesive is designed for use with extreme wash protocol and cleaning chemicals, and is ideal for use in auto apply equipment
  • Glossy white polyimide material is thermal transfer printable
  • UL Approved;Meets requirements of MIL-STD-202G, Method 215K
  • Service temperature of -94 to 212° F (-70 to 100° C)

Specifications

  • Applications: Circuit Board Labeling
  • Board Application: SMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: White
  • Compatible Surface Types: High Surface Energy
  • Diagram: Icon 3 (triangle)
  • Finish: Gloss
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Roll
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Circuit Board
  • Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
  • Printer Compatibility (Print): M611; BMP61; BMP71
  • Quantity per Roll: 750
  • Quantity per Row: 1
  • Recommended Ribbon: M61-R6010; M71-R6000; R6010
  • Ribbon Series: R6000HF
  • Secondary Label Included: Secondary Label is Not Included
  • Shape: Rectangle
  • Suggested Ribbon Series: R6000 Halogen Free
  • Total Qty per Pack: 750 Label(s) / Box
  • Total Quantity: 750
  • Trade Name: UltraTemp®
  • Adhesive (Y/N): Yes
  • Adhesive Type: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-727
  • Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyimide
  • SAP B-Number: B-727
  • Dimensions: 0.25 in H x 0.9 in W
  • Dimensions (Metric): 22.86 mm W x 6.35 mm H
  • Dimensions 2: 0.25 in H x 0.9 in W
  • Height (in/ft/yd): 0.25 in
  • Height (mm/cm/m): 6.35 mm
  • Label/Tape Size (in/ft/yd): 0.25 in H x 0.9 in W
  • Maximum Service Temperature °C: 300 °C
  • Maximum Service Temperature °F: 572 °F
  • Minimum Service Temperature °C: -70 °C
  • Minimum Service Temperature °F: -94 °F
  • Printable Area Dimensions (Metric): 6.35 mm H x 22.86 mm W
  • Printable Area Height (mm/cm/m): 6.35 mm
  • Printable Area Width (mm/cm/m): 22.86 mm
  • Sign Size-General: 0.25 in x 0.9 in
  • Size - Width (mm): 22.86 mm
  • Thickness (in/ft/yd): 0.0044 in
  • Thickness (mm/cm/m): 0.112 mm
  • Vertical Repeat: 0.375 in
  • Vertical Repeat (mm): 9.53 mm
  • Width (in/ft/yd): 0.9 in
  • Width (mm/cm/m): 22.86 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

GTiN 00754473932923
Finish Gloss
Width 0.9 in
Adhesive Type Permanent Acrylic
Color White
Type Label
Thickness 0.004 in
Material Polyimide
Height 0.25 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 572 degrees F
Min Operating Temperature -94 degrees F
Sub Brand BMP71 TLS 2200 Series UltraTemp
CA Prop65 Warning N
Product UPC 75447393292
Max Temperature 572 degrees F
Min Temperature -94 degrees F
