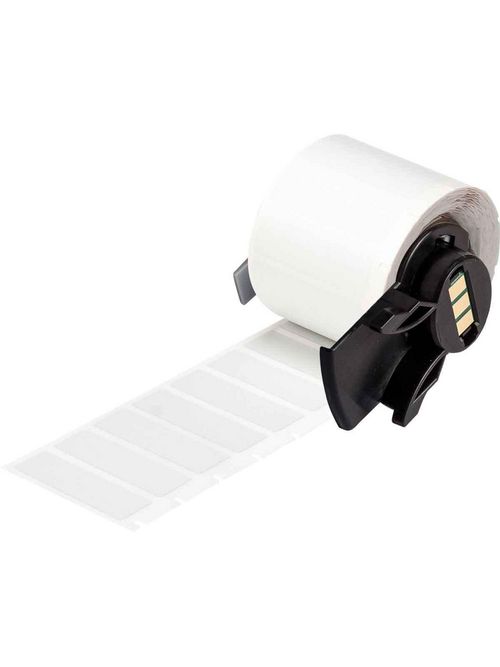

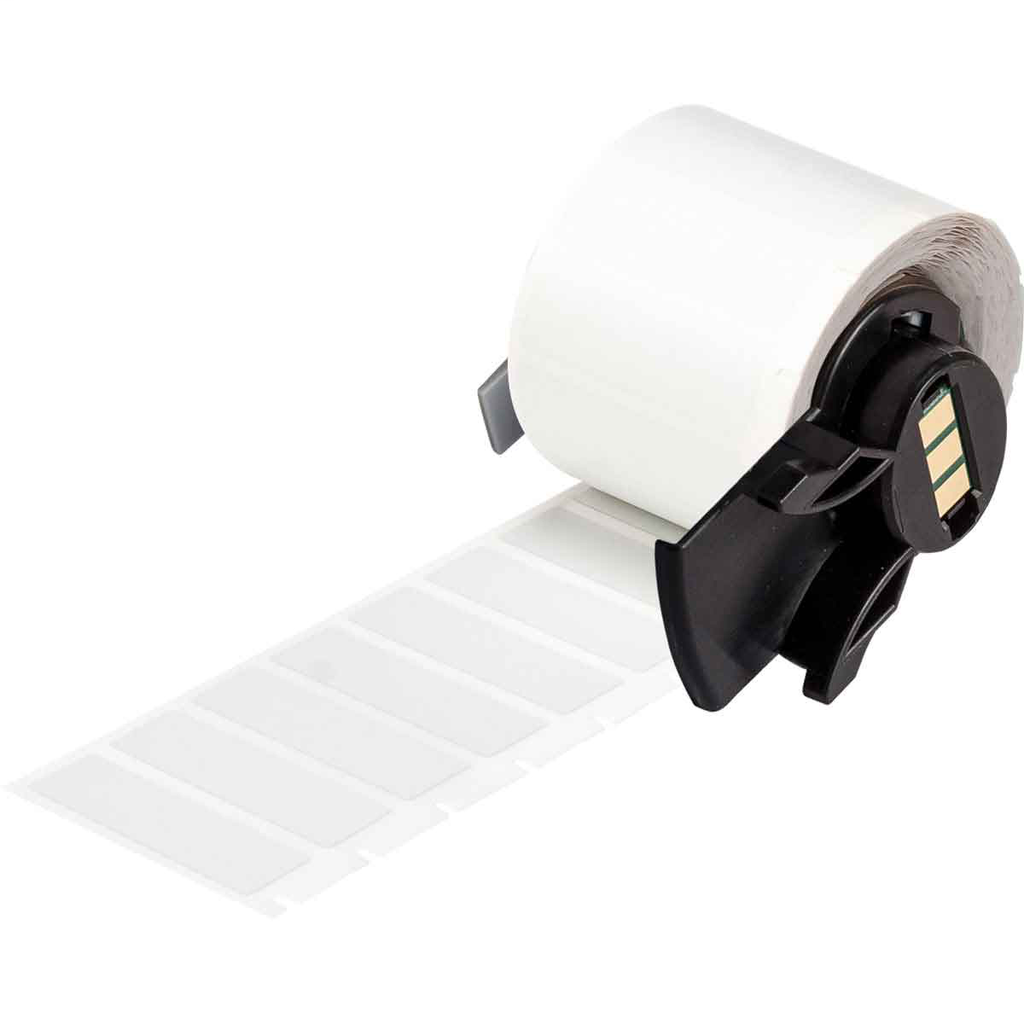

BRADY PTL-29-428 Lbl,BMP71/TLS,B428
Product image thumbnail 0
Product image thumbnail 1
$74.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PTL-29-428
North Coast Part # 155067

Features

  • Matte, light gray finish gives labels a rating and serial plate appearance
  • Labels are designed to withstand numerous solvents and variable temperatures when applied to various surfaces
  • UL approved;CSA accepted
  • Service temperature of -40 to 248° F (-40 to 120° C)

Specifications

  • Applications: Asset Tracking; Circuit Board Labeling; General Identification; Inventory and Inspection Labeling
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: Light Gray
  • Compatible Surface Types: High Surface Energy
  • Diagram: Icon 3 (triangle)
  • Enables Industry Compliance: ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
  • Finish: Matte
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Roll
  • Max. Lines of Text: 5
  • National Stock Number (NSN): 7690014980862
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: General Identification; Inspection Repair; Rating & Name Plates
  • Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
  • Printer Compatibility (Print): M611; BMP61; BMP71
  • Quantity per Roll: 500
  • Quantity per Row: 1
  • Recommended Ribbon: M61-R4310; M71-R4300; R4310
  • Ribbon Series: R4310
  • Shape: Rectangle
  • Suggested Ribbon Series: R4300
  • Total Qty per Pack: 500 Label(s) / Roll
  • Total Quantity: 500
  • Trade Name: MetaLabel
  • Adhesive Type: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-428
  • Label Properties: Heat Resistant Labels; Metallic Labels; Permanent Adhesive Labels
  • Material: Metallized Polyester
  • Material Properties: Metallic Appearance
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-428
  • Dimensions: 0.5 in H x 1.5 in W
  • Dimensions (Metric): 38.10 mm W x 12.70 mm H
  • Dimensions 2: 0.5 in H x 1.5 in W
  • Height (in/ft/yd): 0.5 in
  • Height (mm/cm/m): 12.70 mm
  • Label/Tape Size (in/ft/yd): 0.5 in H x 1.5 in W
  • Maximum Service Temperature °C: 120 °C
  • Maximum Service Temperature °F: 248 °F
  • Minimum Service Temperature °C: -70 °C
  • Minimum Service Temperature °F: -40 °F
  • Printable Area Dimensions (Metric): 12.7 mm H x 38.1 mm W
  • Printable Area Height (mm/cm/m): 12.7 mm
  • Printable Area Width (mm/cm/m): 38.1 mm
  • Sign Size-General: 0.5 in x 1.5 in
  • Size - Width (mm): 38.10 mm
  • Thickness (in/ft/yd): 0.0044 in
  • Thickness (mm/cm/m): 0.112 mm
  • Vertical Repeat: 0.625 in
  • Vertical Repeat (mm): 15.88 mm
  • Width (in/ft/yd): 1.5 in
  • Width (mm/cm/m): 38.1 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282018416
GTiN 00662820184164
Finish Matte
Width 1.5 in
Adhesive Type Permanent Acrylic
Color Light Gray
Type Label
Thickness 0.004 in
Material Metalized Polyester
Applications Asset Tracking; Circuit Board ID - Through Hole Top; General & Industrial ID; Rating Plates
Height 0.5 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 248 degrees F
Min Operating Temperature -40 degrees F
Sub Brand BMP71 TLS 2200 Series MetaLabel
CA Prop65 Warning N
Max Temperature 248 degrees F
Min Temperature -40 degrees F
