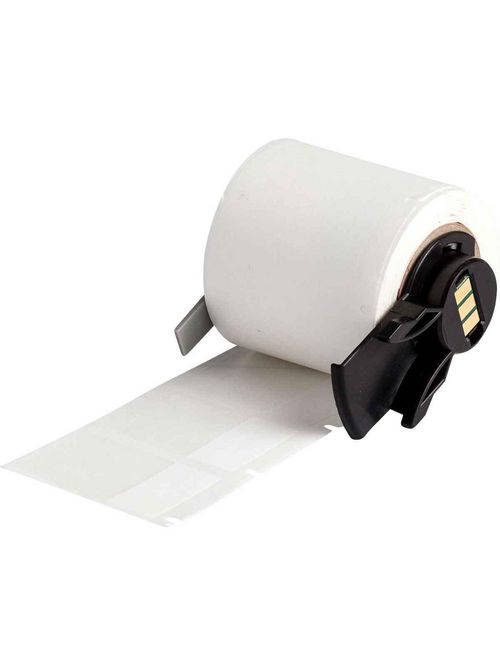

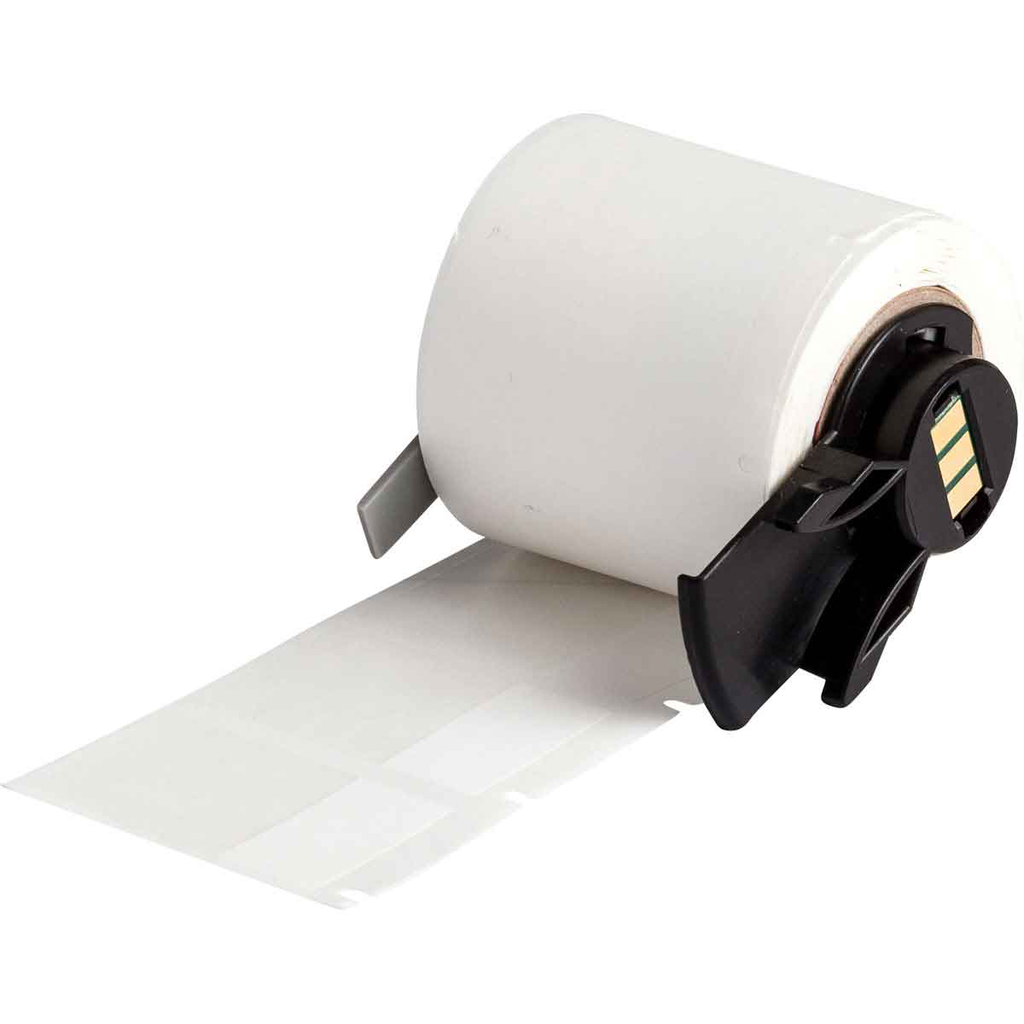

Brady PTL-31-642 1.000 x 1.500 Inch (25.40 x 38.10 mm) Self Laminating Vinyl Wire & Cable Labels

Features

• The self-extinguishing material is ideal for wire and cable marking applications in the aerospace, defense and mass transit industries
• Has excellent solvent resistance
• Self-laminating

Specifications

• Applications: Data and Telecommunications Labeling; Electrical Labeling; Wire and Cable Labeling
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: White/Translucent
• Compatible Surface Types: General
• Diagram: Icon 6 (D solid)
• Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155
• Finish: Matte
• For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
• Label/Media Format: Roll
• Max. Lines of Text: 5
• Primary Noun, Basic Function: Label
• Print Technology: Thermal Transfer
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
• Printer Compatibility (Print): M611; BMP61; BMP71
• Quantity per Roll: 250
• Quantity per Row: 1
• Recommended Ribbon: M61-R4310; M71-R4300; R4310
• Ribbon Series: R4310
• Shape: Rectangle
• Suggested Ribbon Series: R4300; R6200
• Total Qty per Pack: 250 Label(s) / Roll
• Total Quantity: 250
• Trade Name: BMP®61 BMP®71 TLS 2200® TLS-PC Link™
• Adhesive Type: Permanent Acrylic
• Brady Material Number: B-642
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Self Laminating Labels & Wraps
• Material: Polyvinylfluoride
• Material Properties: Flame-retardant; Self-laminating
• Overlaminate Included: Overlaminate Included
• Resistance Properties: Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-642
• Dimensions: 1.5 in H x 1 in W
• Dimensions (Metric): 25.40 mm W x 38.10 mm H
• Dimensions 2: 1.5 in H x 1 in W
• Height (in/ft/yd): 1.5 in
• Height (mm/cm/m): 38.10 mm
• Label/Tape Size (in/ft/yd): 1.5 in H x 1 in W
• Maximum Service Temperature °C: 120 °C
• Maximum Service Temperature °F: 248 °F
• Maximum Wire Diameter (in/ft/yd): 0.08 in
• Maximum Wire Diameter (mm/cm/m): 2.03 mm
• Maximum Wire Gauge: 4 gauge
• Minimum Application Temperature °C: 10 °C
• Minimum Application Temperature °F: 50 °F
• Minimum Service Temperature °C: -70 °C
• Minimum Service Temperature °F: -94 °F
• Minimum Wire Diameter (mm/cm/m): 4.00 mm
• Minimum Wire Gauge: 10 gauge
• Printable Area Dimensions: 0.5 in H x 1 in W
• Printable Area Dimensions (Metric): 12.70 mm H x 25.40 mm W
• Printable Area Height (in/ft/yd): 0.5 in
• Printable Area Height (mm/cm/m): 12.70 mm
• Printable Area Width (in/ft/yd): 1 in
• Printable Area Width (mm/cm/m): 25.40 mm
• Sign Size-General: 1.5 in x 1 in
• Size - Width (mm): 25.40 mm
• Thickness (in/ft/yd): 0.0022 in
• Thickness (mm/cm/m): 0.055 mm
• Vertical Repeat: 1.125 in
• Vertical Repeat (mm): 41.27 mm
• Width (in/ft/yd): 1 in
• Width (mm/cm/m): 25.4 mm
• Wire Gauge Range: 10 gauge to 4 gauge

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
