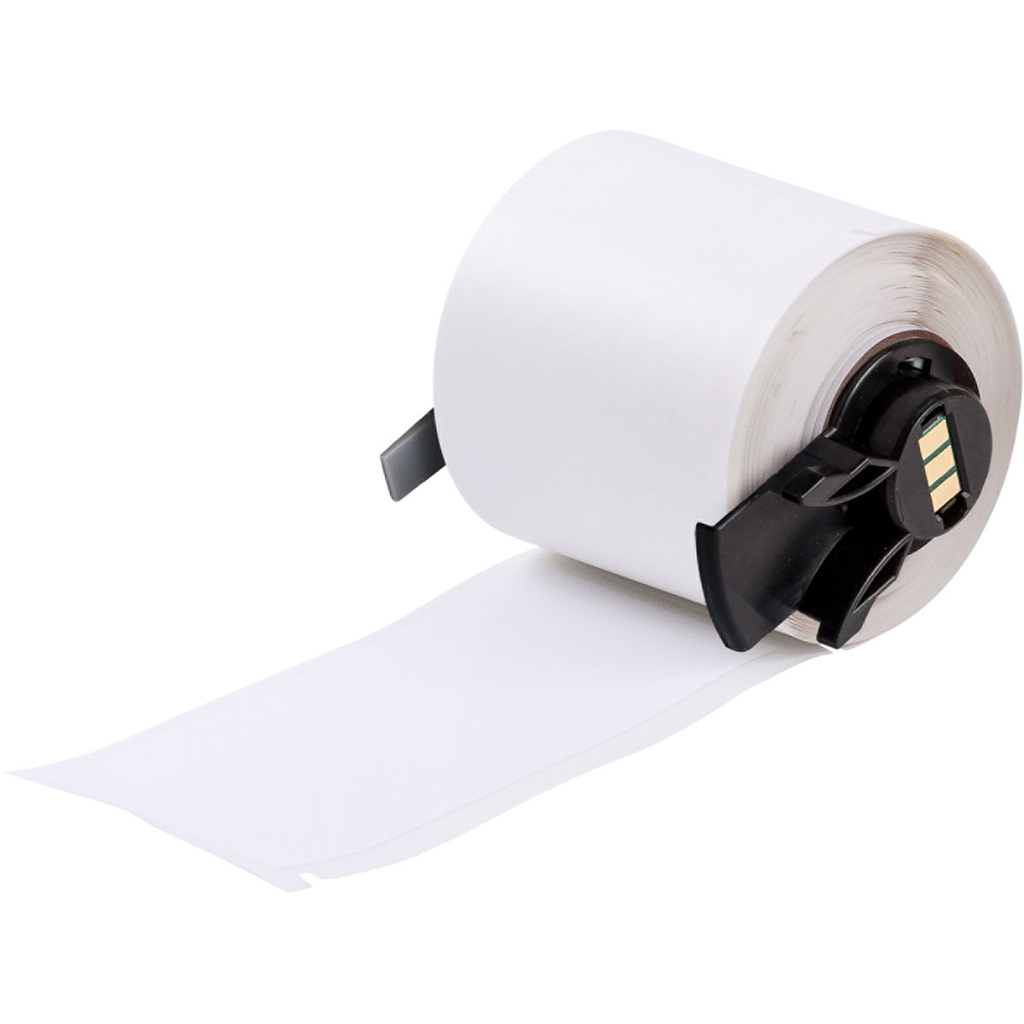

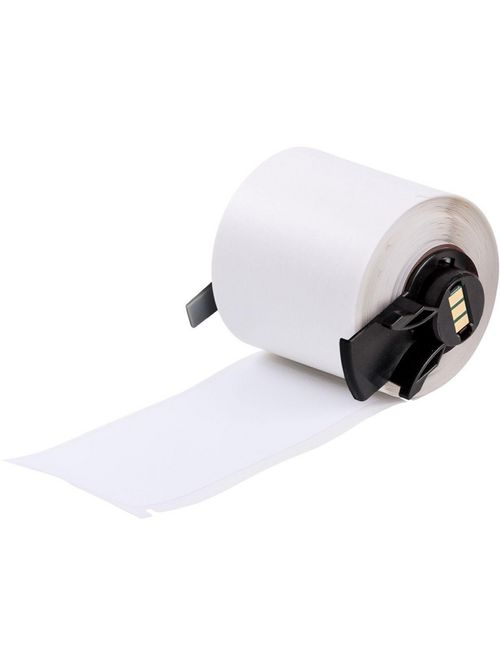

Brady PTL-38-422 4 x 1.9 Inch White Polyester Portable Printer Label
Product image thumbnail 0
Product image thumbnail 1
$60.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PTL-38-422
North Coast Part # 267359

Features

  • Aggressive adhesive good for powder-coated and textured flat surfaces including low surface energy plastics
  • Designed to withstand exposure to numerous solvents
  • UL approved;CSA accepted
  • Service temperature of -40 to 212° F (-40 to 100° C)

Specifications

  • Applications: Barcode Labeling; Circuit Board Labeling; Component and Equipment Labeling; General Identification; Inventory and Inspection Labeling
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: White
  • Compatible Surface Types: High Surface Energy; Rough
  • Diagram: Icon 3 (triangle)
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
  • Finish: Gloss
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Roll
  • Manufacturer Part Number: PTL-38-422
  • Max. Lines of Text: 20
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Circuit Board; General Identification; Inspection Repair; Rating & Name Plates
  • Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
  • Printer Compatibility (Print): M611; BMP61; BMP71
  • Quantity per Roll: 100
  • Quantity per Row: 1
  • Recommended Ribbon: M61-R6010; M71-R6000; R6010
  • Ribbon Series: R6010
  • Secondary Label Included: Secondary Label is Not Included
  • Shape: Rectangle
  • Suggested Ribbon Series: R4400; R6000 Halogen Free; R6200
  • Total Qty per Pack: 100 Label(s) / Roll
  • Total Quantity: 100
  • Trade Name: ToughBond
  • Adhesive (Y/N): Yes
  • Adhesive Type: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-422
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Aggressive Adhesive Labels; Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyester
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-422
  • Dimensions: 1.9 in H x 4 in W
  • Dimensions (Metric): 101.60 mm W x 48.26 mm H
  • Dimensions 2: 1.9 in H x 4 in W
  • Height (in/ft/yd): 1.9 in
  • Height (mm/cm/m): 48.26 mm
  • Label/Tape Size (in/ft/yd): 1.9 in H x 4 in W
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Printable Area Dimensions (Metric): 48.26 mm H x 101.6 mm W
  • Printable Area Height (mm/cm/m): 48.26 mm
  • Printable Area Width (mm/cm/m): 101.6 mm
  • Sign Size-General: 1.9 in x 4 in
  • Size - Width (mm): 101.60 mm
  • Thickness (in/ft/yd): 0.004 in
  • Thickness (mm/cm/m): 0.102 mm
  • Vertical Repeat: 4.125 in
  • Vertical Repeat (mm): 104.77 mm
  • Width (in/ft/yd): 4 in
  • Width (mm/cm/m): 101.6 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282018447
GTiN 00662820184478
Finish Gloss
Width 4 in
Adhesive Type Permanent Acrylic
Color White
Type Label
Thickness 0.004 in
Material Polyester
Applications Asset Tracking; Barcode Labeling; Circuit Board ID - Through Hole Top; Component & Equipment ID; General & Industrial ID; Panel Labeling; Rating Plates; Voice & Data ID
Height 1.9 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Indoor Outdoor Outdoor
Max Operating Temperature 212 degrees F
Min Operating Temperature -40 degrees F
Sub Brand BMP71 TLS 2200 Series ToughBond
CA Prop65 Warning N
Max Temperature 212 degrees F
Min Temperature -40 degrees F
