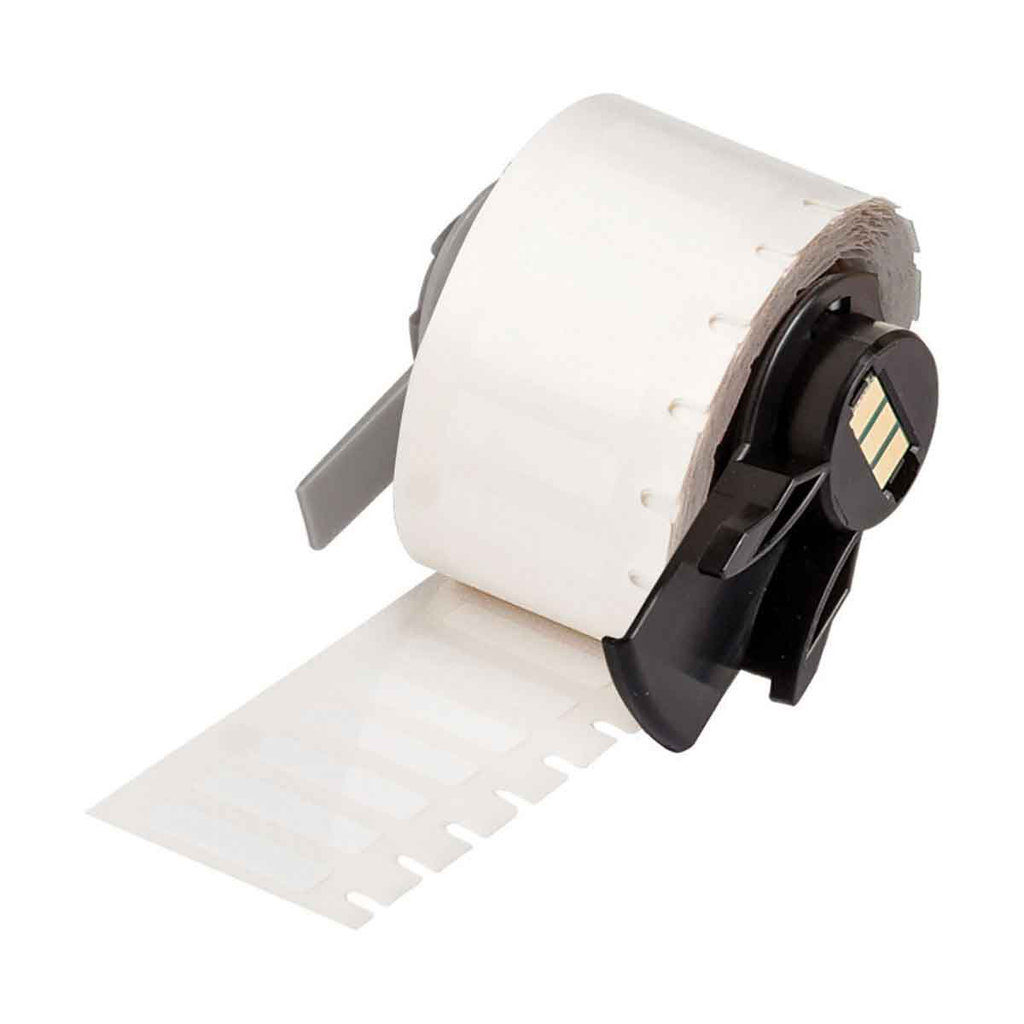

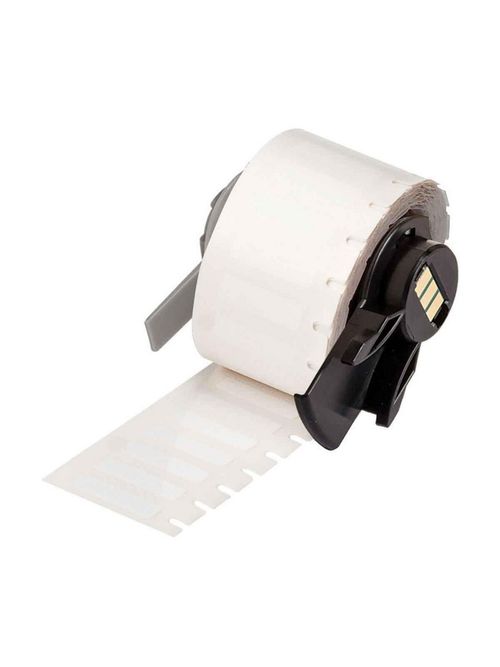

BRADY PTL-9-423 Label,BMP71/TLS,B42

Features

• Glossy white finish with permanent acrylic is thermal transfer printable
• UL approved;CSA accepted
• Meets requirements of a halogen-free material per DIN VDE 0472 part 815
• Service temperature of -94 to 230° F (-70 to 110° C)

Specifications

• Applications: Barcode Labeling; Circuit Board Labeling; General Identification; Inventory and Inspection Labeling
• Board Application: Through Hole - Top
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: White
• Compatible Surface Types: High Surface Energy
• Diagram: Icon 3 (triangle)
• Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
• Finish: Gloss
• For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
• Label/Media Format: Roll
• Manufacturer Part Number: PTL-9-423
• Max. Lines of Text: 1
• Primary Noun, Basic Function: Label
• Print Technology: Thermal Transfer
• Printer and Label Applications: General Identification; Inspection Repair; Rating & Name Plates
• Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
• Printer Compatibility (Print): M611; BMP61; BMP71
• Quantity per Roll: 750
• Quantity per Row: 1
• Recommended Ribbon: M61-R6010; M71-R6000; R6010
• Ribbon Series: R6010
• Secondary Label Included: Secondary Label is Not Included
• Shape: Rectangle
• Suggested Ribbon Series: R4400; R6000 Halogen Free; R6200
• Total Qty per Pack: 750 Label(s) / Roll
• Total Quantity: 750
• Trade Name: WorkHorse
• Adhesive Type: Permanent Acrylic
• After Process: Yes, this material will work with this application
• Brady Material Number: B-423
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
• Material: Polyester
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-423
• Dimensions: 0.2 in H x 0.65 in W
• Dimensions (Metric): 16.51 mm W x 5.08 mm H
• Dimensions 2: 0.2 in H x 0.65 in W
• Height (in/ft/yd): 0.2 in
• Height (mm/cm/m): 5.08 mm
• Label/Tape Size (in/ft/yd): 0.2 in H x 0.65 in W
• Maximum Service Temperature °C: 110 °C
• Maximum Service Temperature °F: 230 °F
• Minimum Service Temperature °C: -70 °C
• Minimum Service Temperature °F: -94 °F
• Printable Area Dimensions (Metric): 5.08 mm H x 16.51 mm W
• Printable Area Height (mm/cm/m): 5.08 mm
• Printable Area Width (mm/cm/m): 16.51 mm
• Sign Size-General: 0.2 in x 0.65 in
• Size - Width (mm): 16.51 mm
• Thickness (in/ft/yd): 0.003 in
• Thickness (mm/cm/m): 0.076 mm
• Vertical Repeat: 0.325 in
• Vertical Repeat (mm): 8.25 mm
• Width (in/ft/yd): 0.65 in
• Width (mm/cm/m): 16.51 mm

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
