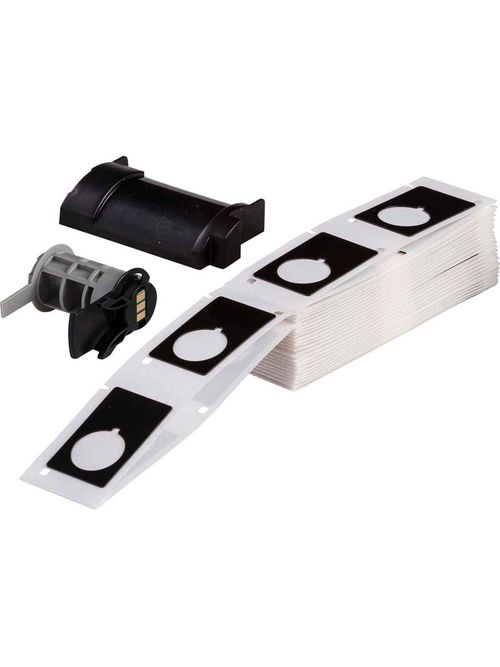

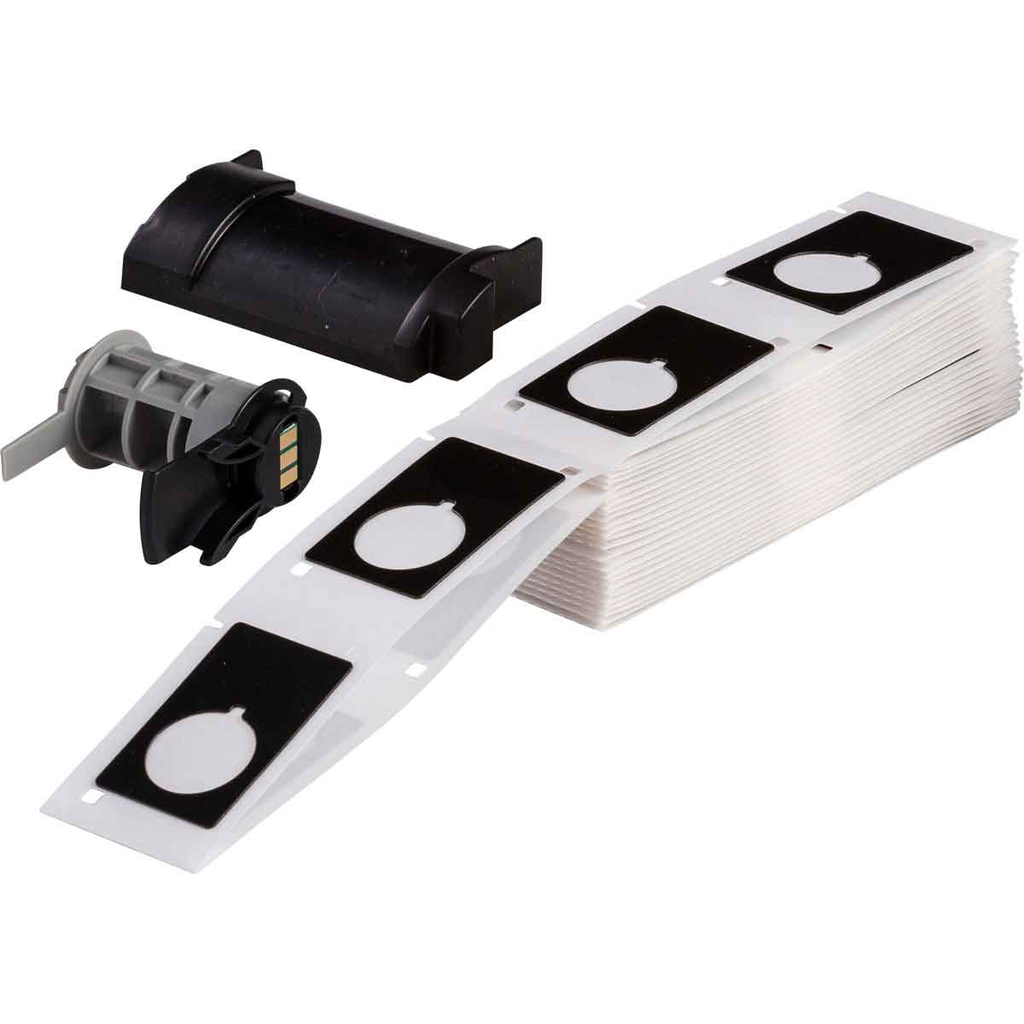

BRADY PTLEP-168-593-BK Label,BMP71/
Product image thumbnail 0
Product image thumbnail 1
$130.89/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PTLEP-168-593-BK
North Coast Part # 486267

Features

  • Can be used as rating and serial plates using alphanumerics that require nameplate quality
  • Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
  • UL approved
  • Service temperature of -4 to 212° F (-20 to 100° C)

Specifications

  • Applications: Electrical Labeling; General Identification
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: Black
  • Compatible Surface Types: High Surface Energy
  • Enables Industry Compliance: ASTM D 1000; ASTM D 2979; UL Recognized
  • Finish: Gloss
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer; BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Box
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Electrical; General Identification; Inspection Repair; Rating & Name Plates
  • Quantity per Row: 1
  • Recommended Ribbon: M61-R4410-WT; M71-R4400-WT; R4410-WT
  • Shape: Rectangle
  • Suggested Ribbon Series: R4400; R6000 Halogen Free
  • Total Quantity: 100
  • Trade Name: BMP®71 TLS 2200®
  • Adhesive Type: Permanent Acrylic - Foam Backed
  • Brady Material Number: B-593
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyester
  • Material Properties: Raised
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
  • SAP B-Number: B-593
  • Average Outdoor Durability: 3 to 5 Years
  • Dimensions: 1.9 in H x 1.2 in W
  • Dimensions (Metric): 48.3 mm H
  • Dimensions 2: 1.9 in H x 1.2 in W
  • Height (in/ft/yd): 1.9 in
  • Height (mm/cm/m): 48.3 mm
  • Label/Tape Size (in/ft/yd): 1.9 in H x 1.2 in W
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Service Temperature °C: -20 °C
  • Minimum Service Temperature °F: -4 °F
  • Sign Size-General: 1.9 in x 1.2 in
  • Thickness (in/ft/yd): 0.0256 in
  • Thickness (mm/cm/m): 0.65 mm
  • Vertical Repeat: 2.719 in
  • Width (in/ft/yd): 1.2 in
  • Width (mm/cm/m): 30.48 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • DOT Regulated Product: No = not regulated by DOT
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282089899
GTiN 00662820898993
Finish Gloss
Width 1.2 in
Adhesive Type Permanent Acrylic
Color Black
Type Label
Thickness 0.025 in
Material Polyester
Applications General & Industrial ID; Panel Labeling
Height 1.9 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Indoor Outdoor Outdoor
Max Operating Temperature 212 degrees F
Min Operating Temperature -4 degrees F
CA Prop65 Warning N
Max Temperature 212 degrees F
Min Temperature -4 degrees F
