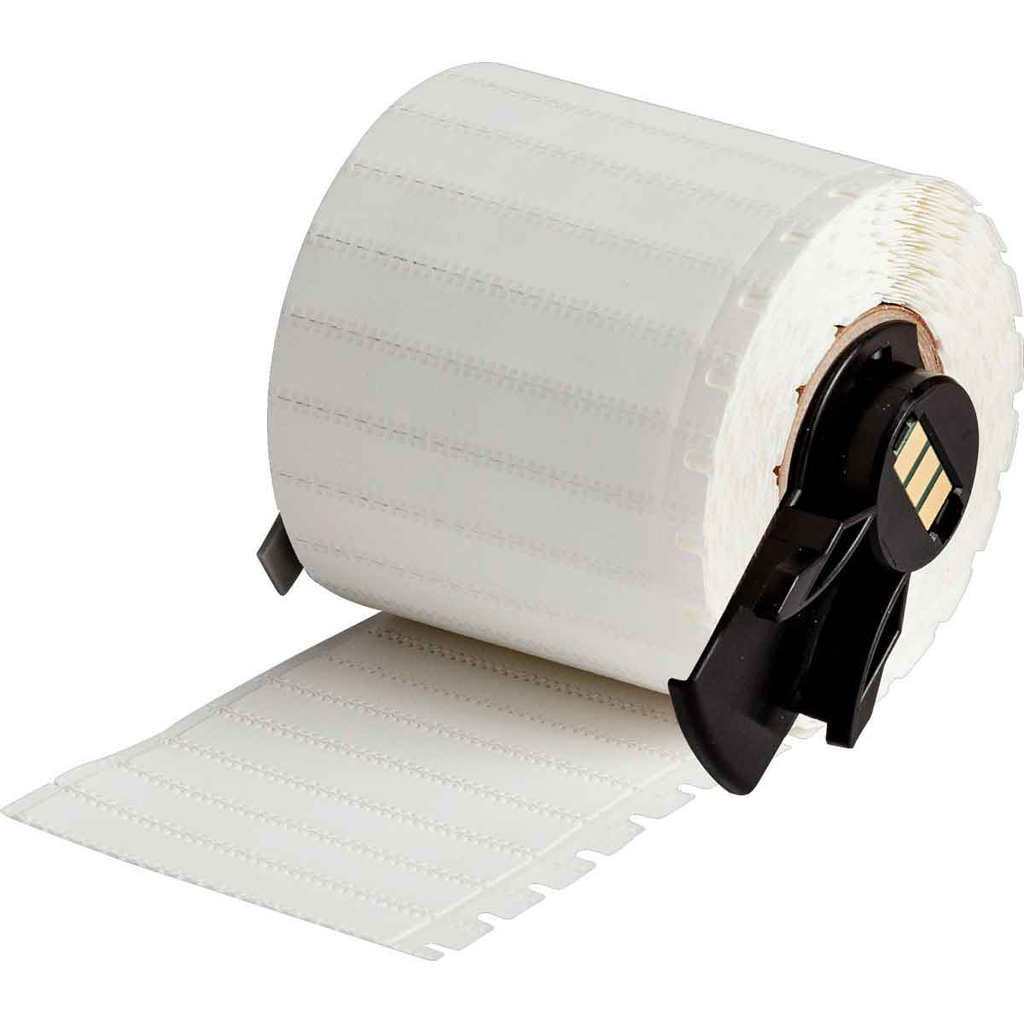

Brady PTS-1.90-350-321 16 to 10 AWG 1.9 x 0.35 Inch x 0.16 mm White Polyolefin Wire Marking Sleeve
Product image thumbnail 0
Product image thumbnail 1
$455.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # PTS-1.90-350-321
North Coast Part # 159106

Features

  • Sleeves are made from high density polyolefin film and are supplied in various configurations including pin-feed rolls
  • Compatible with both dot matrix and thermal transfer print technology
  • Extreme cold and heat-resistance with service temperatures of -40°F to 392°F (-40°C to 200°C)
  • RoHS Compliant

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: White
  • Diagram: Icon 54 (4 squares)
  • Enables Industry Compliance: ASTM D 1000; ASTM D 882; ASTM G 155; MIL-M-81531; MIL-STD-202
  • Finish: Matte
  • For Use with Printer: BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
  • Label/Media Format: Roll
  • Manufacturer Part Number: PTS-1.90-350-321
  • Max. Lines of Text: 2
  • National Stock Number (NSN): 7690015265432
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printable Sides: Single-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: M611; BMP61; BMP71; TLS-PC LINK
  • Printer Compatibility (Print): M611; BMP61; BMP71
  • Quantity per Roll: 500
  • Quantity per Row: 1
  • Recommended Ribbon: M61-R6210; R6210
  • Ribbon Series: R6210
  • Shape: Rectangle
  • Shrink Ratio: 2:1
  • Suggested Ribbon Series: R6200
  • Total Qty per Pack: 500 Sleeve(s) / Roll
  • Total Quantity: 500
  • Trade Name: BMP®61 TLS 2200® TLS-PC Link™ BradySleeve™
  • Brady Material Number: B-321
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-321
  • Diameter as Supplied (in/ft/yd): 1.9 in
  • Diameter as Supplied (mm/cm/m): 48.26 mm
  • Dimensions: 0.35 in H x 0.35 in W
  • Dimensions (Metric): 48.26 mm W x 8.89 mm H
  • Dimensions 2: 0.35 in H x 0.35 in W
  • Height (in/ft/yd): 0.35 in
  • Height (mm/cm/m): 8.89 mm
  • Maximum Service Temperature °C: 120 °C
  • Maximum Service Temperature °F: 248 °F
  • Maximum Wire Diameter (in/ft/yd): 0.16 in
  • Maximum Wire Diameter (mm/cm/m): 4.06 mm
  • Maximum Wire Gauge: 10 AWG
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Minimum Wire Diameter (in/ft/yd): 0.075 in
  • Minimum Wire Diameter (mm/cm/m): 1.91 mm
  • Minimum Wire Gauge: 16 AWG
  • Roll Width (in/ft/yd): 0.35 in
  • Roll Width (mm/cm/m): 8.9 mm
  • Sign Size-General: 0.35 in x 0.35 in
  • Size - Width (mm): 48.26 mm
  • Sleeve Size (in/ft/yd): 1.9 in Dia x 0.35 in W
  • Sleeve Size (mm/cm/m): 48.26 mm Dia x 8.9 mm W
  • Sleeve Width (in/ft/yd): 0.35 in
  • Sleeve Width (mm/cm/m): 8.9 mm
  • Thickness (in/ft/yd): 0.0065 in
  • Thickness (mm/cm/m): 0.16 mm
  • Vertical Repeat: 0.35 in
  • Vertical Repeat (mm): 8.89 mm
  • Width (in/ft/yd): 0.35 in
  • Wire Diameter Range: 0.075 in to 0.16 in
  • Wire Gauge Range: 16 AWG to 10 AWG

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Categories

Overview

UPC 66282018476
GTiN 00662820184768
Finish Matte
Width 0.35 in
Color White
Type Heat Shrink Tubing
Diameter 1.9 in
Thickness 0.006 in
Material Polyolefin
Shrink Ratio 2:1
Applications Cable & Wire Marking; Panel Labeling
Height 0.35 in
Wire Size 0.075-0.16 in
Shape Rectangle
Family Brand Name Brady
Label Type Sleeve
Qty per Row 1
Roll Width 0.35 in
Sub Brand TLS 2200 Series
CA Prop65 Warning N
Max Temperature 248 degrees F
Min Temperature -40 degrees F
