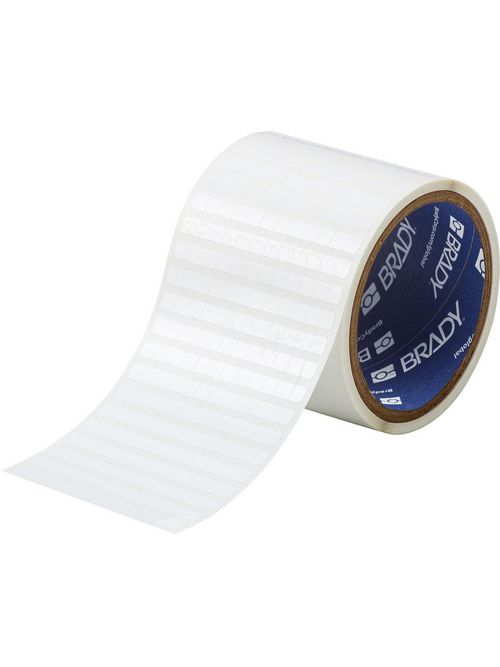

BRADY THT-11-423-10 Label,THT,B423,

Features

• Glossy white finish with permanent acrylic is thermal transfer printable
• UL approved;CSA accepted
• Meets requirements of a halogen-free material per DIN VDE 0472 part 815
• Service temperature of -94 to 230° F (-70 to 110° C)

Specifications

• Applications: Circuit Board Labeling; Component and Equipment Labeling; Inventory and Inspection Labeling
• Board Application: Through Hole - Top
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: White
• Compatible Surface Types: High Surface Energy
• Corner Type: Rounded Corners
• Diagram: Icon 26 (hexagon)
• Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
• Finish: Gloss
• For Use with Printer: BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
• Label/Media Format: Roll
• Primary Noun, Basic Function: Label
• Print Technology: Thermal Transfer
• Printer and Label Applications: General Identification; Inspection Repair; Rating & Name Plates
• Printer Compatibility: BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
• Printer Compatibility (Print): BBP12; i7100; i5100
• Quantity per Roll: 10000
• Quantity per Row: 12
• Recommended Ribbon: IP-R6002; R6002
• Ribbon Series: R6000HF
• Shape: Square
• Suggested Ribbon Series: R4900; R6000 Halogen Free; R6200
• Total Qty per Pack: 10000 Label(s) / Roll
• Total Quantity: 10000
• Trade Name: WorkHorse
• Adhesive Type: Permanent Acrylic
• After Process: Yes, this material will work with this application
• Brady Material Number: B-423
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
• Material: Polyester
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
• SAP B-Number: B-423
• Average Outdoor Durability: 1 Year
• Core Diameter (mm/cm/m): 76.20 mm
• Dimensions: 0.25 in H x 0.25 in W
• Dimensions (Metric): 6.35 mm W x 6.35 mm H
• Dimensions 2: 0.25 in H x 0.25 in W
• Height (in/ft/yd): 0.25 in
• Height (mm/cm/m): 6.35 mm
• Horizontal Repeat (mm): 6.35 mm
• Label/Tape Size (in/ft/yd): 0.25 in H x 0.25 in W
• Maximum Service Temperature °C: 110 °C
• Maximum Service Temperature °F: 230 °F
• Minimum Service Temperature °C: -70 °C
• Minimum Service Temperature °F: -94 °F
• Printable Area Dimensions (Metric): 6.35 mm H x 6.35 mm W
• Printable Area Height (mm/cm/m): 6.35 mm
• Printable Area Width (mm/cm/m): 6.35 mm
• Sign Size-General: 0.25 in x 0.25 in
• Size - Width (mm): 6.35 mm
• Thickness (in/ft/yd): 0.003 in
• Thickness (mm/cm/m): 0.076 mm
• Vertical Repeat: 0.375 in
• Vertical Repeat (mm): 9.53 mm
• Web Width (mm/cm/m): 81.28 mm
• Width (in/ft/yd): 0.25 in
• Width (mm/cm/m): 6.35 mm

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
