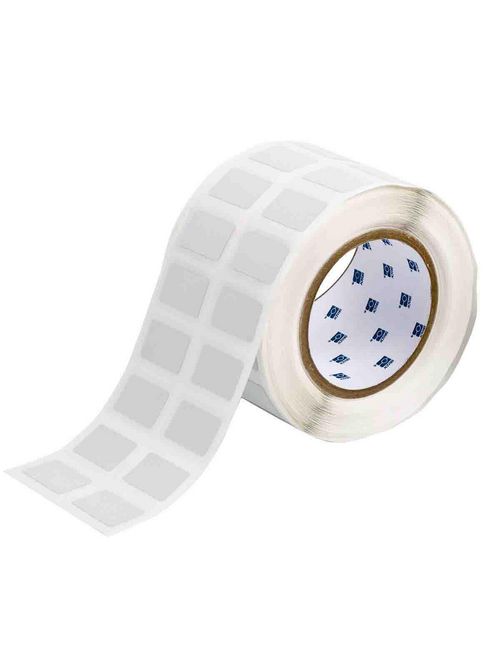

BRADY THT-22-428-2 Label,THT,B428L,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$370.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # THT-22-428-2
North Coast Part # 209707

Features

  • Matte, light gray finish with clear overlaminate gives labels a rating and serial plate appearance
  • Labels are designed to withstand numerous solvents and variable temperatures when applied to various surfaces
  • UL approved;CSA accepted
  • Service temperature of -40 to 248° F (-40 to 120° C)

Specifications

  • Applications: General Identification; Inventory and Inspection Labeling
  • Board Application: Through Hole - Top
  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: Silver
  • Compatible Surface Types: High Surface Energy
  • Diagram: Icon 50 (moon)
  • Enables Industry Compliance: AGA Approved; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
  • Finish: Gloss
  • For Use with Printer: BBP®81 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
  • Label/Media Format: Roll
  • National Stock Number (NSN): 7690015510993
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: General Identification; Inspection Repair; Rating & Name Plates
  • Printer Compatibility: BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
  • Printer Compatibility (Print): BBP12; i7100; i5100
  • Quantity per Roll: 2000
  • Quantity per Row: 2
  • Recommended Ribbon: IP-R4300; R4300
  • Ribbon Series: R4300; R7950
  • Shape: Rectangle
  • Suggested Ribbon Series: R4300; R4500; R6200
  • Total Qty per Pack: 2000 Label(s) / Roll
  • Total Quantity: 2000
  • Trade Name: MetaLabel
  • Adhesive (Y/N): Yes
  • Adhesive Type: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Brady Material Number: B-428/B-966
  • Label Properties: Heat Resistant Labels; Metallic Labels; Permanent Adhesive Labels
  • Material: Metallized Polyester with Polyester Overlaminate
  • Material Properties: Metallic Appearance
  • Overlaminate B-Number: B-966B
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-428
  • Core Diameter (mm/cm/m): 76.20 mm
  • Dimensions: 0.75 in H x 1.25 in W
  • Dimensions (Metric): 31.75 mm W x 19.05 mm H
  • Dimensions 2: 0.75 in H x 1.25 in W
  • Height (in/ft/yd): 0.75 in
  • Height (mm/cm/m): 19.05 mm
  • Horizontal Repeat (mm): 41.91 mm
  • Label/Tape Size (in/ft/yd): 0.75 in H x 1.25 in W
  • Maximum Service Temperature °C: 120 °C
  • Maximum Service Temperature °F: 248 °F
  • Minimum Service Temperature °C: -70 °C
  • Minimum Service Temperature °F: -40 °F
  • Overlaminate Dimensions - Height (mm): 25.40 mm
  • Overlaminate Dimensions - Width (mm): 38.10 mm
  • Printable Area Dimensions (Metric): 19.05 mm H x 31.75 mm W
  • Printable Area Height (mm/cm/m): 19.05 mm
  • Printable Area Width (mm/cm/m): 31.75 mm
  • Sign Size-General: 0.75 in x 1.25 in
  • Size - Width (mm): 31.75 mm
  • Thickness (in/ft/yd): 0.0044 in
  • Thickness (mm/cm/m): 0.185 mm
  • Vertical Repeat: 1.125 in
  • Vertical Repeat (mm): 28.58 mm
  • Web Width (mm/cm/m): 85.09 mm
  • Width (in/ft/yd): 1.25 in
  • Width (mm/cm/m): 31.75 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282030144
GTiN 00662820301448
Finish Gloss
Width 1.25 in
Adhesive Type Permanent Acrylic
Color Silver
Type Label
Thickness 0.004 in
Material B-428/B-966 Metalized Polyester
Applications Asset Tracking; Circuit Board ID - Through Hole Top; General & Industrial ID; Rating Plates
Height 0.75 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 2
Max Operating Temperature 248 degrees F
Min Operating Temperature -40 degrees F
Sub Brand MetaLabel Series
CA Prop65 Warning N
Max Temperature 248 degrees F
Min Temperature -40 degrees F
