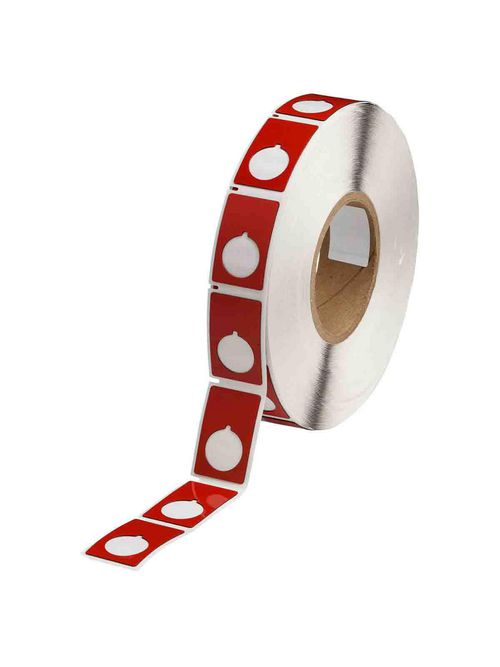

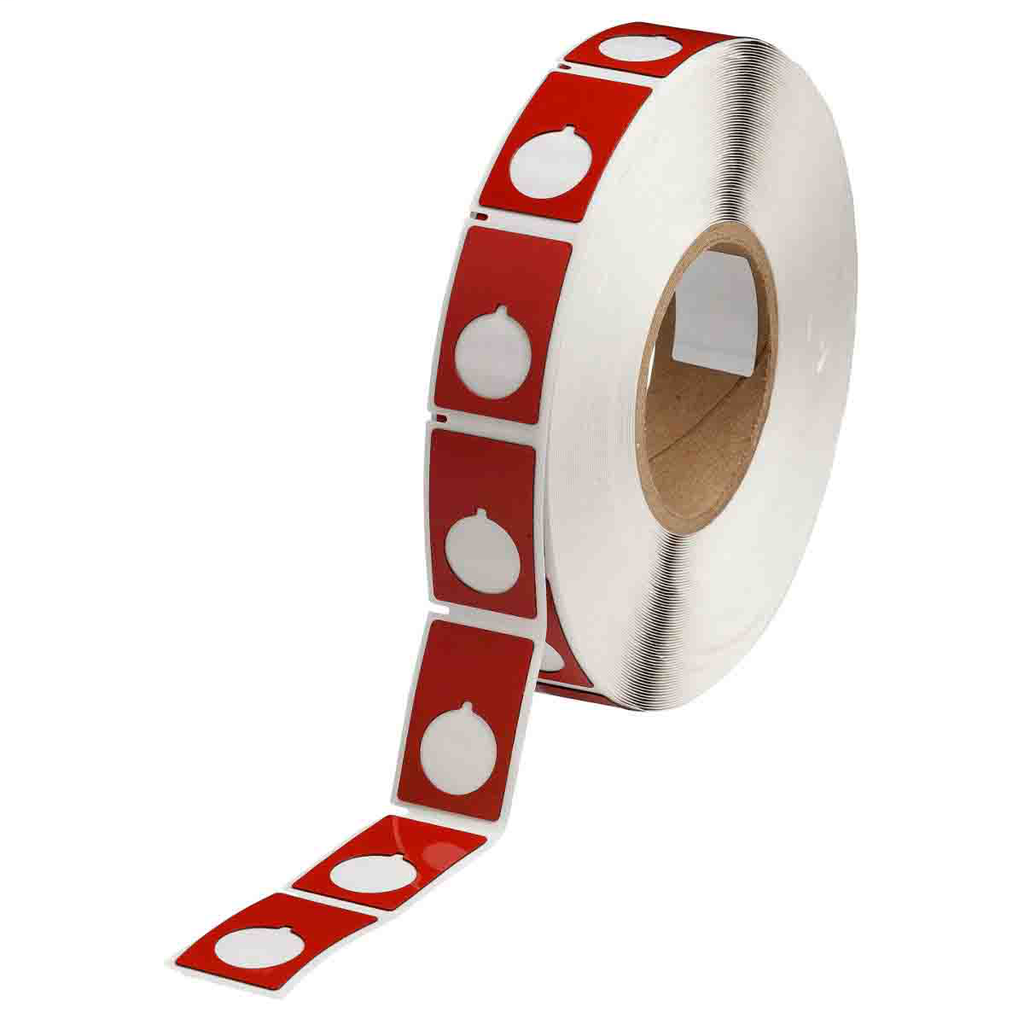

BRADY THTEP-168-593-.5RD Label,THT,

Features

• Can be used as rating and serial plates using alphanumerics that require nameplate quality
• Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
• UL approved
• Service temperature of -4 to 212° F (-20 to 100° C)

Specifications

• Applications: Electrical Labeling; General Identification
• Brand Name: Brady®
• Bulk Part: Not a Bulk Part
• Color: Red
• Compatible Surface Types: High Surface Energy
• Enables Industry Compliance: ASTM D 1000; ASTM D 2979; UL Recognized
• Finish: Gloss
• For Use with Printer: BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
• Label/Media Format: Roll
• Patent Number(s): 8,475,914.00
• Patent Valid in (Countries): USA
• Primary Noun, Basic Function: Label
• Print Technology: Thermal Transfer
• Printer and Label Applications: Electrical
• Quantity per Roll: 500
• Quantity per Row: 1
• Recommended Ribbon: IP-R6006; R6006
• Shape: Rectangle
• Suggested Ribbon Series: R4400; R6000 Halogen Free
• Total Quantity: 500
• Adhesive Type: Permanent Acrylic - Foam Backed
• Brady Material Number: B-593
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Heat Resistant Labels; Permanent Adhesive Labels
• Material: Polyester
• Material Properties: Raised
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
• SAP B-Number: B-593
• Average Outdoor Durability: 3 to 5 Years
• Dimensions: 1.9 in H x 1.2 in W
• Dimensions (Metric): 48.3 mm H
• Dimensions 2: 1.9 in H x 1.2 in W
• Height (in/ft/yd): 1.9 in
• Height (mm/cm/m): 48.3 mm
• Hole Inside Diameter (in/ft/yd): 0.886 in
• Hole Inside Diameter (mm/cm/m): 22.5 mm
• Label/Tape Size (in/ft/yd): 1.9 in H x 1.2 in W
• Maximum Service Temperature °C: 100 °C
• Maximum Service Temperature °F: 212 °F
• Minimum Service Temperature °C: -20 °C
• Minimum Service Temperature °F: -4 °F
• Printable Area Dimensions (Metric): 48.26 mm H x 30.48 mm W
• Printable Area Height (mm/cm/m): 48.26 mm
• Printable Area Width (mm/cm/m): 30.48 mm
• Sign Size-General: 1.9 in x 1.2 in
• Thickness (in/ft/yd): 0.0256 in
• Thickness (mm/cm/m): 0.65 mm
• Vertical Repeat: 2.125 in
• Width (in/ft/yd): 1.2 in
• Width (mm/cm/m): 30.48 mm

Regulatory Information

• Contains CA PROP 65 Substance: Yes Contains-Label not req.
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): Unavailable
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
