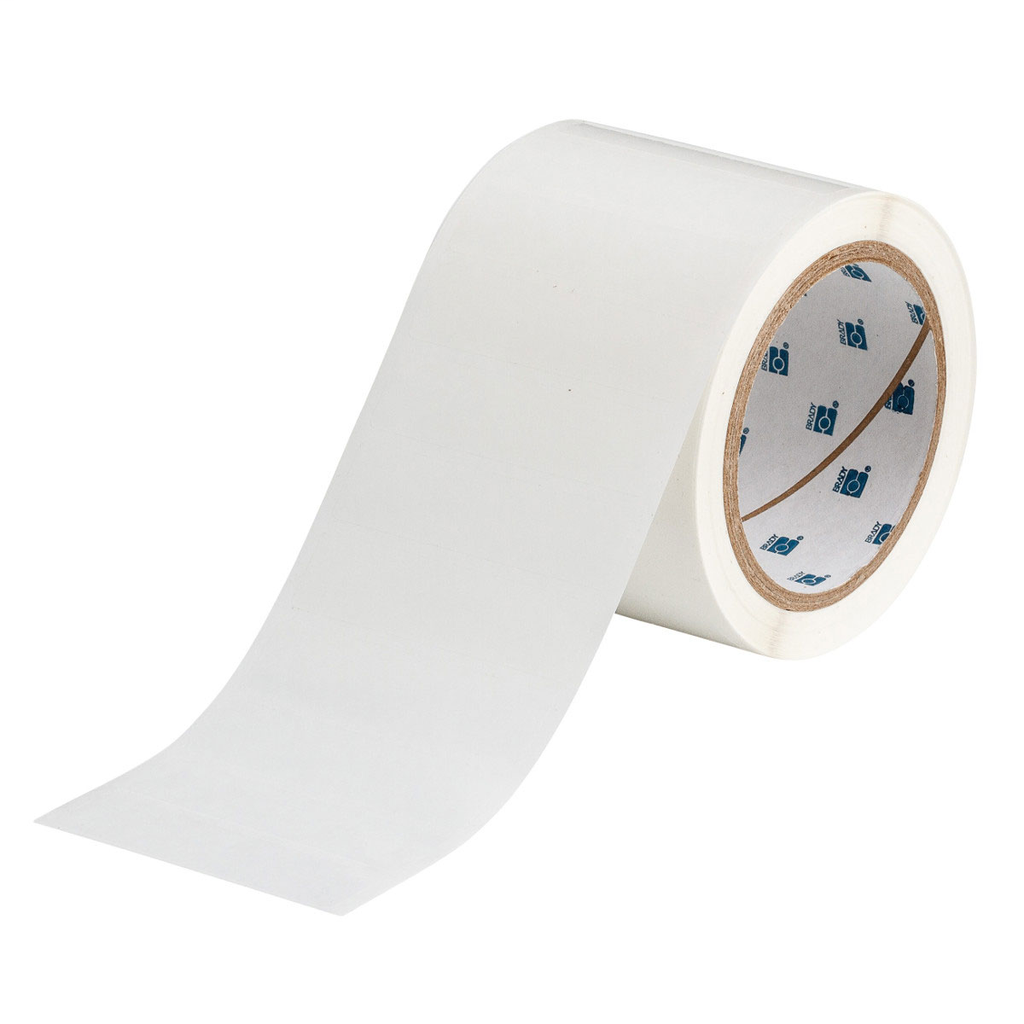

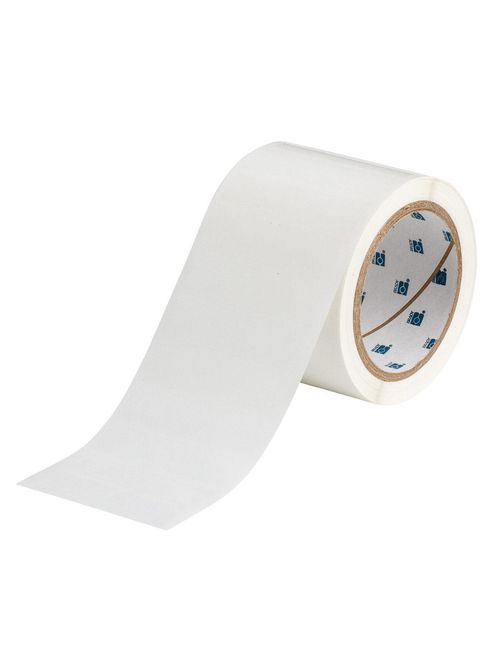

BRADY THTOL-175-966B-1 Label,THT,B9
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # THTOL-175-966B-1
North Coast Part # 420890


  • This overlaminate covers and protects raised panel labels
  • Has excellent clarity and abrasion resistance
  • Very good temperature and solvent resistance


  • Brand Name: Brady®
  • Bulk Part: Not a Bulk Part
  • Color: Clear
  • Compatible Surface Types: High Surface Energy
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155
  • Finish: Gloss
  • Label/Media Format: Roll
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: General Identification
  • Quantity per Roll: 1000
  • Quantity per Row: 1
  • Shape: Rectangle
  • Total Quantity: 1000
  • Trade Name: WorkHorse®
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-966B
  • Label Properties: Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyester
  • Material Properties: Optically Clear; Overlaminate
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-966B
  • Dimensions: 0.75 in H x 3 in W
  • Dimensions (Metric): 19.1 mm H
  • Dimensions 2: 0.75 in H x 3 in W
  • Height (in/ft/yd): 0.75 in
  • Height (mm/cm/m): 19.1 mm
  • Label/Tape Size (in/ft/yd): 0.75 in H x 3 in W
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Application Temperature °C: 10 °C
  • Minimum Application Temperature °F: 50 °F
  • Minimum Service Temperature °C: -70 °C
  • Minimum Service Temperature °F: -94 °F
  • Sign Size-General: 0.75 in x 3 in
  • Thickness (in/ft/yd): 0.0029 in
  • Thickness (mm/cm/m): 0.074 mm
  • Vertical Repeat: 0.875 in
  • Width (in/ft/yd): 3 in
  • Width (mm/cm/m): 76.2 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 66282062995
Item Long Description The B-966B material is a release coated, 1.5 mil clear polyester film with an acrylic pressure sensitive adhesive.
GTiN 00662820629955
Finish Gloss
Width 3 in
Adhesive Type Acrylic
Color Clear
Type Label
Thickness 0.002 in
Material Polyester
Applications Overlaminate
Height 0.75 in
Shape Rectangle
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 212 degrees F
Min Operating Temperature -94 degrees F
Sub Brand WorkHorse Series
CA Prop65 Warning N
Max Temperature 212 degrees F
Min Temperature -94 degrees F
