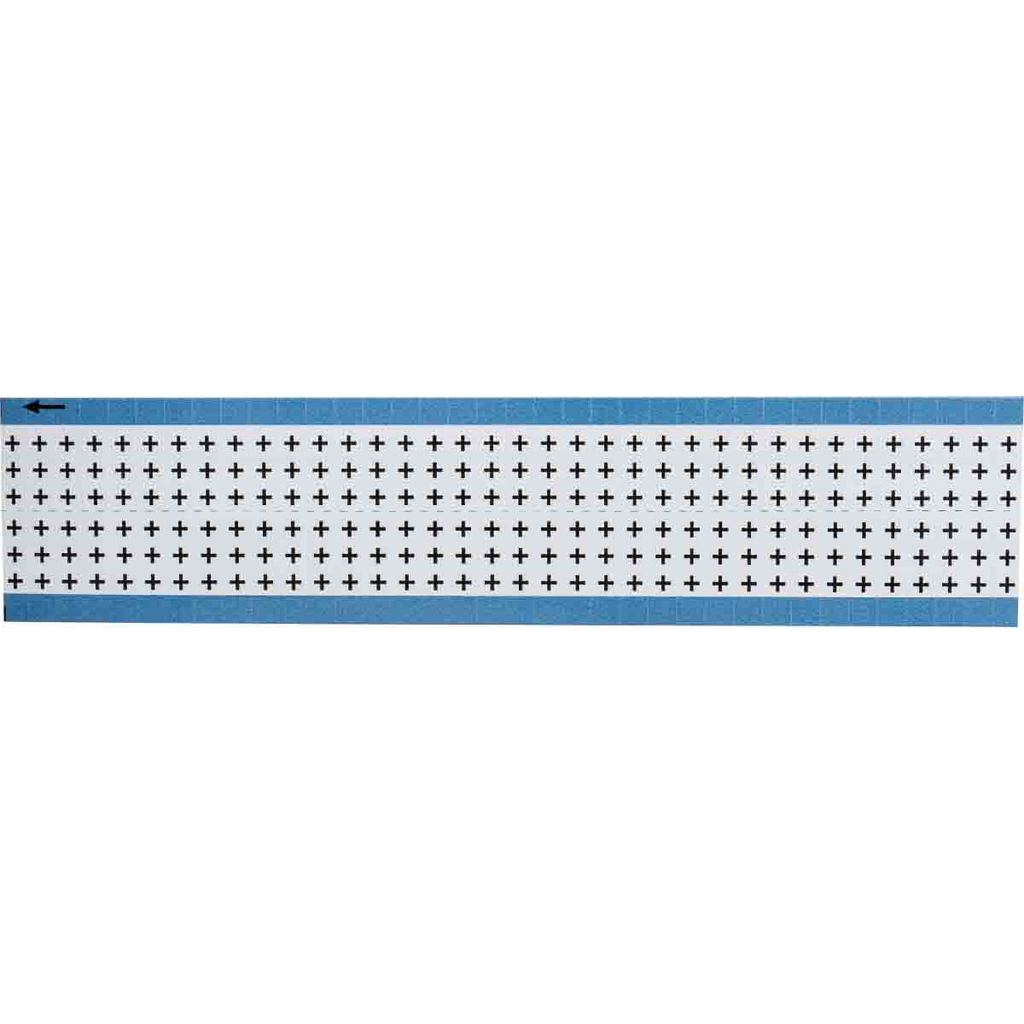

BRADY TWM-PLS-SC-PK 3/4" SYMBOL - L
$56.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # TWM-PLS-SC-PK
North Coast Part # 1889522

Features

  • The high adhesion properties make them perfect for machine tool labeling
  • Glossy white vinyl topcoat with a high tack rubber-based adhesive features excellent flexibility for wrapping on thin gauge wire
  • High adhesion and low profile when wrapped on wires
  • Withstands mild chemicals, oil and water

Specifications

  • Applications: Component and Equipment Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Cards or Sheets per Pack: 25
  • Color: Black on White
  • Compatible Surface Types: Low Surface Energy
  • Enables Industry Compliance: ASTM D 1000; ASTM D 2979
  • Finish: Gloss
  • Label/Media Format: Die-Cut on Cards
  • Primary Noun, Basic Function: Wire Marker
  • Printer and Label Applications: Wire & Cable
  • Quantity per Card or Sheet: 72
  • Text Legend: +
  • Adhesive Type: High-tack Rubber Based
  • Brady Material Number: B-702
  • Label Properties: Permanent Adhesive Labels
  • Material: Vinyl
  • Material Properties: Low Profile
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Oil-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-702
  • Dimensions: 0.75 in H
  • Dimensions 2: 0.75 in H
  • Height (in/ft/yd): 0.75 in
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Application Temperature °C: 10 °C
  • Minimum Application Temperature °F: 50 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Thickness (in/ft/yd): 0.0022 in
  • Thickness (mm/cm/m): 0.056 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282098117
GTiN 00662820981176
Finish Gloss
Color Black,White
Type Wire Marker
Thickness 0.002 in
Material Vinyl
Applications Cable & Wire Marking; Machine Tool Labeling
Temperature Rating -40 to 212 DEG F
Family Brand Name Brady
Max Operating Temperature 212 degrees F
Min Operating Temperature -40 degrees F
Legend +
CA Prop65 Warning N
Height 0.75 in
Max Temperature 212 degrees F
Min Temperature -40 degrees F
