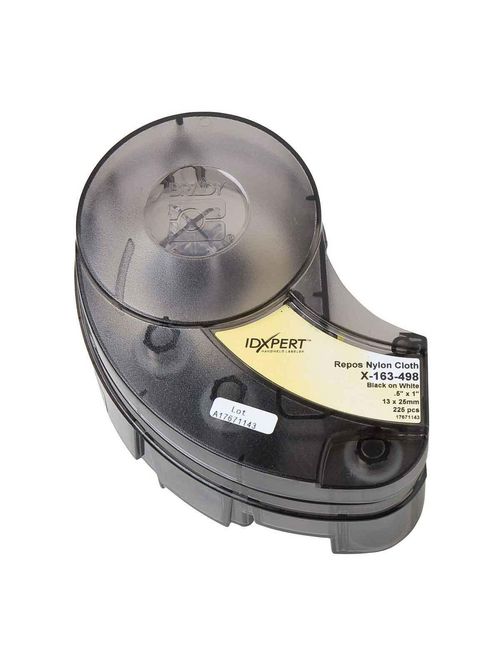

BRADY X-163-498 Label,XPERT,B498,.5
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$64.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # X-163-498
North Coast Part # 606507

Features

  • The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
  • Sticks to any clean, dry surface
  • Specially formulated topcoat for excellent print quality
  • All-in-one cartridge includes label supply and R6200 Series ribbon

Specifications

  • Applications: Barcode Labeling; Component and Equipment Labeling; Data and Telecommunications Labeling; Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Color: White
  • Compatible Surface Types: Low Surface Energy
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
  • Finish: Semi-gloss
  • For Use with Printer: IDXPERT™ Handheld Label Maker; LABXPERT™ Handheld Label Maker
  • Label/Media Format: Label/Media in Cartridge with Ribbon
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: IDXPERT
  • Quantity per Roll: 225
  • Quantity per Row: 1
  • Ribbon Color: Black
  • Ribbon Series: R6200
  • Shape: Rectangle
  • Tape Color: White
  • Total Qty per Pack: 225 Label(s) / Roll
  • Total Quantity: 225
  • Trade Name: CleanLift
  • Adhesive Type: Repositionable Rubber
  • Brady Material Number: B-498
  • Label Properties: Repositionable Labels
  • Material: Vinyl Cloth
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-498
  • Dimensions: 1 in H x 0.5 in W
  • Dimensions (Metric): 12.70 mm W x 25.40 mm H
  • Dimensions 2: 1 in H x 0.5 in W
  • Height (in/ft/yd): 1 in
  • Height (mm/cm/m): 25.40 mm
  • Label/Tape Size (in/ft/yd): 1 in H x 0.5 in W
  • Maximum Service Temperature °C: 80 °C
  • Maximum Service Temperature °F: 176 °F
  • Maximum Wire Diameter (in/ft/yd): 0.21 in
  • Maximum Wire Diameter (mm/cm/m): 5.33 mm
  • Maximum Wire Gauge: 10 AWG
  • Minimum Application Temperature °C: 10 °C
  • Minimum Application Temperature °F: 50 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Minimum Wire Gauge: 12 AWG
  • Sign Size-General: 1 in x 0.5 in
  • Size - Width (mm): 12.70 mm
  • Thickness (in/ft/yd): 0.0073 in
  • Thickness (mm/cm/m): 0.185 mm
  • Width (in/ft/yd): 0.5 in
  • Width (mm/cm/m): 12.7 mm
  • Wire Gauge Range: 12 AWG to 10 AWG

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282057410
GTiN 00662820574101
Width 0.5 in
Adhesive Type Removable Rubber Based
Color Black,White
Type Label
Thickness 0.007 in
Material Vinyl
Applications Barcode Labeling; Cable & Wire Marking; Component & Equipment ID; General & Industrial ID
Height 1 in
Wire Size 12-10 AWG
Shape Rectangle
Family Brand Name Brady
Sub Brand IDXPERT LABXPERT Series CleanLift
CA Prop65 Warning N
Finish Semi-Gloss
Max Temperature 176 degrees F
Min Temperature -40 degrees F
