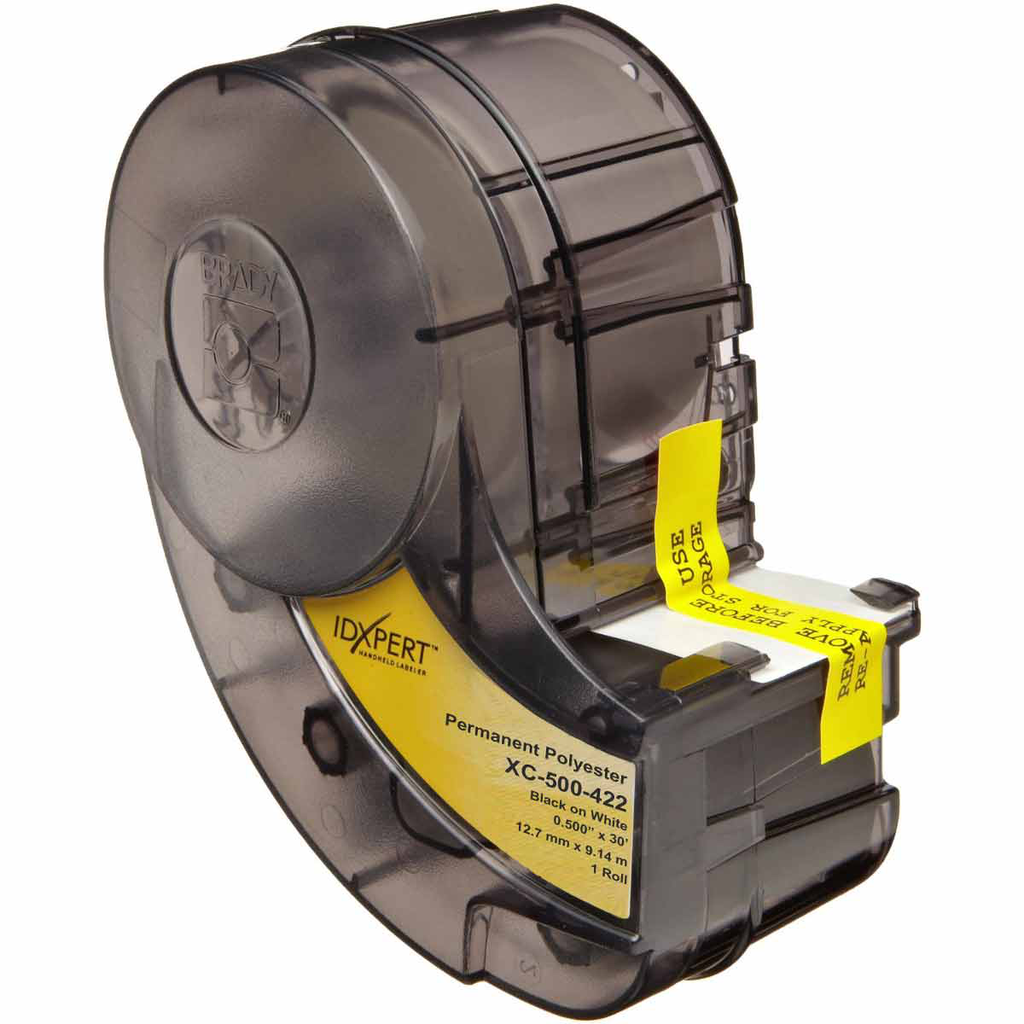

BRADY XC-500-422 Label,IDXPERT,B422
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # XC-500-422
North Coast Part # 217053


  • Aggressive adhesive good for powder-coated and textured flat surfaces including low surface energy plastics
  • Designed to withstand exposure to numerous solvents
  • UL approved;CSA accepted
  • All-in-one cartridge includes ribbon and label supply


  • Applications: Barcode Labeling; Component and Equipment Labeling; Electrical Labeling; General Identification; Inventory and Inspection Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Compatible Surface Types: High Surface Energy; Rough
  • Enables Industry Compliance: ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
  • Finish: Gloss
  • For Use with Printer: IDXPERT™ Handheld Label Maker
  • Label/Media Format: Label/Media in Cartridge with Ribbon
  • Primary Noun, Basic Function: Label
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Circuit Board; General Identification; Inspection Repair; Rating & Name Plates
  • Ribbon Color: Black
  • Tape Color: White
  • Trade Name: ToughBond
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-422
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Aggressive Adhesive Labels; Heat Resistant Labels; Permanent Adhesive Labels
  • Material: Polyester
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-422
  • Label/Tape Size (in/ft/yd): 0.5 in W x 30 ft L
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Roll Length (in/ft/yd): 30 ft
  • Roll Length (mm/cm/m): 9.14 m
  • Roll Width (in/ft/yd): 0.5 in
  • Roll Width (mm/cm/m): 12.7 mm
  • Roll/Tape Size (mm/cm/m): 12.7 mm W x 9.14 m L
  • Thickness (in/ft/yd): 0.004 in
  • Thickness (mm/cm/m): 0.102 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 66282060470
GTiN 00662820604709
Length 1/2 in
Finish Gloss
Width 1/2 in
Adhesive Type Permanent Acrylic
Color Black,White
Type Chemical, Humidity, UV Resistant
Thickness 0.004 in
Material B-422 Polyester
Applications Asset Tracking, Barcode Labeling, Cable and Wire Marking, Component and Equipment ID, General and Industrial ID, Outlet Faceplates, Panel Labeling, Voice and Data ID, Indoor/Outdoor use
Temperature Rating -40 to 212 F
Family Brand Name Brady
Indoor Outdoor Outdoor
Max Operating Temperature 212 degrees F
Min Operating Temperature -40 degrees F
Roll Width 0.5 in
Roll Length 30 ft
Used With Idxpert Thermal Transfer Handheld Label Maker
Sub Brand Idxpert, ToughBond
CA Prop65 Warning N
Max Temperature 212 degrees F
Min Temperature -40 degrees F
