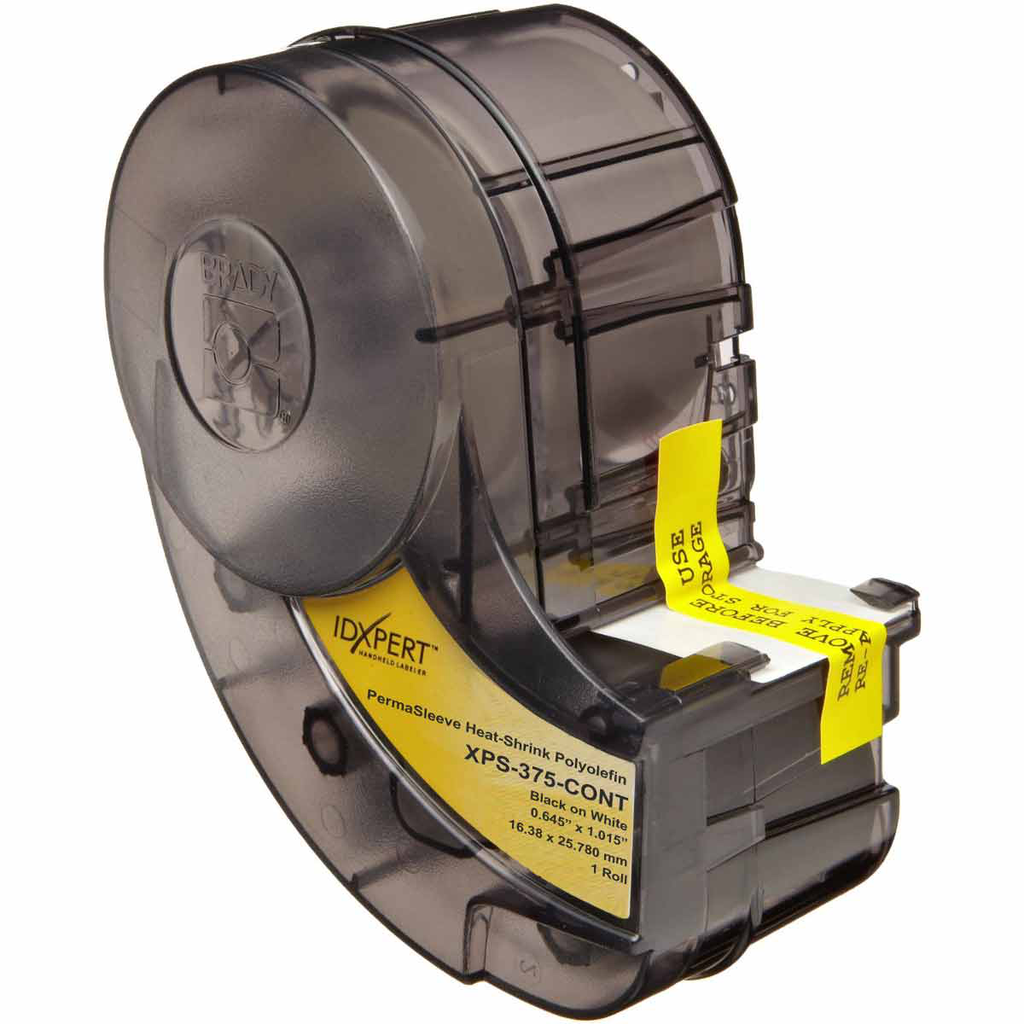

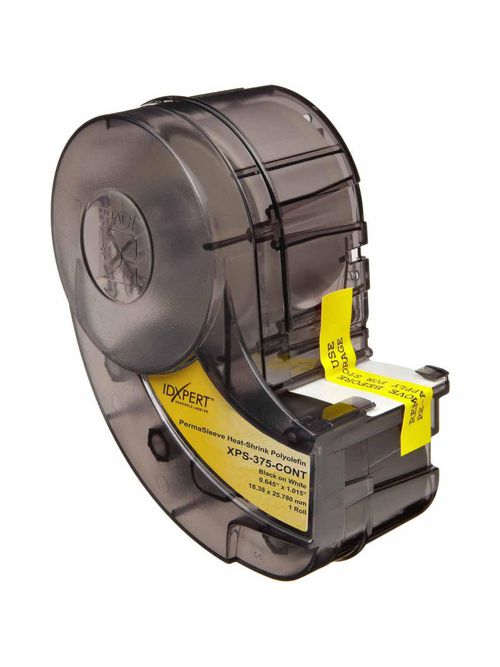

Brady XPS-375-CONT 0.32 x 1.015 x 0.645 Inch Black/White Polyolefin Wire Marking Sleeve
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$100.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # XPS-375-CONT
North Coast Part # 216507

Features

  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • All-in-one cartridge includes label supply and R4300 Series ribbon

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Enables Industry Compliance: ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
  • Finish: Matte
  • For Use with Printer: IDXPERT™ Handheld Label Maker
  • Label/Media Format: Label/Media in Cartridge with Ribbon
  • Primary Noun, Basic Function: Heat Shrink Tubing
  • Print Technology: Thermal Transfer
  • Printer and Label Applications: Wire & Cable
  • Quantity per Row: 1
  • Ribbon Color: Black
  • Ribbon Series: R4300
  • Shrink Ratio: 3:1
  • Tape Color: White
  • Trade Name: IDXpert™ PermaSleeve®
  • Brady Material Number: B-342
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-342
  • Diameter as Supplied (in/ft/yd): 0.375 in
  • Diameter as Supplied (mm/cm/m): 9.5 mm
  • Dimensions: 0.645 in H
  • Dimensions (Metric): 16.4 mm H
  • Dimensions 2: 0.645 in H
  • Height (in/ft/yd): 0.645 in
  • Height (mm/cm/m): 16.4 mm
  • Maximum Service Temperature °C: 135 °C
  • Maximum Service Temperature °F: 275 °F
  • Maximum Wire Diameter (in/ft/yd): 0.32 in
  • Maximum Wire Diameter (mm/cm/m): 8.1 mm
  • Maximum Wire Gauge: 6 AWG
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.125 in
  • Minimum Wire Diameter (mm/cm/m): 3.2 mm
  • Minimum Wire Gauge: 12 AWG
  • Recovered Diameter (in/ft/yd): 0.375 in
  • Recovered Diameter (mm/cm/m): 9.53 mm
  • Roll Length (in/ft/yd): 8 ft
  • Roll Length (mm/cm/m): 2.44 m
  • Sleeve Size (in/ft/yd): 0.375 in Dia x 8 ft L
  • Sleeve Size (mm/cm/m): 9.5 mm Dia x 2.44 m L
  • Web Width (in/ft/yd): 1.063 in
  • Web Width (mm/cm/m): 16.38 mm
  • Wire Diameter Range: 0.125 in to 0.32 in
  • Wire Gauge Range: 12 AWG to 6 AWG

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer
  • Contains CA Prop 65 Cancer Causing Chemical: Antimony Trioxide
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 66282060088
GTiN 00662820600886
Length 8 ft
Finish Matte
Color Black/White
Type Heat Shrink Tubing
Diameter 0.375 in Diameter as Supplied
Material Polyolefin
Shrink Ratio 3:1
Applications Cable & Wire Marking; Panel Labeling
Height 0.645 in
Wire Size 12-6 AWG
Family Brand Name Brady
Qty per Row 1
Max Operating Temperature 275 F
Min Operating Temperature -67 F
Roll Length 8 ft
Sub Brand IDXPERT Series PermaSleeve
CA Prop65 Warning Y
Max Temperature 275 degrees F
Min Temperature -67 degrees F
