Broan 2678F 50 CFM 2.5 Sones 100 W White Polymeric Grille Ventilation System Finish Pack
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # 2678F
North Coast Part # 13532


  • Housings and finishes (motor assembly and grille) sold separately.

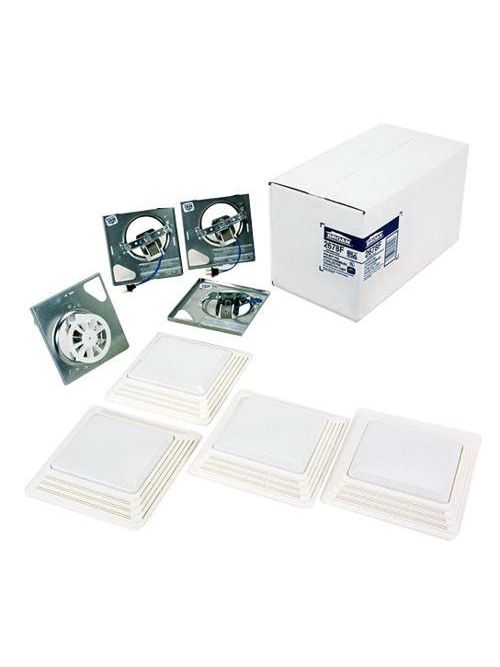

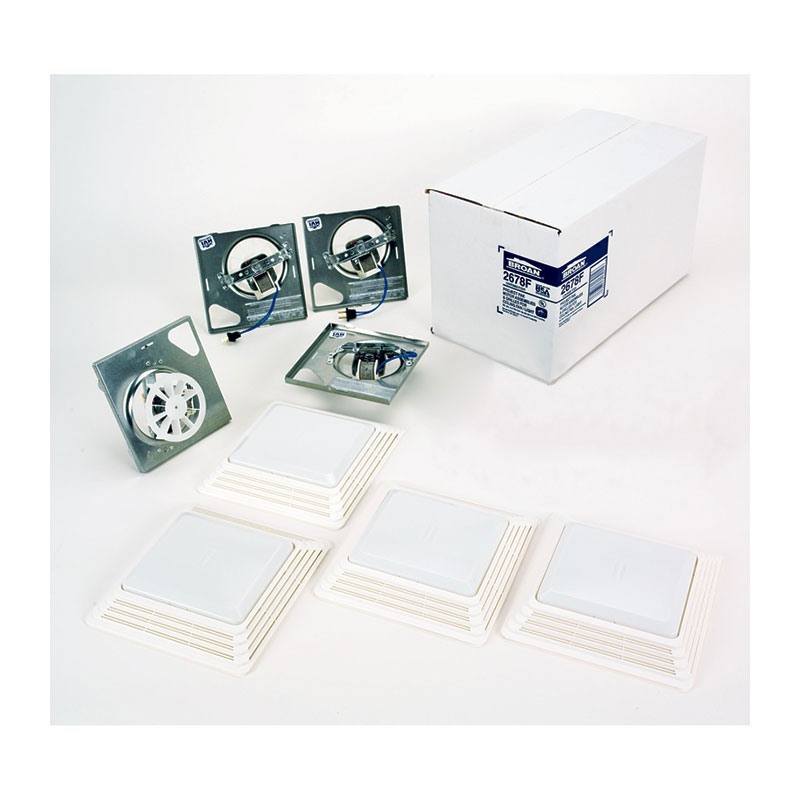

  • The finish kit includes the motor plate, motor, wheel and grille.
  • 50/70 CFM at 2.5/4.0 Sones reduces humidity or odors in bathrooms up to 45/65 square feet to help make your surroundings more comfortable
  • Fan has a galvanized steel housing with double-strength mounting flanges and can be Ceiling or Wall mounted, ducted vertically (horizontally) to a roof cap (wall cap)
  • cULus Listed for use over tub or shower with a GFCI circuit so you can control ventilation by locating your fan exactly where you need it the most
  • Combine with model 1776H Rough-In Housing Kit


  • CFM: 50
  • Recommended Room Size (Sq. Ft.): 45
  • Sones: 2.5
  • Light Bulb Wattage: 100
  • Recommended Light Bulb Type: A19
  • Light Bulb Quantity: 1
  • Room Side Installation: No
  • Duct Diameter: 4"
  • Housing Height: 5-3/4"
  • Housing Length: 8"
  • Housing Width: 8-1/4"
  • Grille Length: 10-5/8"
  • Rated Amps: 1.6
  • Watts: 42.4
  • Warranty: 1 year limited
  • Lighting Type: Incandescent
  • Light Bulbs Included: No
  • Nightlight: No
  • Grille Width: 11-1/8"
  • Minimum Construction Space Required: 2" x 6"
  • Motor Engineered for Continuous Operation: No
  • Radiation Damper Available: No
  • Voltage: 120
  • UL Listed: Yes


UPC 02671513915
Item Long Description To simplify installation, a Project Pack is available with multiple fan housings. When drywall work and painting is complete, the fan components needed to finish the job are available in a separate packages and model numbers. The finish kit allow motor/blower and grille assemblies to be ordered separately, nearer project completion, to help avoid losing, damaging or having to store components.
GTiN 00026715139156
Type Project Finish Pack
Applications For Use With 2677H Or 3677H Housing Pack
Family Brand Name Broan-Nutone
Grille Material Polymeric
Sub Brand Ultra
Warranty Length 1 yr
Voltage 120 Volt
Standard HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Circuit
Wattage 42.4 Watt
Light Type Incandescent
Bulb Included No
Amperage 1.6 Amp
Grille Width 11-1/8 in
Duct Size 4 in
Grille Length 10-5/8 in
Airflow Rate 50 CFM
Housing Height 5-3/4 in
Housing Width 8-1/4 in
