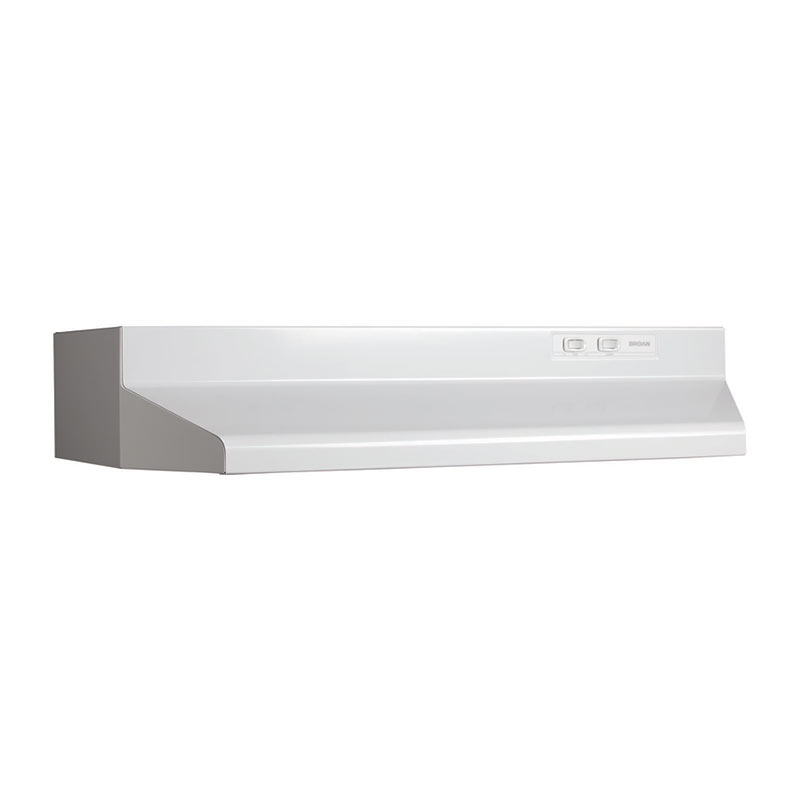

BROAN 423601 White Range Hood
Product image thumbnail 0
Product image thumbnail 1
$173.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # 423601
North Coast Part # 419859

Features

  • Installs as 7" round ducted only
  • 190 CFM, 6.0 Sone (vertical discharge) performance – HVI 2100 Certified
  • Dishwasher-safe aluminum grease filter
  • A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
  • Built-in 7" adapter
  • BP87 dampers sold separately
  • This range hood can work in an ADA-compliant application

Specifications

  • CFM: 190
  • Sones: 6
  • Color Finish: White
  • Product Depth: 17-1/2"
  • Product Height: 6"
  • Product Width: 30"
  • Light Number Of Levels: 1
  • Light Type: Incandescent
  • Nightlight Or Nightlight Setting: No
  • Light Bulb Wattage: 75W
  • Light Bulb Recommended Type: A19
  • Light Bulbs Included: No
  • Light Bulb Quantity: 1
  • Filter Quantity: 1
  • Filter Type: Aluminum
  • Heat Sentry: No
  • Motor Number Of Speeds: 2
  • Boost Mode: No
  • Built In Timer: No
  • Remote Operation Capable: No
  • ADA Compliance: Yes
  • Damper Included: No
  • Amperage: 2
  • Rated Voltage: 120
  • Wattage: 240
  • Switch Control Type: Rocker
  • Warranty: 1 Year
  • UL Listed: Yes
  • Duct Connector Size: 7" Round
  • Duct Direction: Vertical
  • Duct Shape: Round
  • Duct Diameter: 7"
  • HVI Certified: Yes
  • ENERGY STAR® certified product: No

Overview

UPC 02671500228
Item Long Description The 42000 series offers an effective and durable under-the-cabinet hood solution for vertical discharge installations. The range hood is designed for 7 in. round vertical duct attachment. The hood comes in a variety of appliance matching colors and widths, and features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes built-in 7 in. duct adapter.
GTiN 00026715002283
Family Brand Name BROAN-NUTONE
Finish White
Warranty Length 1 yr
Width 30 in
Voltage 120 Volt
Depth 17-1/2 in
Height 6 in
Wattage 75 Watt
Switch Type Rocker
Light Type Incandescent
Bulb Included No
Amperage 2 Amp
Duct Size 7 in
Airflow Rate 190 CFM
Duct Shape Round
Filter Type Aluminum
