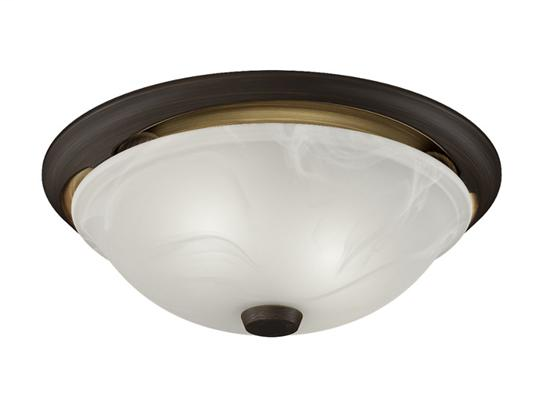

BROAN 772RBNT Decorative Oil-Rubbed
$200.60/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # 772RBNT
North Coast Part # 1005904

Overview

  • 80 CFM, 2.0 Sones
  • Oil-rubbed bronze finish with white Alabaster glass
  • ENERGY STAR qualified
  • Fits in 2" x 6" ceiling construction
  • Uses two 13W, GU24 based, 3500K fluorescent bulbs (included)
  • HVI Certification gives you confidence in performance specs
  • UL Listed, Type IC, 1-year warranty
  • Not for use over bathtubs or showers
  • Sturdy key-holed mounting brackets for quick, accurate installation
  • Tapered, polymeric duct fitting with built-in backdraft damper for easy, positive duct connection and no metallic clatter

Specifications

  • CFM @ 0.25": 68
  • Color: White
  • Watts @ 0.25": N/A
  • Watts @ 0.1": 24.9
  • ENERGY STARĀ® Most Efficient 2015: No
  • Light Bulb Quantity: 2
  • Motion Sensing: No
  • Grille Width: N/A
  • Rated Watts: 24.9
  • Grille Finish: Oil Rubbed Bronze
  • Wall Installation: No
  • Rated Amps: 0.8
  • Product Weight (Pounds): 7.4
  • Project Pack: No
  • Duct Size: 4"
  • Housing Dimension LxWxH: 8" x 8-1/4" x 5-3/4"
  • Humidity Sensing: No
  • Globe Glass Color: White Alabaster
  • Watts @ 0.1" (Max CFM): 24.9
  • CSA: No
  • Ceiling Installation: Yes
  • Light Bulb Wattage: 13
  • Nightlight: No
  • cUL Listed: Yes
  • ENERGY STARĀ® qualified: Yes
  • Housing Length: 8"
  • Housing Width: 8-1/4"
  • Minimum construction space required: 2" x 6"
  • Grille Length: N/A
  • Light Bulbs Included: Yes
  • Rated Sones: 2
  • Sones 6" to 4" reducer: N/A
  • CFM @ 0.10": 80
  • HVI Certified: Yes
  • Motor engineered for continuous operation: No
  • Baths up to () Sq Ft: 75
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • Duct Direction: Horizontal
  • Grille Diameter: 13-1/2"
  • Housing Height: 5-3/4"
  • Heater Wattage: N/A
  • Lighting Type: Fluorescent
  • Rated Sones - Vertical: N/A
  • Warranty: 1 Year

Video Links

Resources

Overview

UPC 02671520041
GTiN 00026715200412
Warranty Length 1 yr
Color White
Weight 7.4 lb
Wattage 13 Watt
Family Brand Name Broan-Nutone
Rated Sones 2
Light Type Fluorescent
Amperage 0.8 Amp
Housing Length 8 in
Duct Size 4 in
Housing Height 5-3/4 in
Housing Width 8-1/4 in
Nightlight No
