Broan 778WH 0.5 Amp 120 Volt 25.4 W 80 CFM 2 Sones 13-1/8 Inch White Grill Ventilation Fan
Product image thumbnail 0
Product image thumbnail 1
$234.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # 778WH
North Coast Part # 683350

Overview

  • 80 CFM
  • 2.0 Sones HVI Certified
  • 68 CFM at 0.25" static pressure
  • ENERGY STAR Qualified Efficient 26 watt fluorescent lighting (2-13 watt GU24 bulbs included)

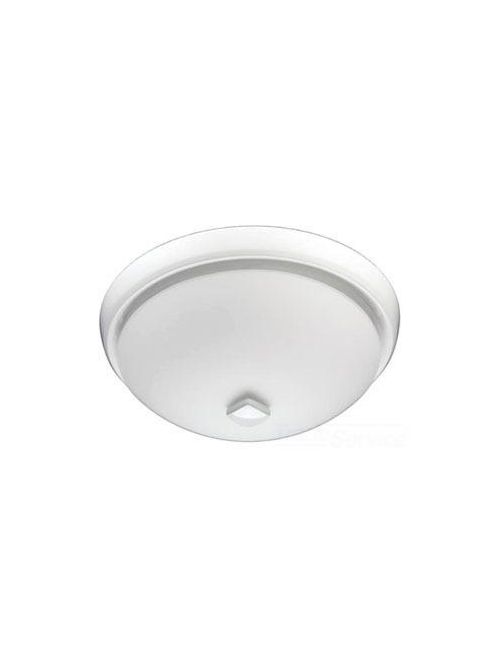

  • White finish with white opal glass globe
  • Fits in 2" x 6" ceiling construction; hanger bars included
  • 4" Ducting
  • Housing dimension: 8-1/4" x 8" x 5-3/4"

Specifications

  • Watts @ 0.25": N/A
  • Globe Glass Color: N/A
  • Light Bulb Wattage: 26 Watts (2-13W)
  • Rated Sones - Vertical: N/A
  • Light Bulb Quantity: 2
  • Rated Amps: 0.5
  • Duct Size: 4"
  • Housing Height: 5-3/4"
  • Grille Length: 13-1/8" Dia
  • Humidity Sensing: No
  • Color: White/White Opal Glass Shade
  • Rated Watts: 25.4
  • HVI Certified: Yes
  • Heater wattage: N/A
  • Lighting Type: Fluorescent
  • Duct Direction: Horizontal
  • ENERGY STARĀ® qualified: Yes
  • Material: Metal
  • Minimum construction space required: 2x6
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • CFM @ 0.25": 68
  • cUL Listed: Yes
  • Watts @ 0.1": 25.4
  • Nightlight: No
  • Housing Dimension LxWxH: 8" x 8-1/4" x 5-3/4"
  • Project Pack: No
  • Ceiling Installation: Yes
  • CSA: No
  • CFM @ 0.125": N/A
  • Warranty: 1 Year
  • Housing Length: 8"
  • CFM @ 0.10": 80
  • Baths up to () Sq Ft: 75
  • Grille Width: 13-1/8" Dia
  • Motor engineered for continuous operation: No
  • Product Weight: 12 lbs
  • Sones: 2.0
  • Light Bulbs Included: Yes
  • Grille Finish: White
  • Housing Width: 8-1/4"
  • Wall Installation: No

Video Links

Resources

Overview

UPC 02671519744
GTiN 00026715197446
Length 8 in
Finish White
Warranty Length 1 yr
Width 8-1/4 in
Color White
Material Metal
Height 5-3/4 in
Weight 12 lb
Wattage 2-13 Watt
Family Brand Name BROAN
Sones 2.0 Sone
Energy Saver Yes
Amperage 0.5 Amp
Grille Width 13-1/8 in
Duct Size 4 in
Grille Length 13-1/8 in
