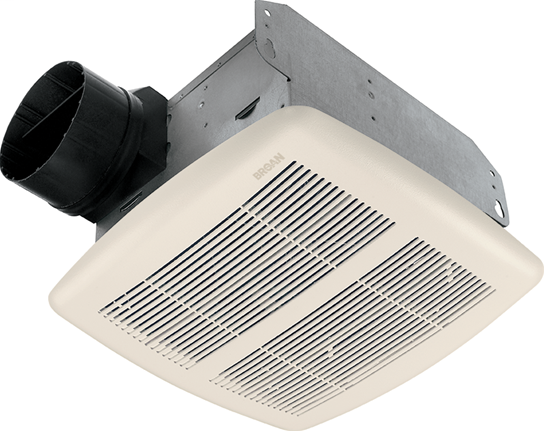

Broan 784 80 CFM Energy Star Qualified Ventilation Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$140.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # 784
North Coast Part # 683351

Overview

  • 80 CFM
  • 2.0 Sones HVI Certified
  • 65 CFM at 0.25" static pressure
  • ENERGY STAR Qualified
  • Made in USA
  • 4" Ducting
  • Fits in 2" x 6" ceiling construction
  • UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
  • Project packs available
  • Housing dimension: 8 1/4" x 8" x 5-3/4"

Specifications

  • Duct Direction: Horizontal
  • Housing Length: 8"
  • Motor engineered for continuous operation: Yes
  • Rated Sones - Vertical: N/A
  • CFM @ 0.10": 80
  • Duct Size: 4"
  • Watts @ 0.1": 26.1
  • Material: Polymeric
  • Warranty: 1 Year
  • CSA: No
  • Minimum construction space required: 2x6
  • Lighting Type: No Light
  • Sones: 2.0
  • Grille Finish: White Polymeric
  • Grille Width: 11-3/8"
  • Wall Installation: No
  • cUL Listed: Yes
  • Humidity Sensing: No
  • Baths up to () Sq Ft: 75
  • Globe Glass Color: N/A
  • Housing Width: 8-1/4"
  • Nightlight: No
  • Product Weight: 7 lbs
  • Heater wattage: N/A
  • Housing Dimension LxWxH: 8" x 8-1/4" x 5-3/4"
  • Ceiling Installation: Yes
  • Color: White
  • Grille Length: 11-1/8"
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Project Pack: No
  • Watts @ 0.25": N/A
  • CFM @ 0.125": N/A
  • ENERGY STARĀ® qualified: Yes
  • Light Bulb Wattage: N/A
  • Rated Amps: 0.3
  • CFM @ 0.25": 65
  • HVI Certified: Yes
  • Light Bulb Quantity: 0
  • Light Bulbs Included: No
  • Rated Watts: 26.1
  • Housing Height: 5-3/4"

Video Links

Resources

Overview

GTiN 00026715194193
Length 8 in
Finish White Polymeric
Warranty Length 1 yr
Width 8-1/4 in
Color White
Type Ceiling Mount Fan
Material Polymeric
Applications For Bathrooms Up To 75 SQ-FT
Height 5-3/4 in
Weight 7 lb
Standard C/US UL Listed,Energy Star Certified,HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit
Wattage 26.1 Watt
Family Brand Name Broan-Nutone
Sones 2.0 Sone
Energy Saver Yes
Amperage 0.3 Amp
Grille Width 11-3/8 in
Duct Size 4 in
Grille Length 11-1/8 in
Grille Material Polymeric
Product UPC 02671519419
