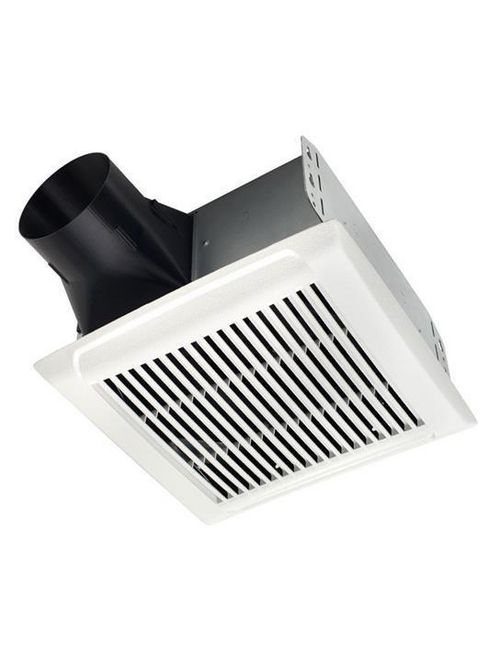

Broan AEN110 Bath Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$115.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # AEN110
North Coast Part # 1135039

Features

  • 110 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 105 square feet, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
  • With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50%* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier
  • ENERGY STAR® Certified
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

Specifications

  • Bathrooms up to (X) Square Feet: 105
  • Ceiling Installation: Yes
  • CFM @ 0.10": 110
  • CFM @ 0.25": 92
  • Color: White
  • CSA: No
  • cUL Listed: No
  • Duct Direction: Horizontal
  • Duct Size: 4"
  • ENERGY STAR® certified product: Yes
  • Globe Color: N/A
  • Grille Finish: White Polymeric
  • Grille Length: 11-1/4"
  • Grille Width: 12"
  • Heater Wattage: N/A
  • Housing Dimension LxWxH: 9-1/4" x 10" x 5-3/4"
  • Housing Height: 5-3/4"
  • Housing Length: 9-1/4"
  • Housing Width: 10"
  • Humidity Sensing: No
  • HVI Certified: Yes
  • Light Bulb Quantity: N/A
  • Light Bulb Wattage: N/A
  • Light Bulbs Included: No
  • Lighting Type: No Light
  • Minimum construction space required: 2" x 6"
  • Motion Sensing: No
  • Motor engineered for continuous operation: Yes
  • Nightlight: No
  • Product Weight (Pounds): 10.0
  • Project Pack: No
  • Radiation Damper Available: Yes
  • Rated Amps: 0.3
  • Rated Sones: 1.0
  • Rated Watts: 23.4
  • Room-Side Installation: Yes
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Wall Installation: No
  • Warranty: 3 Years
  • Watts @ 0.1": 23.4

Accessories

  • MHB4
  • MMG
  • MQF4
  • RDM1
  • RDMWT
  • 82W

Overview

UPC 02671523530
Family Brand Name Broan-Nutone
