BROAN E5490SS 27-9/16" x 35-7/16" S
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # E5490SS
North Coast Part # 426999


  • Multi-speed slide control allows you to choose the perfect speed to keep up with whatever you are cooking
  • Four 20 watt halogen lights (included) provide unparalleled lighting over and around the cooktop
  • Dishwasher-safe aluminum filters ensure your hood will capture grease at optimum levels with regular cleaning
  • Telescopic flue accommodates 8' to 9' ceilings -- optional flue extension available for ducted and non-ducted applications
  • Internal blower delivers 480 CFM (less than 300 CFM when using reducer)
  • Non-ducted kit for indoor recirculation (sold separately); order replacement filter to keep the kitchen fresh
  • Heat Sentry™ detects excessive heat and adjusts blower speed to High automatically to prolong product life


  • CFM: 480
  • Sones: 9.5
  • Color Finish: Stainless Steel
  • Product Depth: 27-9/16"
  • Product Height: 35" min - 46" max
  • Product Width: 35-7/16"
  • Light Number Of Levels: 1
  • Light Type: Halogen
  • Nightlight Or Nightlight Setting: No
  • Light Bulb Wattage: 20W
  • Light Bulb Recommended Type: JC G4
  • Light Bulbs Included: Yes
  • Light Bulb Quantity: 4
  • Filter Quantity: 3
  • Filter Type: Aluminum
  • Heat Sentry: Yes
  • Motor Number Of Speeds: 3
  • Boost Mode: No
  • Built In Timer: No
  • Remote Operation Capable: No
  • ADA Compliance: No
  • Accommodates Ceiling Height: 8' - 9' Opt. 10'
  • Damper Included: Yes
  • Non-ducted Filter Included: No
  • Amperage: 3.56
  • Rated Voltage: 120
  • Wattage: 427
  • Switch Control Type: Slide
  • Non-Ducted Recirculation Capable: Yes
  • Warranty: 1 Year
  • UL Listed: Yes
  • Duct Connector Size: 6" Round
  • Duct Direction: Vertical
  • Duct Shape: Round
  • Duct Diameter: 6"
  • HVI Certified: Yes
  • ENERGY STAR® certified product: No


UPC 02671517438

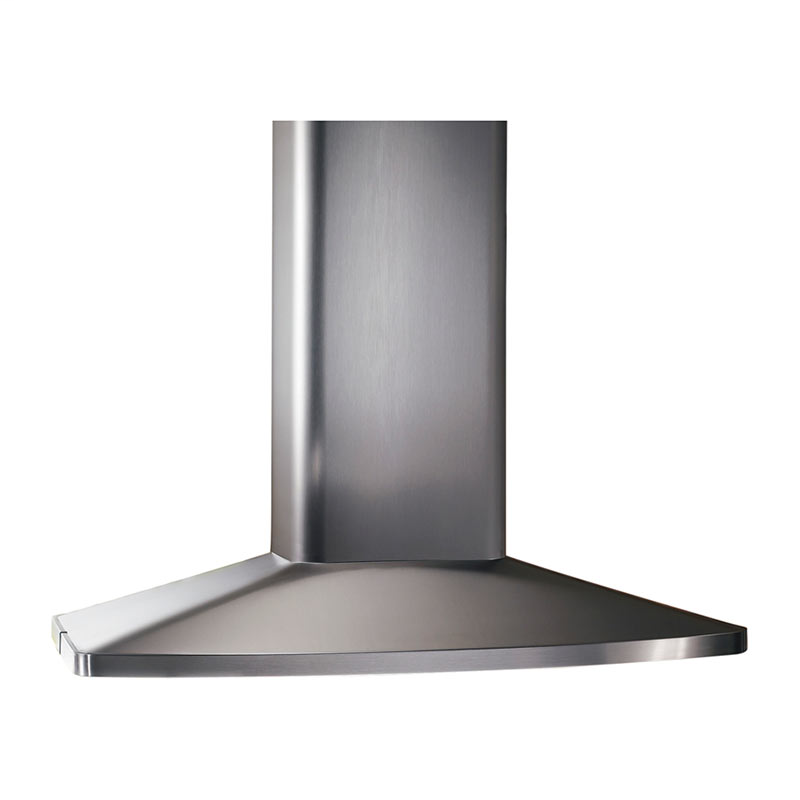

Item Long Description Elegant symmetry from every angle. Graceful curves and a low-profile design make this island hood at home in any dcor.
GTiN 00026715174386
Family Brand Name BROAN-NUTONE
Finish Stainless Steel
Warranty Length 1 yr
Width 35-7/16 in
Voltage 120 Volt
Depth 27-9/16 in
Height 35 in
Wattage 20 Watt
Switch Type Slide
Light Type Halogen
Bulb Included Yes
Amperage 3.56 Amp
Duct Size 6 in
Airflow Rate 480 CFM
Duct Shape Round
Filter Type Aluminum
