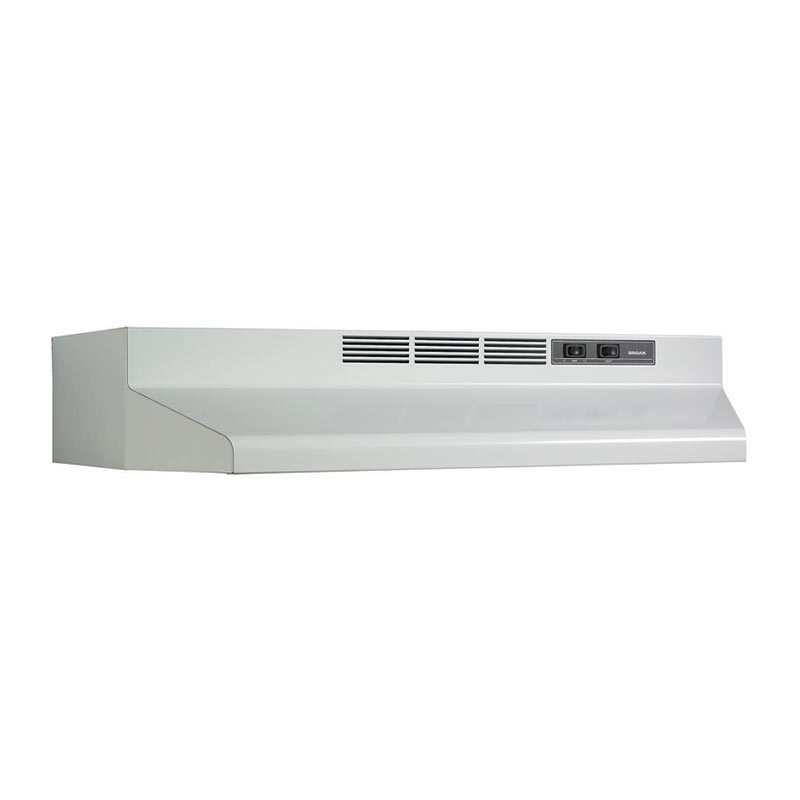

BROAN F403001 White Range Hood
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # F403001
North Coast Part # 419860


  • Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted. Non-Ducted Filter sold separately.
  • 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance – HVI 2100 Certified
  • Dishwasher-safe aluminum grease filter
  • A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
  • Includes 3-1/4" x 10" damper/adapter and 7" round adapter
  • BP87 dampers sold separately
  • This range hood can work in an ADA-compliant application


  • CFM: 160
  • Sones: 6.5
  • Color Finish: White
  • Product Depth: 17-1/2"
  • Product Height: 6"
  • Product Width: 30"
  • Light Number Of Levels: 1
  • Light Type: Incandescent
  • Nightlight Or Nightlight Setting: No
  • Light Bulb Wattage: 75W
  • Light Bulb Recommended Type: A19
  • Light Bulbs Included: No
  • Light Bulb Quantity: 1
  • Filter Quantity: 1
  • Filter Type: Aluminum
  • Heat Sentry: No
  • Motor Number Of Speeds: 2
  • Boost Mode: No
  • Built In Timer: No
  • Remote Operation Capable: No
  • ADA Compliance: Yes
  • Damper Included: Yes
  • Non-ducted Filter Included: No
  • Amperage: 2.5
  • Rated Voltage: 120
  • Wattage: 300
  • Switch Control Type: Rocker
  • Non-Ducted Recirculation Capable: Convertible built-in
  • Warranty: 1 Year
  • UL Listed: Yes
  • Duct Connector Size: 3-1/4" x 10" or 7" Round
  • Duct Direction: Horizontal/Vertical
  • Duct Shape: Rectangular or Round
  • Duct Diameter: 7"
  • Duct Height Rectangular: 3-1/4"
  • Duct Width Rectangular: 10"
  • HVI Certified: Yes
  • ENERGY STAR® certified product: No


UPC 02671514297
Item Long Description The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.
GTiN 00026715142972
Family Brand Name BROAN-NUTONE
Finish White
Warranty Length 1 yr
Width 30 in
Voltage 120 Volt
Depth 17-1/2 in
Height 6 in
Wattage 300 Watt
Switch Type Rocker
Light Type Incandescent
Bulb Included No
Amperage 2.5 Amp
Duct Size 7 in
Airflow Rate 160 CFM
Duct Shape Rectangular Or Round
Filter Type Aluminum
